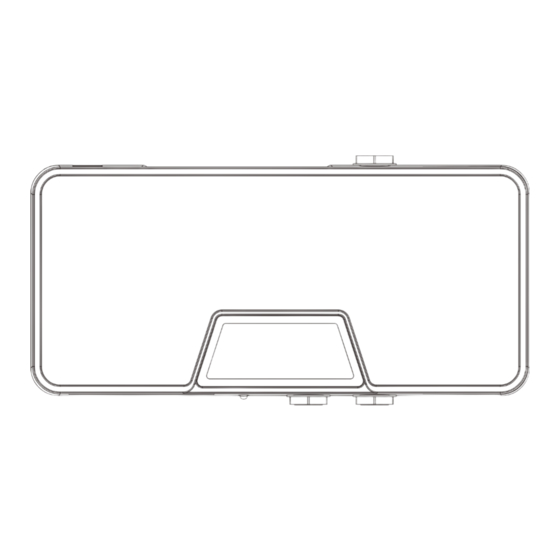

Hotone TUNERPRESS SP-30T Quick Start Manual

Buffer Setting & USB Interface

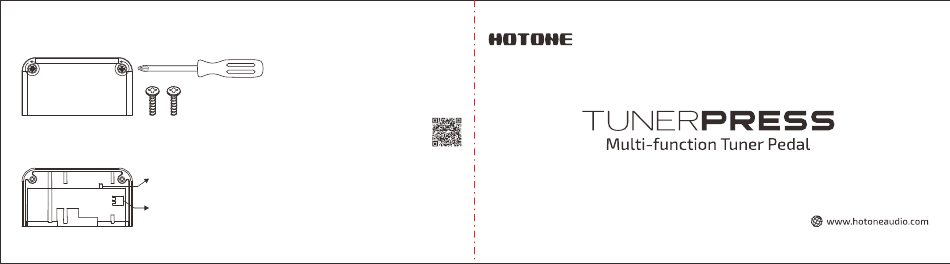

1. Remove two screws from the compartment with a phillips screwdriver.
2. Remove the compartment cover.
You can choose whether to enable the buffer circuit
by using the two-position switch shown in the figure.
OFF ON
Buffer
USB interface: used to connect to the computer for
firmware update.
※ Follow the software instruction to update the firemware.
Specifications
Pot Resistance (EXP out): 10k Ohms
Input Impedance: 1M Ohms/10k Ohms
Output Impedance: 1k Ohms
Current Consumption: Max 70mA
Dimensions: 81mm (W) x 162mm (D) x 61mm (H)
Weight: 606g
Thank you for purchasing a Hotone product.
Scan the QR code for manuals in other languages.
感谢您购买Hotone产品，
请扫描上⽅⼆维码获取其他语⾔说明书。
※ In the interest of product improvement, the specifications and/or
the content of products (including but not limited to appearances,
packaging design, manual content, accessories, size, parameters
and display screen), are subject to change without prior notice.
Please check with local supplier for exact offers. Specifications and
features (including but not limited to appearances, colors and size)
may vary by model owing to environmental factors, and all images
are illustrative.
