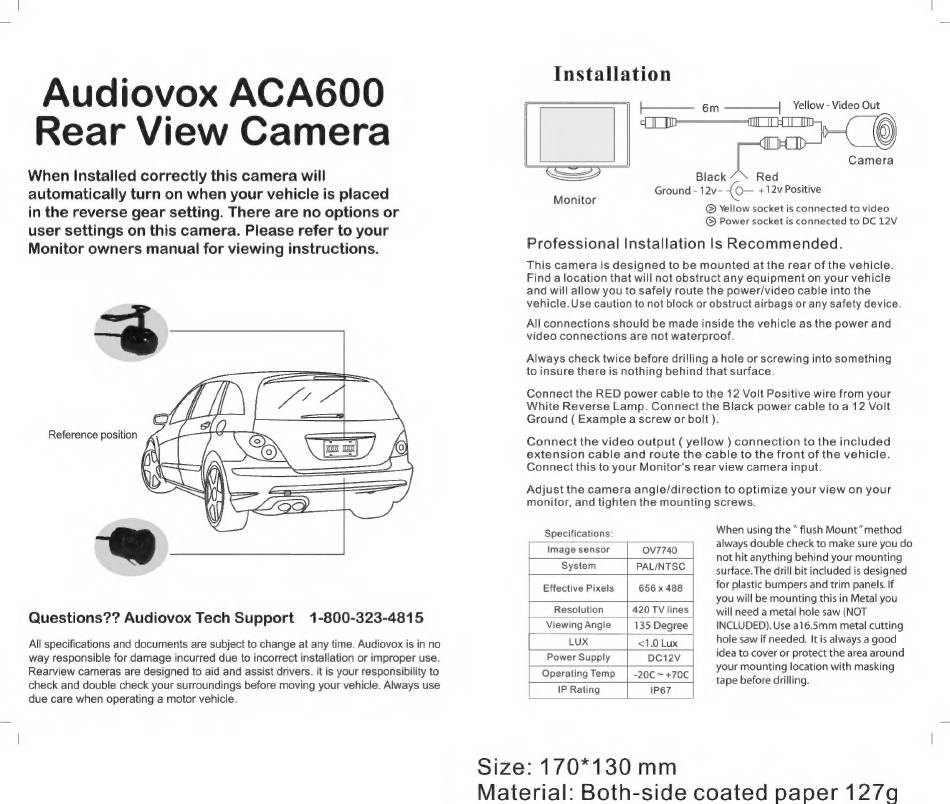

Audiovox ACA600 Quick Start Manual

Audiovox ACA600
Rear View Camera
When Installed correctly this camera will
automatically turn on when your vehicle is placed
in the reverse gear setting. There are no options or
user settings on this camera. Please refer to your
Monitor owners manual for viewing instructions.
Reference position
Questions?? Audiovox Tech Support 1-800-323-4815
All specifications and documents are subject to change at any time. Audiovox is in no
way responsible for damage incurred due to incorrect installation or improper use.
Rearview cameras are designed to aid and assist drivers. it is your responsibility to
check and double check your surroundings before moving your vehicle. Always use
due care when operating a motor vehicle.
Installation
H 6m Yellow - Video Out
{D Il
q
= I Camera
SS Black /\ Red
Ground - 12v- {œ +12v Positive
© Yellow socket is connected to video
© Power socket is connected to DC 12V
Monitor
Professional Installation Is Recommended.
This camera is designed to be mounted at the rear of the vehicle.
Find a location that will not obstruct any equipment on your vehicle
and will allow you to safely route the power/video cable into the
vehicle. Use caution to not block or obstruct airbags or any safety device.
All connections should be made inside the vehicle as the power and
video connections are not waterproof.
Always check twice before drilling a hole or screwing into something
to insure there is nothing behind that surface.
Connect the RED power cable to the 12 Volt Positive wire from your
White Reverse Lamp. Connect the Black power cable to a 12 Volt
Ground ( Example a screw or bolt ).
Connect the video output ( yellow ) connection to the included
extension cable and route the cable to the front of the vehicle.
Connect this to your Monitor's rear view camera input.
Adjust the camera angle/direction to optimize your view on your
monitor, and tighten the mounting screws.
Specifications: When using the ` flush Mount" method
Image sensor ov7740 always double check to make sure you do
not hit anything behind your mounting
System PAL/NTSC surface. The drill bit included is designed
Effective Pixels 656 x 488 for plastic bumpers and trim panels. If
you will be mounting this in Metal you
Resolution 420 TV lines will need a metal hole saw (NOT
Viewing Angle 135 Degree INCLUDED). Use a16.5mm metal cutting
LUX <1.0 Lux hole saw if needed. It is always a good
Power Supply DC12V idea to cover or protect the area around
Operating Tem 506 ~ 4700 your mounting location with masking
p o EMR I S tape before drilling.
IP Rating IP67
