Summary of Contents for Harman JBL Professional 104BT

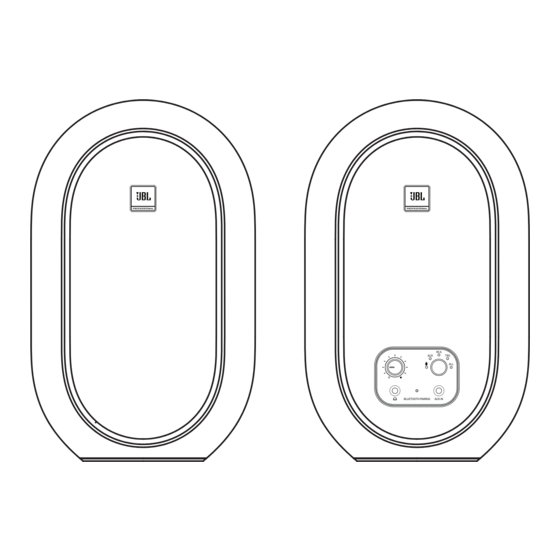

  • Page 1 User's Guide BLUETOOTH PAIRING AUX IN 104SET -BT 104SET -BT Extension Monitor Master Monitor...
  • Page 2 Product Registration Thank you for your purchase of JBL 104SET-BT Reference Monitors To receive important information as it becomes available, please take a moment to register your speakers at www.jblpro.com/registration .
  • Page 3: Table Of Contents

    Table of Contents Section 1: Important Safety Instructions ....................... 4 Section 2: Introduction ............................5 JBL Coaxial Transducer ..........................5 Features ................................5 JBL Professional Reliability ..........................5 Section 3: Setting Up Your System ........................6 Included Items ..............................6 Placement ...............................
  • Page 4: Section 1: Important Safety Instructions

    Hereby, Harman Professional declares that the equipment type JBL 104SET-BT Reference Monitors, bearing the CE Mark are in WARNING: To reduce the risk of fire or electrical shock, do not expose this apparatus to rain compliance with the following: or moisture.
  • Page 5: Section 2: Introduction

    Section 2: Introduction Congratulations on your purchase of JBL Professional 104SET-BT Reference Monitors. These monitors meet JBL’s high standards for accuracy and long-term reliability in demanding applications. All 104SET-BT Reference Monitors incorporate JBL Professional transducer technologies to provide accurate frequency response, low frequency extension and impressive output for their compact size.
  • Page 6: Section 3: Setting Up Your System

    Section 3: Setting Up Your System INCLUDED ITEMS • 1 x 104SET-BT Master Monitor • 1 x 104SET-BT Extension Monitor • 1 x Extension Monitor Connection Wire • 1 x Audio Connection Cable: 3.5 mm (1/8") mini TRS stereo plug to dual RCA plug •...
  • Page 7: Audio Connections

    AUDIO CONNECTIONS NOTE: Before making audio connections, ensure the VOLUME control on the 104SET-BT MASTER MONITOR is set to the full counter-clockwise (minimum) position. The 104SET-BT MASTER MONITOR is equipped with 6 mm (1/4") TRS inputs for connection of balanced and unbalanced professional audio products with high-level outputs (up to +4 dBu nominal), such as professional computer audio interfaces, mixing consoles and audio production equipment.
  • Page 8: Section 4: Features And Functions

    Section 4: Features and Functions Master Monitor Extension Monitor Front Rear Rear BLUETOOTH PAIRING AUX IN COAXIAL TRANSDUCER (SPEAKER) – Separate high and low frequency transducers are mounted in a single frame to create a full range speaker that reproduces the entire audio range. INPUT SELECT –...
  • Page 9 Master Monitor Extension Monitor Front Rear Rear BLUETOOTH PAIRING AUX IN 6.5 MM (1/4”) TRS INPUTS – Connect professional equipment to these inputs using balanced or unbalanced 6.5 mm (1/4”) cables. NOTE: Signal connected to the TRS (Tip Ring Sleeve) input labelled "MASTER" will be reproduced by the MASTER MONITOR.
  • Page 10: Section 5: Standby Mode

    Section 5: Standby Mode The JBL 104SET-BT Reference Monitors are equipped with a low-power "Standby Mode” that automatically reduces the power consumption when signal is not detected for a period of 19 minutes. Once in Standby Mode, normal operation is restored when signal is detected. It is normal to experience a momentary delay prior to resumption of audio.
  • Page 11: Section 6: Troubleshooting

    Section 6: Troubleshooting Issue: There is no sound from the monitors. • Confirm the power cable is connected to the MASTER MONITOR and the POWER switch is set to the ON position. • Make sure the POWER LED is illuminated on the front of the MASTER MONITOR. •...
  • Page 12: Section 7: Specifications

    Section 7: System Input Type: 1/8" Aux, RCA, 1/4" TRS balanced System Output Type: 1/8" stereo headphone with auto speaker mute System Input Selector: Bluetooth, AUX, RCA, TRS, ALL LF Transducer: 4.5 in (118 mm) HF Transducer: 0.75 in (19 mm), soft dome Enclosure Type: Ported Crossover: 1725 Hz, 1st order Amplifier Power: 60 W (30 W each speaker), Class D...
  • Page 13: Section 8: Graphs

    Section 8: Graphs FREQUENCY RESPONSE...
  • Page 14: Section 9: Contact Information

    Section 9: Contact Information MAILING ADDRESS: JBL Professional 8500 Balboa Blvd. Northridge, CA 91329 SHIPPING ADDRESS: JBL Professional 8370 Balboa Blvd., Dock D Northridge, CA 91329 (Do not return product to this address without first obtaining prior authorization from JBL) CUSTOMER SERVICE: Monday through Friday 8:00am - 5:00pm...
  • Page 15: Section 10: Warranty Information

    Section 10: Warranty Information The JBL Limited Warranty on professional loudspeaker products (except for enclosures) remains in effect for five years from the date of the first consumer purchase. JBL amplifiers are warranted for three years from the date of original purchase. Enclosures and all other JBL products are warranted for two years from the date of original purchase.
  • Page 16 Issue date: 10/2019...
