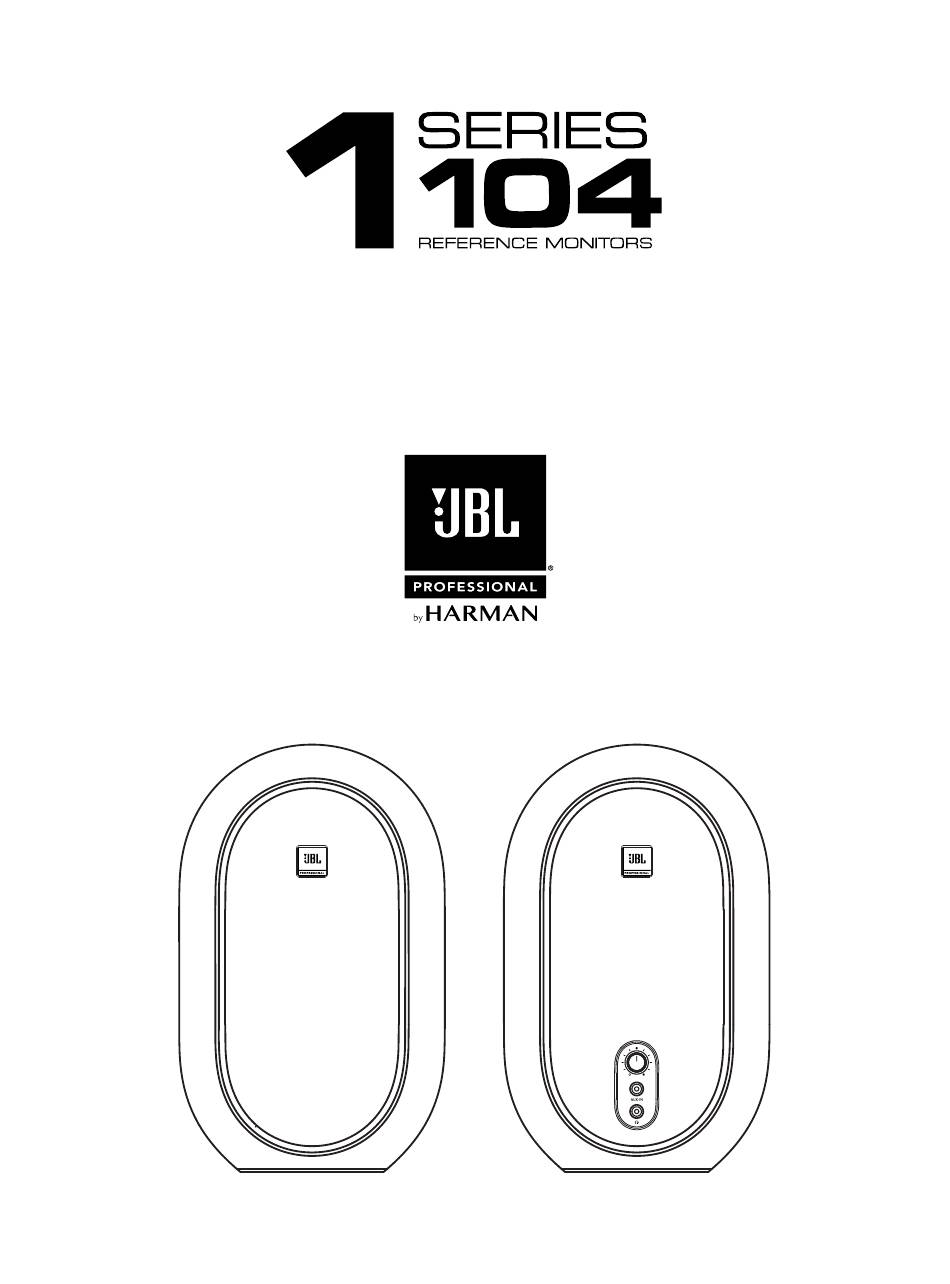

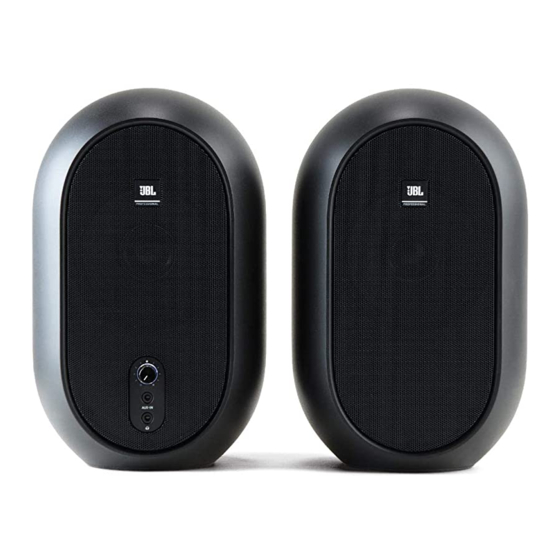

- Page 1 User's Guide Extension Monitor Master Monitor...
- Page 2 Product Registration Thank you for your purchase of JBL 104 Reference Monitors To receive important information as it becomes available, please take a moment to register your speakers at www.jblpro.com/registration.
-
Page 3: Table Of Contents
Table of Contents Section 1: Important Safety Instructions ��������������������������������������������������������������������������������������������������������������� 4 Section 2: Introduction ������������������������������������������������������������������������������������������������������������������������������������������� 5 JBL Coaxial Transducer ..........................5 Features ................................5 JBL Professional Reliability ..........................5 Section 3: Setting Up Your System ������������������������������������������������������������������������������������������������������������������������ 6 Included Items ..............................6 Placement ............................... -
Page 4: Section 1: Important Safety Instructions
EU COMPLIANCE INFORMATION: within the product’s enclosure that may be of sufficient magnitude to constitute Hereby, Harman Professional declares that the equipment type JBL a risk of electrical shock to persons. 104 Reference Monitors, bearing the CE Mark are in compliance with... -
Page 5: Section 2: Introduction
Section 2: Introduction Congratulations on your purchase of JBL Professional 104 Reference Monitors. These monitors meet JBL’s high standards for accuracy and long-term reliability in demanding applications. All 104 Reference Monitors incorporate JBL Professional transducer technologies to provide accurate frequency response, low frequency extension and impressive output for their compact size. -
Page 6: Section 3: Setting Up Your System
Section 3: Setting Up Your System INCLUDED ITEMS • 1 x 104 Master Monitor • 1 x 104 Extension Monitor • 1 x Extension Monitor Connection Wire • 1 x Audio Connection Cable: 3.5 mm (1/8") mini TRS stereo plug to dual RCA plug •... -
Page 7: Audio Connections
AUDIO CONNECTIONS NOTE: Before making audio connections, ensure the VOLUME control on the 104 MASTER MONITOR is set to the full counter-clockwise (minimum) position. The 104 MASTER MONITOR is equipped with 6 mm (1/4") TRS inputs for connection of balanced and unbalanced professional audio products with high-level outputs (up to +4 dBu nominal), such as professional computer audio interfaces, mixing consoles and audio production equipment. -
Page 8: Section 4: Features And Functions
Section 4: Features and Functions Master Monitor Extension Monitor Front Rear Rear COAXIAL TRANSDUCER (SPEAKER) – Separate high and low frequency transducers are mounted in a single frame to create a full range speaker that reproduces the entire audio range. POWER INDICATOR –... - Page 9 Master Monitor Extension Monitor Front Rear Rear 6.5 MM (1/4”) TRS INPUTS – Connect professional equipment to these inputs using balanced or unbalanced 6.5 mm (1/4”) cables. NOTE: Signal connected to the TRS (Tip Ring Sleeve) input labelled "MASTER" will be reproduced by the MASTER MONITOR.
-
Page 10: Section 5: Standby Mode
Section 5: Standby Mode The JBL 104 Reference Monitors are equipped with a low-power "Standby Mode” that automatically reduces the power consumption when signal is not detected for a period of 19 minutes. Once in Standby Mode, normal operation is restored when signal is detected. It is normal to experience a momentary delay prior to resumption of audio. -
Page 11: Section 6: Troubleshooting
Section 6: Troubleshooting Issue: There is no sound from the monitors. • Confirm the power cable is connected to the MASTER MONITOR and the POWER switch is set to the ON position. • Make sure the POWER LED is illuminated on the front of the MASTER MONITOR. •... -
Page 12: Section 7: Specifications
Section 7: Specifications System Input Type: 1/8" Aux, RCA, 1/4" TRS balanced System Output Type: 1/8" stereo headphone with auto speaker mute LF Transducer: 4.5 in (118 mm) HF Transducer: 0.75 in (19 mm), soft dome Enclosure Type: Ported Crossover: 1725 Hz, 1st order Amplifier Power: 60 W (30 W each speaker), Class D... -
Page 13: Section 8: Graphs
Section 8: Graphs FREQUENCY RESPONSE... -
Page 14: Section 9: Contact Information
Section 9: Contact Information MAILING ADDRESS: JBL Professional 8500 Balboa Blvd. Northridge, CA 91329 SHIPPING ADDRESS: JBL Professional 8370 Balboa Blvd., Dock D Northridge, CA 91329 (Do not return product to this address without first obtaining prior authorization from JBL) CUSTOMER SERVICE: Monday through Friday 8:00am - 5:00pm... -
Page 15: Section 10: Warranty Information
Section 10: Warranty Information The JBL Limited Warranty on professional loudspeaker products (except for enclosures) remains in effect for five years from the date of the first consumer purchase. JBL amplifiers are warranted for three years from the date of original purchase. Enclosures and all other JBL products are warranted for two years from the date of original purchase. - Page 16 Issue date: 1/2019...
