1. Manuals
  2. Brands
  3. Xroad Manuals
  4. GPS
  5. V4100
  6. Owner's manual

Xroad V4100 Owner's Manual

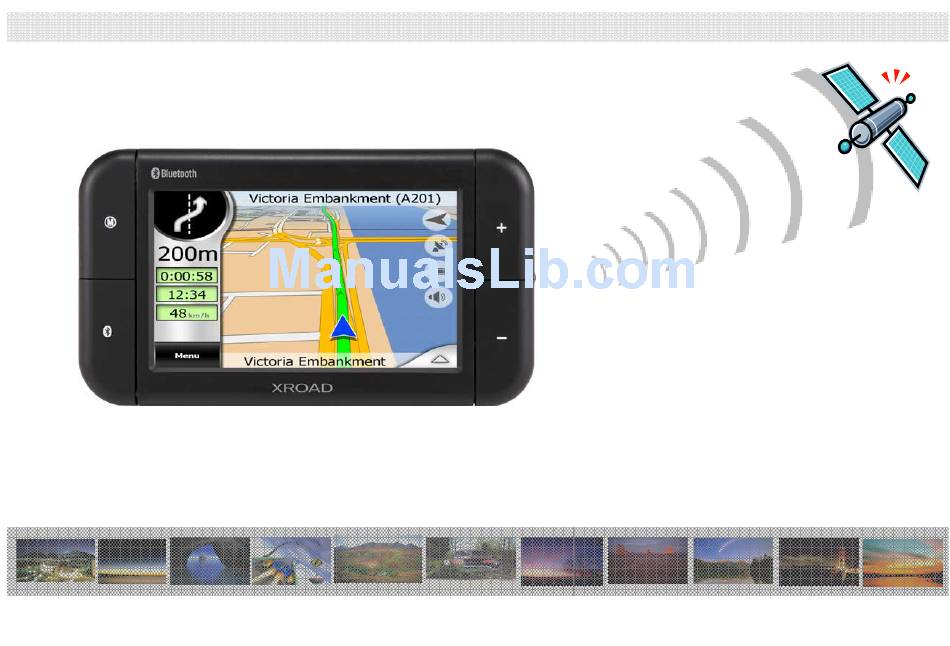

Complete media navigation system
Hide thumbs Also See for V4100:
Table of Contents

Advertisement

Quick Links

See also: Software User Manual
O
w
n
e
r
'
s
M
a
O
w
n
e
r
'
s
M
a
X
R
O
A
D
V
X
R
O
A
D
V
N
a
v
i
g
a
N
a
v
i
g
a
n
u
a
l
f
o
r
n
u
a
l
f
o
r
4
1
0
0
4
1
0
0
t
i
o
n
t
i
o
n

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V4100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Xroad V4100

Summary of Contents for Xroad V4100

  • Page 1 ’ ’...
  • Page 2 A 400Mhz CPU to ensure powerful performance Premium multimedia functions supporting, navigation, music (MP3), video (AVI), picture (JPEG) and Others Enhanced GPS receiver (SIRFIII / SIRFstarIII) for quick cold, warm and hot starts as well as extensibility to an external antenna.

  • Page 3: About This Book

    1. About This Book XROAD This handbook provides a quick guide to the NAVIGATION system, and the basic functions of the device are described, mainly in respect of hardware. For reasons of product development some information is not up-to-dated as yet, and contents may be changed at any time without prior notification.
  • Page 4 (0’C ~ 50’C), and do not expose it to excess heat or cold. ⓓ GPS satellite signals cannot pass through solid materials other than glass. So when you are inside a tunnel or a building or in case of metallic windshield, GPS positioning may not be available. Likewise, signal reception can be affected by situations such as bad weather or dense overhead cover such as trees.
  • Page 5 02. For Proper/Best Use Page_03 2.1 General the instructions given by the device, or if you are not sure about what to do next, you may refer briefly to the map or arrow view of your navigation system. ⓕ A car holder is necessary when using the device in a car, and it is strongly recommended that you place the device in an appropriate place, avoiding areas for example which obstruct airbag panels and instrumentation, or which interfere with the driver’s vision.
  • Page 6 Page_04 02. For Proper/Best Use 2.2 Safety Precaution ⓐ Main System Never attempt to disassemble, repair or make any modification to your device since this could cause damage to the device, and even bodily injury or property damage. Do not store or carry flammable liquids, gases or explosive materials in the same compartment as your device and its parts or accessories.

  • Page 7: Getting It Started

    3. Getting It Started 3.1 Inserting a SD Card Your device has an SD slot, for an optional Secure Digital card storing the initial startup program, digital maps and other data i.e. MP3 files, movie files and image files. To use the memory card, insert it with the connector pointing down into the slot, and the label facing the front of the device.
  • Page 8 3. Getting It Started 3.3. Power Manipulation Power On Press the Power On/Off button to turn on the device. In case of first use of when the device is discharged, connect the power into the unit through the car cigarette power jack or AC adaptor, then press Power On/Off button. Power Off Press the Power On/Off button to turn off the device.

  • Page 9: Hardware Features

    Page_07 4. Hardware Features 4.1 Front View 4.2 Rear View 1. External GPS Connector 1. Main Menu Button 2. Bluetooth On/Off Button 3. Map Zoom-In/Out Button 4. Touch Screen...
  • Page 10 Page_08 4. Hardware Features 4.3 Left Side 4.4 Right Side 1. Power On/Off Button 1. Volume Control Button...

  • Page 11: Hardware Accessories

    Note: the brand, type, spec, and photo of above accessories may vary with actual accessories. Also, accessories packaging items may 5.2 Optional Accessories ② ① ④ ③ Cigar -light adaptor ④ ⑤ SD memory card ② ④ ① AC Adaptor SD Card Reader ④ TMC External Antenna ② External GPS Antenna ③ change without prior notice. Page_09...
  • Page 12 6. A Look at the Home Screen 6.1 Overview ⓐ Finger Touch: This navigation instrument can easily be operated with your fingertip. However, if the vehicle is moving too much, or if you want to select a point with great accuracy, you will need to use the stylus pen.
  • Page 13 6. A Look at the Home Screen 6.1 Overview Ⓕ Select the desired menu icon from the main menu screen. The corresponding program then starts running. * Navigation plus additional menus like Music, Movies, Pictures, Time Set, Settings. To use the main menu during program execution, press the main menu key or press the program end key to move to the main...
  • Page 14 6. A Look at the Home Screen Page_12 6.2 Navi This function guides you to your final destination by voice prompts and a mapping screen, showing crossroads, city names and much more. It also provides various map-guiding modes and the approximate time left to your destination.
  • Page 15 6. A Look at the Home Screen Page_13 6.3 Music ⓐ Information Before Playing Music Files To play a music file, the mp3, wav, or wma file must be saved in an SD memory card. If there is no SD memory card, a sample file is read.
  • Page 16 6. A Look at the Home Screen Page_14 6.3 Music ⓑ Music Screen Description Select Music from the main menu. When you enter Music, the last file played is located at Current Music. If the last music file does not exist in the SD memory card, the first file available in the card is located at Current Music.
  • Page 17 6. A Look at the Home Screen Page_15 6.3 Music ⓒ Playing a Music File Press the Play button to play a music file located at Current Music. Current playing time is being counted. Current status is displayed as playback status. If a file being played is damaged, the next file will be played without opening a pop-up screen.
  • Page 18 Page_16 6. A Look at the Home Screen 6.3 Music ⓒ Playing a Music File - All Files Damaged Press the Play button when a file located at Current Music is damaged. - 1 Track Repeat: Music playback stops after a pop-up screen opens. - 1 Track Repeat/All Play/All Repeat: If all music files are damaged, press the Play button.
  • Page 19 6. A Look at the Home Screen Page_17 6.3 Music ⓓ Playing a Music File - There is a Damaged File Press the Play button when a file located at Current Music is damaged. All Play/All Repeat: A pop-up screen opens and the next playable file is played.
  • Page 20 6. A Look at the Home Screen Page_18 6.3 Music ⓔ Pause Playback stops temporarily. Current status is displayed as Pause. The Play button is deactivated and the Pause button is activated. The playback indicator on the playback bar stops moving. When pressing the previous/next music file during Pause, pause is automatically released and the previous/next music file is played.
  • Page 21 6. A Look at the Home Screen Page_19 6.3 Music ⓕ Stop Playback stops. Current status is displayed as Stop. Current playing time appears as ’00:00:00’. When pressing the previous/next music file during Stop, only the file name moves.
  • Page 22 6. A Look at the Home Screen Page_20 6.3 Music ⓖ Repeat All Repeat is default. All Repeat->All Play->1 Track Repeat->All Repeat-> All Play… When repeat status is set, the current repeat status is changed. The Repeat setting status is maintained even if you exit Music and go back into it again.
  • Page 23 6. A Look at the Home Screen Page_21 6.3 Music ⓗ Volume Adjustment/Mute Volume cannot be adjusted via the touch screen. It is adjusted by controlling the volume adjustment bar. Press the Mute key to use the mute function. Press the Mute key again to release the mute function. Mute is automatically released when the mute function is selected again after the function ends.
  • Page 24 6. A Look at the Home Screen Page_22 6.3 Music ⓘ Previous/Next Music File Zoom -/+: Select the next music file while the last music file is being played, and the first music file is played. Select the previous music file while the first music file is being played, and the last music file is played. When there is a damaged music file, the file is skipped and the next music file is played.
  • Page 25 6. A Look at the Home Screen Page_23 6.3 Music ⓘ Music Play List Description Current status (Pause/Stop/Play) is maintained. Focus is located at the music file being played. The default arrangement status is ‘random’. Press the Cancel button to move to the previous screen. When the length of the file name where the focus is located is long, the file name flows from right to left.
  • Page 26 6. A Look at the Home Screen Page_24 6.3 Music ⓘ Music Play List Arrangement When the Random button appears, the list is in random status. Press the Random button to arrange the list in alphabetical order. The Random button changes to the ABC button.
  • Page 27 6. A Look at the Home Screen Page_25 6.3 Music ⓙ Music Play List Playback Press the list once - Focus is selected. Press the list once again - The file is played.
  • Page 28 6. A Look at the Home Screen Page_26 6.4. Movie ⓐ Tips for Playing a Movie When a movie file (avi) exists in the SD memory card that is inserted into the device, it automatically searches and shows both the file list and the movie start screen. When there is no movie file, the sample movie list built into the device shows, in stop mode.
  • Page 29 6. A Look at the Home Screen Page_27 6.4. Movie ⓑ Movie Execution Process...
  • Page 30 6. A Look at the Home Screen Page_28 6.4. Movie ⓑ Screen Explanation – Control Bar/Button...
  • Page 31 6. A Look at the Home Screen Page_29 6.4. Movie ⓑ Screen Explanation - List Screen Maintain the current status (Pause/Stop/Play). Focus is placed on the movie file being played. Move to the previous screen when the “Cancel” button is pressed. Remake the list again when an entry is made after ending a movie.
  • Page 32 6. A Look at the Home Screen Page_30 6.4. Movie ⓑ Screen Explanation - Play in a Full Screen...
  • Page 33 6. A Look at the Home Screen Page_31 6.4. Movie ⓒ Playing a Movie (see page 27) (see page 27) (See page 27) ⓓ Selective movie playing is possible when 2 or more movies are stored in the SD memory card. (see page 27)
  • Page 34 6. A Look at the Home Screen Page_32 6.4. Movie ⓔ Movie Entry Show the last played filename. If there is no previous file, the loading screen will not appear. Show a sample file. The time lapse and play screen show the last play position of the movie. When the play button is pressed, the count starts from that point.
  • Page 35 6. A Look at the Home Screen Page_33 6.4. Movie ⓕ Movie Control Bar - Pause/Stop When the screen is touched while playing a movie, the Control Bar will appear and the movie will be paused :No. When the screen other than the buttons from the Control Bar is pressed, the Control Bar disappears and play is done in full screen.
  • Page 36 6. A Look at the Home Screen Page_34 6.4. Movie ⓖ Movie RW/FF By moving the play section quickly (10 seconds in succession) forward/backward with the red-lined buttons, the movie can be quickly jumped to a section. The movement stops if the button is clicked again.
  • Page 37 6. A Look at the Home Screen Page_35 6.5 Picture ⓐ Introduction before Viewing Images To view an image file, the bmp, jpeg, or jpg file must be saved in a SD memory card. If there is no SD memory card, a sample file is read. If the SD memory card is disconnected during playback, a sample file is displayed and the image play stops.
  • Page 38 6. A Look at the Home Screen Page_36 6.5 Picture ⓑ Picture Screen Description Select Picture from the main menu. The last image file viewed is displayed. If no previous image file exists in the SD memory card, the first image file is displayed. If the number of files read is being counted. The number is displayed as ‘…’.
  • Page 39 6. A Look at the Home Screen Page_37 6.5 Picture ⓒ Previous/Next Image If there is a damaged file, skip the file and the next file is displayed. Press the Previous button while the first file in the list is displayed, and the last file in the list is displayed. Press the Next button while the last file is displayed, and the first file in the list is displayed.
  • Page 40 6. A Look at the Home Screen Page_38 6.5 Picture ⓓ Image in Full Screen Press an image. The image then appears in full screen.
  • Page 41 6. A Look at the Home Screen Page_39 6.5 Picture ⓔ Image in Full Screen - Enlarge/Reduce Arrow-shaped buttons (left, right, up and down) appear, enabling an image to be enlarged/reduced. The buttons in an enlarged image changes the focus of the image. The enlargement indicator is only displayed for *2/*4.
  • Page 42 6. A Look at the Home Screen Page_40 6.5 Picture ⓕ Image in Full Screen - Enlarge/Reduce-Moving to the Last Image Moving to the last image displays the last file in its original size (*1).
  • Page 43 6. A Look at the Home Screen Page_41 6.5 Picture ⓖ Slide Images are displayed at three second intervals. Slide show occurs in full screen. If the screen is pressed during a slide show, the current image is displayed in the previous mode. After the last file is displayed, the first file is displayed automatically after three seconds.
  • Page 44 6. A Look at the Home Screen Page_42 6.5 Picture ⓗ Picture List Description Focus is located at the file being displayed. When the length of a file name where the focus is located is long, the name flows from right to left. When pressing the Cancel button, you move to the previous screen and the file where the focus is located is displayed.
  • Page 45 6. A Look at the Home Screen Page_43 6.5 Picture ⓘ Picture List View Press the list once-Focus is located. Press the list once again-The file is displayed. Play-If a damaged file is recognized during loading, the loading stops and a pop-up screen opens.
  • Page 46 6. A Look at the Home Screen Page_44 6.5 Picture ⓘ Damaged File in Picture List Play button: Disabled. Cancel button: The last file is displayed in the main screen of Picture. If the file size is too large, the file is processed as a damaged file. If the focus is located at a damaged file, “This file is damaged”...
  • Page 47 6. A Look at the Home Screen Page_45 6.6 Game (option) Among 32 different picture cards, you should pair 2 same picture cards. Once you execute the game, you will have the previewing mode during 5 seconds before starting the actual game. After 5 seconds preview mode, the initial card will start to be reversed and the game time will progress.
  • Page 48 06. A Look at the Home Screen Page_46 6.7 Setting ⓐ Environment Settings Settings are applied immediately. The screen setting tabs appear. When accessing the screen setting tab, the last setting status appears. If a screen with changes is exited without pressing the ‘Save’ button, the change is canceled.
  • Page 49 06. A Look at the Home Screen Page_47 6.7 Setting ⓑ Saving the Settings...
  • Page 50 06. A Look at the Home Screen Page_48 Setting ⓑ Saving the Settings When saving settings, a pop-up screen indicating “Saved” is displayed and the menu moves to the main menu.
  • Page 51 06. A Look at the Home Screen ㅌ Auto-booting ⓒ By clicking on the auto booting in the Settings, when user starts the ignition of the vehicle, Carpoint’s navigation boots up automatically Auto shutdown or continue on battery ⓓ When turning off the engine of the vehicle, removing cigar jack adaptor or AC adaptor from the device, the device will ask whether to continue with the battery power.
  • Page 52 Page_50 07. Transferring Multimedia Files 7.1 Using SD Card Reader Insert an SD storage card into your device and turn on your computer and the device. Once the SD reader and your PC are connected, move the desired objects to the SD card...
  • Page 53 GPS gets reset while driving or iii) in the case of first-time use. If no GPS signals can be picked up after waiting for quite a while, please restart the whole navigation system by pressing the Power button on the left side of the device. However, choosing the “GPS Reset” button from within the menu will lead to complete deletion of all existing GPS information, so it is best to use this function only after moving a long distance from your previous location.
  • Page 54 Hands free and is in the calling stage Bluetooth is connected to the Bluetooth Press the button on the lower left button on the front of the XROAD to launch the Bluetooth system. In case the icon already appears on the screen the stage. Bluetooth icons appear on the screen.
  • Page 55 Phone. If you choose Add Device, you may have to set your phone to allow devices to find it Find Me: Tap on this Find Me to allow the XROAD to be found by your phone. You will use your phone to connect to XROAD.
  • Page 56 PIN code. The default pin code is 0000. Tap OK to record your entry. The XROAD will pair with your phone. You may need to enter the PIN code or perform other functions on your phone to complete the pairing.
  • Page 57 Your phone should now be paired to the XROAD. You may pair your phone with the XROAD as a headset by tapping the Headset button from the Main Menu. This method of connecting the XROAD to your phone is useful only if there has been difficulty connecting the XROAD as a hands-free device.

  • Page 58: Managing Bluetooth Devices

    Hands Free from the Main Menu. Connect: You may tap to connect to the currently selected device Find Me: You may tap on the Find Me to put the XROAD Bluetooth in the Discoverable Mode, which allows...
  • Page 59 Making a Bluetooth Hands Free Call Page_57 Bluetooth Select the Hands Free icon from the menu to place a call using a currently connected device. Touch Call: Tap on this icon to open the number keypad and dial the call Favorites: Tap on this icon to access previously stored favorite numbers History: Tap to view the recent call history and select a...
  • Page 60 Making a Bluetooth Hands Free Call Page_58 2. Favorites You may tap on the Favorites to access a list of your previously stored favorite numbers. You may select a number from the list Call: Tap on the call button to call the selected favorite number Add Favor: Tap on this button to add a favorite number Remove: Tap on this button to remove a selected favorite...

  • Page 61: Answering A Bluetooth Call

    Answering a Bluetooth Call Page_59 When a call is received by a paired phone, the XROAD will display the Incoming Call screen which shows the number calling. In case the number is unknown, it will display “Absent” You may tap on the Answer button to answer the call or...

  • Page 62: Bluetooth Settings

    You may tap on the Settings button to open the Setting screen. On the upper part of the screen, it shows the Windows CE and current Windows CE Address of this XROAD device. You may tap on the Enable/Disable button to toggle between enabling or disabling...

This manual is also suitable for:

V4150

Table of Contents
