Summary of Contents for Xroad MI4300

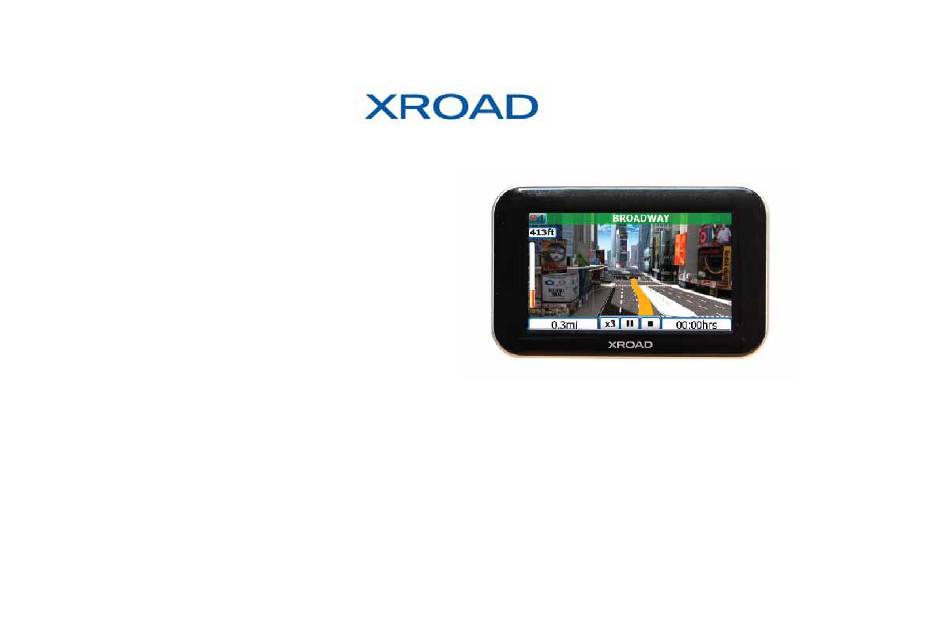

  • Page 1 Owner’s manual for MI4300...
  • Page 2 The user of this device is sole responsible for observing safe driving practices. DO NOT operate XROAD while driving. Park the vehicle first and operate when necessary. ©2008 XROAD All rights reserved.
  • Page 3 The device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. There’s a risk of explosion if battery is replaced by an improper way. Disposal of used battery should follow the instruction. ©2008 XROAD All rights reserved.
  • Page 4 When it’s overheated by sunlight, the battery may explode. XROAD DISCLAIMS ALL LIABILITY FOR ANY USE OF THIS PRODUCT IN A WAY THAT MAY CAUSE ACCIDENTS, DAMAGE, OR THAT MAY VIOLATE THE LAW. ©2008 XROAD All rights reserved.
  • Page 5 This device complies with Part 15 of FCC Results. Operation is subject to the following two conditions: (1) This device may not cause harmful interface, and (2) This device must accept any interference received, including interference that may cause undesired operation. ©2008 XROAD All rights reserved.
  • Page 6 Connect the equipment into an outlet on a circuit different from that to which receiver is connected. 1.4. Consult the dealter or experienced radio/TV technician for help. Warning Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. ©2008 XROAD All rights reserved.
  • Page 7 1. Introduction This handbook is aimed to provide a quick guide to the XROAD’s basic features and functions in respect to the unit hardware. For Instructions on how to use the Navigation Software, please check out the Navigation Owners Manual which can also be found on this CD.
  • Page 8 When you leave your vehicle, please do not leave your unit on the dashboard in direct sunlight. This may cause the battery to overheat and malfunction. (It also may get stolen) Use the product within the recommended operational ©2008 XROAD All rights reserved.
  • Page 9 Wireless units may also interfere with satellite signals, causing variable and inaccurate GPS reception. e) While you are driving, please ensure that you only look at the display when it’s safe to do so. ©2008 XROAD All rights reserved.
  • Page 10 In the event of moisture condensation, allow your unit to dry out completely. Avoid exposing your unit to direct sunlight or strong ultraviolet light for extended periods of time. ©2008 XROAD All rights reserved.
  • Page 11 Since there is a high risk of explosion if the battery is replaced by an incorrect type, the battery must only be replaced by an authorized XROAD service agent. (Please contact XROAD for further information regarding battery replacement) You must use the specified battery charger as approved by the manufacturer.
  • Page 12 Do not attempt to service or repair this adaptor if it becomes damaged or exposed to excess moisture. SD Memory Card(optional) Keep the SD card in a well-protected case and avoid dust and humidity when you are not using it. ©2008 XROAD All rights reserved.
  • Page 13 3. Hardware Accessories 3.1 Standard Accessories Quick start guide CD containing SW and manuals Cigar lighter DC power cable Cradle & Suction mount ©2008 XROAD All rights reserved.
  • Page 14 4.1 Attaching to the suction mount Assemble the cradle with the mount and attach the unit to the cradle as the picture below. Please do not set up the mount while driving for your safety. ©2008 XROAD All rights reserved.
  • Page 15 4.2 Power On/Off Power On: Push the power button Power Off: Press and hold the power button in 2 seconds. Reset: Press and hold the power button in 5 seconds. ©2008 XROAD All rights reserved.
  • Page 16 5. Specification of MI4300 MODEL NAME MI4300 Dimensions Dimension (main unit) 132.0(mm)x 83.0(mm) x 19.5(mm) Weight (main unit) 190g Operatiing conditions Operational temperature range ~ 55 Storage temperature range ~ 70 Main CPU Centrality AtlasIII-396Mhz Operating System Microsoft Windows CE 5.0...
  • Page 17 4.3" TFT active matrix system with touch system panel LCD resolution 480H×272V×RGB (WQVGA) LCD Color depth 24bit color (16.7M) Back lighting White LED , 400(min), 500(typ) cd/m2 (without touch panel) Positioning method High-sensitivity GPS receiver Receiving frequency 1575.42MHz (C/A code ) ©2008 XROAD All rights reserved.
  • Page 18 Warm <45 seconds (Average) Hot <15 seconds (Average) Update rate 1/second, continuous Accuracy Position : < 10meters, typical Positioning method GPS, WAAS(US), EGNOS(EU) Antenna Built-in Patch antenna Socket for external antenna Tuner Built-in : SiLabs ©2008 XROAD All rights reserved.
  • Page 19 25dBuV max Seek stop level 25dBuV max Image rejection 35dB min I/F rejection 80dB min Light Sensor for Changeability range of 40 to 100% backlight control brightness Auto dimmer chattering 3 sec reduction Dimmer speed 1.5%/10ms ©2008 XROAD All rights reserved.
  • Page 20 820mVp-p / 32 Ohms Stereo mini jack Microphone Built-in : -40±1.5 dB Speaker 1.4W @Max fo=730Hz±15% Bluetooth Bluetooth Ver.2.0+EDR +4.0/+1.0dBm(Max/Typ) Power Class 2 Rechargeable battery Battery type & capacity Li-polymer, 1150mAh (Typical) Battery life (navigation mode) Up to 3 hours ©2008 XROAD All rights reserved.
  • Page 21 Approx. 3-4 hours Car cigar cable Input voltage DC 12V ~ 24V Output voltage DC 5V @ 2A Power adapter Input voltage AC 100V ~ 240V @0.5A Output voltage DC 5V @ 2A ©2008 XROAD All rights reserved.
