Keychron C2 - Full Size Mechanical Keyboard Manual

IN THE BOX

Keychron C2 Full Size Mechanical Keyboard x 1
Type-C Cable * 1
Manual *1
Quick Start Guide
Extra Keycaps Set *1

Quick Start Guide

If you are a Windows user, please find the appropriate keycaps in the box, then follow the instructions below to find and replace the following keycaps.
Find the appropriate keycaps in the box

  1. Change Light effect
    Press light effect key
    Change Light effect - Step 1

    For RGB version - Press fn + right arrow/left arrow to change color
    Change Light effect - Step 2
  2. Switch between function and multimedia keys (F1-F12)
    For Windows: Press fn + X + L (for 4 seconds) to switch
    Switch between function and multimedia keys
    Multimedia keys

    Function keys


    For Mac Go to system settings > Keyboard > and enable the function keys.
    *For F5 & F6 function keys press fn + K + C (for 3 seconds) and use same shortcut to switch
  3. Remap keys
    We don't have official software to remap the keys yet. But you can use these two software to get the job done. (Except the light effect key)

    We have a Linux user group on Facebook. Please search "Keychron Linux Group". So you can better experience with our keyboard.
  4. Activate Siri/Cortana
    For Siri on Mac: Go to System preferences > Siri > select "Press Fn (Function) Space" option.
    *Sirikey only works on MacOS and does not work On iOS.


    For Cortana on Windows: Select Start > Settings > Cortana and select the shortcut by pressing Windows key + C key.
    *Windows Cortana only available for 10 above OS. Cortana is only available in certain countries regions and might not work everywhere
    Activate Siri/Cortana
  5. Turn Off the Backlight
    If you are on the Mac, the default is to press F5 key. If you are on the Windows, the default is to press fn + F5 key.
    Turn Off the Backlight - Step 1
    Or press the fn + light effect key.
    Turn Off the Backlight - Step 2
  6. Factory reset
    Troubleshooting? Don't know what's going on with the keyboard?
    Try factory reset by pressing fn + J + Z (for 3 seconds)
    Factory reset

SPECIFICATIONS

Number of keys: 104
Switch type: Mechanical / Optical Switch

Operating Environment: -10 to 50 oC

Technical specifications can be subjected to change without notice, we apologize for any inconvenience caused

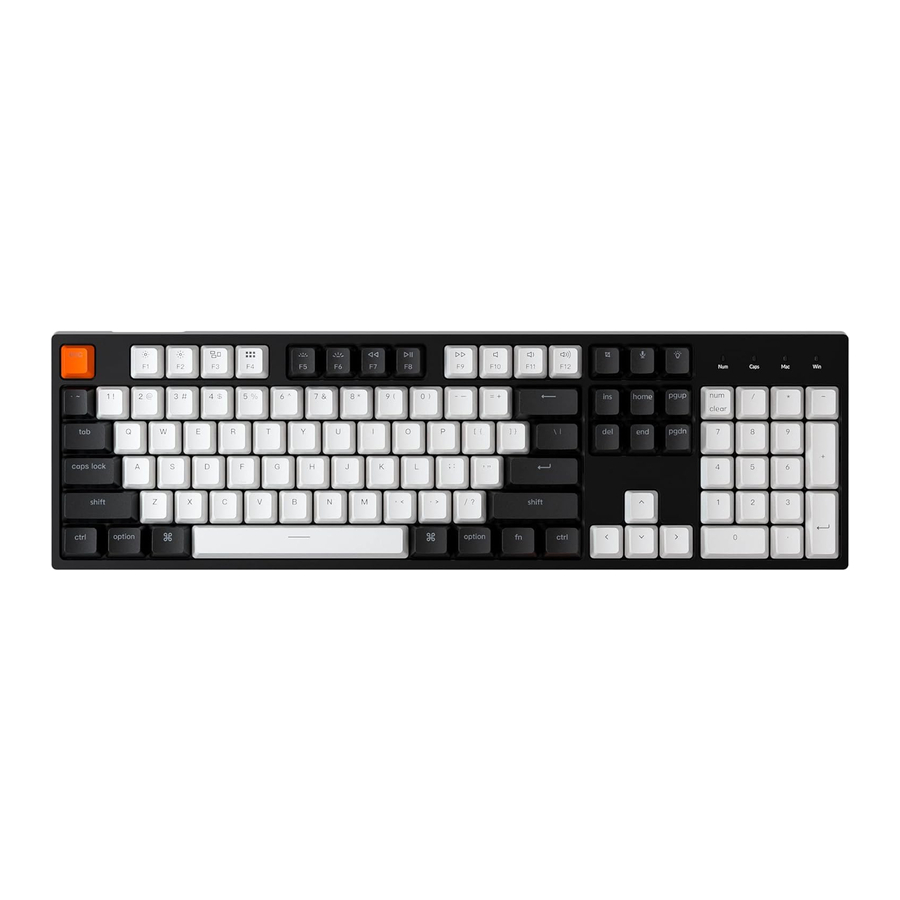

OVERVIEW


  1. Num Lock Indicator
  2. Caps Lock Indicator
  3. Mac Layout
  4. Windows Layout
  5. Win/Android Mac/iOS (OS Toggle Switch)
  6. Type-C Port

BACKLIT SETTING

  • Short press to switch between different types of lighting effects.
  • When backlit is on, press the button to switch among them. Short press fn and "left arrow" or fn and "right arrow" to adjust light colors. (For RGB version only)

OS SWITCH

  1. MAC/iOS
    Turn the switch to Mac/iOS when you are connected to a Mac or iOS operating system.
  2. WINDOWS/ANDROID
    Switch the toggle to Windows/Android when the keyboard is connected to a Windows or Android operating system.
    *When using the Windows/Android mode, keys are used for "Windows" and "Alt" functions.
  3. INPUT METHOD SWITCH
    For iOS:
    Input method switch: Ctrl + Space
    Caps Lock: Caps (Enable General > Keyboards> Hardware Keyboard > Caps Lock Language Switch)
    For Android:
    Input method switch: Shift or Shift + Space

NOTE: Functions of certain multimedia key may be disabled due to compatibility, versions, brands and drivers of Windows/Android OS. We also recommend not to switch OS frequently as it may impact keyboard operations.

TROUBLESHOOTING

My keyboard isn't working
For the keyboard:
Turn the keyboard off and back on.

Third party input tools are not compatible with the keyboard
Due to compatibility, versions, brands and drivers of Windows/Android OS, functions of third party input tools may be affected while using the keyboard. Please make sure your operating system and drivers are up-to-date.

Certain fn keys or multimedia keys does not work under Windows/Android mode.
Functions of certain multimedia keys may be disabled due to compatibility, versions, brands and drivers of Windows/Android OS.

Safety Precaution:
Keep the product, accessories and packaging parts out of reach of children to prevent any accidents and choking hazards.
Always keep the product dry to avoid corrosion.
Do not expose the product to extreme temperatures below -10oC (5 oF) or above 50oC (131 oF) to preserve the lifespan of the keyboard and battery.

Keychron, Inc.
Dover, DE 19901, United States
Find us at:
https://www.keychron.com
Support@keychron.com
@keychron
@keychronMK

Designed by Keychron
Made in China
