MACALLY BTNUMKEYPRO - Rechargeable Bluetooth 35-key Numeric Keypad Manual

Introduction

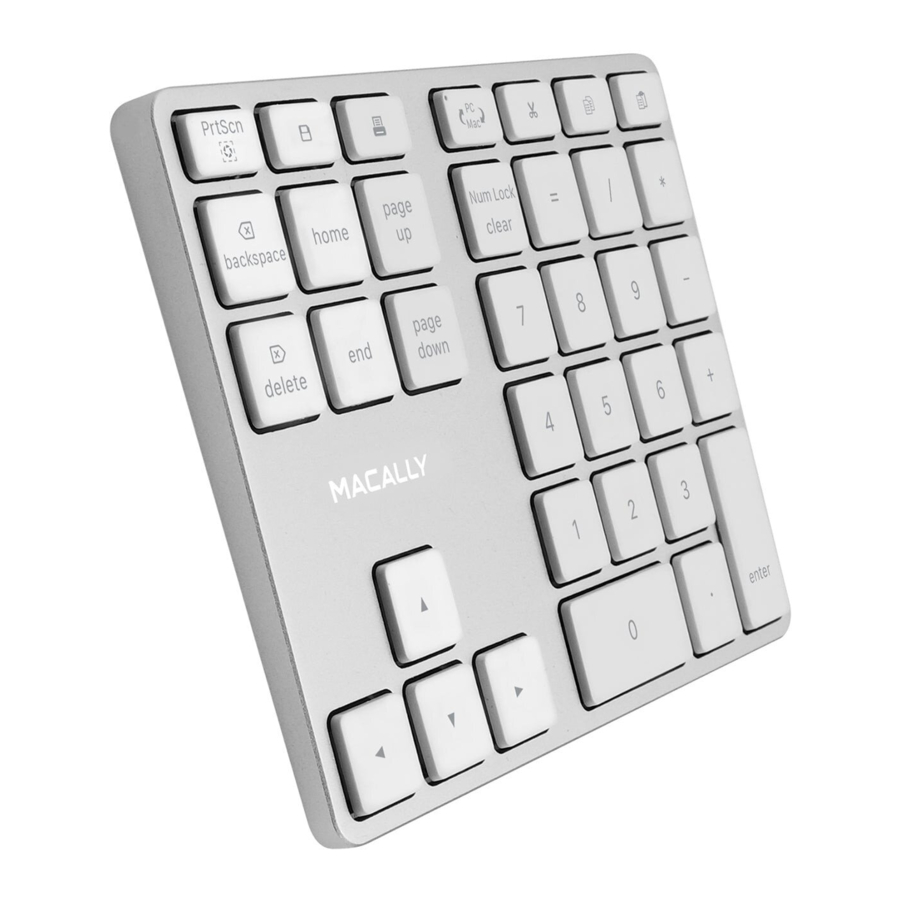

Thank you for purchasing the Macally product. The Macally BTNUMKEYPRO, a rechargeable Bluetooth numeric keypad, allows professionals to efficiently enter long sequences of numbers in spreadsheets, accounting programs, calculators and increase their productivity. Thanks to its slim and wireless design, you can keep your desk clean and store it anywhere without cable clutter. You can put it easily in a bag and take it with you when on the road. The built-in 300mAh rechargeable battery will power the BTNUMKEYPRO up to 1 month before next charging is required.

Before you begin using this product, be sure to read this user's guide in its entirety.

Package Contents

• BTNUMKEYPRO
• USB charging cable
• User's Guide

System Requirements / Technical Support

• Bluetooth enabled computer or mobile device
• Mac OS X v10.6 or later; Windows 7/8/10
• iOS 8.0 or later; Android 6.0 or later

Technical Support
Please E-mail us at techsupport@macally.com, or call us at 1-909-230-6888 Monday to Friday, 8:30AM to 5:30PM, Pacific Standard Time

FAQ & help - https://help.macally.com/help

Manual and driver download -
https://us.macally.com/pages/drivers-and-downloads

Hardware Basics

LED indicator:

1. charging: red, and off (when full)
2. pairing: flashing blue
3. OS mode PC: blue...off...blue...off... Mac: off

Pairing the keypad with Mac

1. Make sure the keypad is on and fully charged. Then press and release the Pair button in the front side of keypad to set the keypad into pairing mode (flashing blue LED).

2. Click on the Bluetooth icon located in the upper right corner of your Mac's menu bar. Make sure Bluetooth is "ON" then select "Open Bluetooth Preferences" from the drop down menu.

3. From the Bluetooth screen, wait for the Macally Bluetooth Keypad to show up then click on "Pair" or "connect" to add it.
   NOTE: It may take up to a minute for the device to show up on the screen. (Screen shot below is for reference only.)

4. Once pairing is completed, the Bluetooth keypad will show "Connected". If you are having issues connecting, try turning Bluetooth off then turn on and try re-pairing the keypad again. (Screen shot below is for reference only.)

5. Please close the "Keyboard Setup Assistant" window if seen. It is ready to use.

Pairing the keypad with Windows PC

1. Make sure the keypad is on and fully charged. Then press and release the Pair button in the front side of keypad to set the keypad into pairing mode (flashing blue LED).
2. Open your windows Bluetooth settings and click on "Add a device"..

3. From the Bluetooth screen, wait for the Macally Bluetooth Keypad to show up then double click on it to add it.
   NOTE: It may take up to a minute for the device to show up on the screen.(Screen shot below is for reference only.)

4. After a short period, Windows will show the following screen indicating that the keypad is now paired with the computer. Please note that the driver installation may take a few minutes. Windows will notify you when the keypad is ready to use. (Screen shot below is for reference only.)


Please note that if you are using a different Windows OS version, your screen may differ from the above diagrams.

Pairing the keypad with iPad/iPhone

1. Make sure the keypad is on and fully charged. Then press the pair button in the front side of keypad to set the keypad into pairing mode (flashing blue LED).
2. Bring your iPad or iPhone near by the keypad. Open up "settings" then Bluetooth.

3. Turn on Bluetooth, under the "Bluetooth" menu, it will auto search for the new Bluetooth devices....

4. Once it finds and displays Macally BTNUMKEYPRO or similar name, select it to pair and connect.
5. After pairing is successfully completed, it will show "Macally Bluetooth.... connected". It is ready to be used with your iPad or iPhone.


Please note that if you are using a different iOS version, your screen may differ from the above diagrams.

Pairing the keypad with your Android Smartphones and Tablets

1. Make sure the keypad is on and fully charged. Then press the pair button in the front side of keypad to set the keypad into pairing mode (flashing blue LED).
2. In Android device, under "Settings" select Bluetooth. Make sure it is configured to "On" as shown in the picture.
3. Once you see Macally BTNUMKEYPRO appear, select it and it will automatically pair to your device (Below screen shot are for reference only.).

   Please note that if you are using a different Android smartphone or Tablet version, your screen may differ from the above diagrams.
