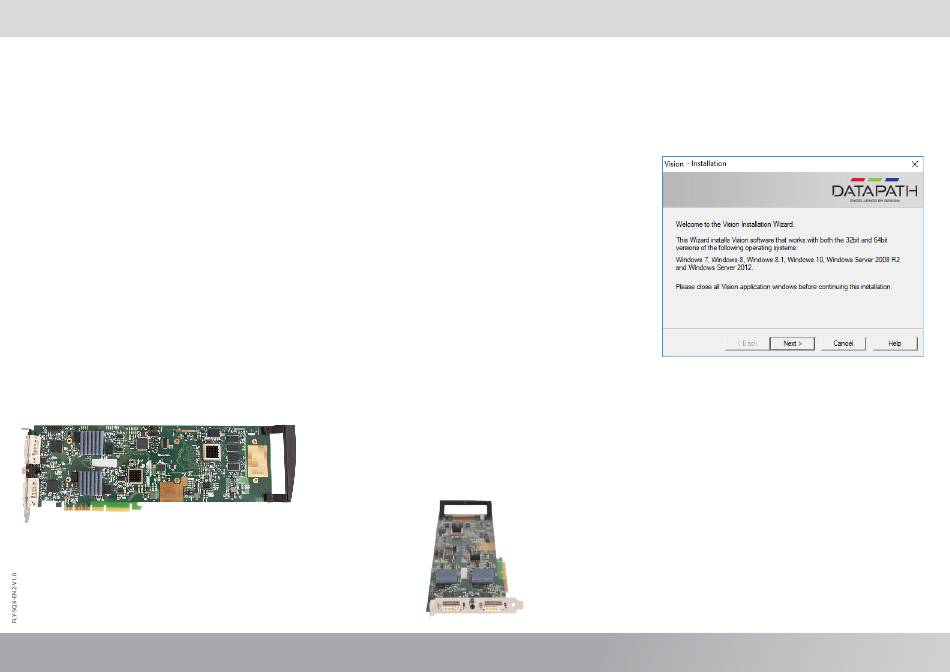

Datapath VisionHD2-SQX Hardware Installation page 2

PACKING LIST
Your packing box should contain the following items:
The VisionHD2-SQX triple channel capture card.
(To download the latest drivers go to www.datapath.
co.uk).
NOTE:
All plug-in cards are static sensitive and are packed in
antistatic materials. Please keep the card in its
packaging until you are ready to install.
HARDWARE INSTALLATION
You are likely to need a flat blade and/or a cross head
screwdriver for the installation of the VisionHD2-SQX card;
it would be useful to have these to hand before you begin.
Power down the PC (including peripherals), switch off at
the mains and disconnect all the cables connected to the
computer, noting the positions for accurate reconnection
Remove the PC cover.
Locate a vacant PCIe slot (x4 or higher) on the motherboard
and remove the backing plate (retain all screws) .
If in doubt consult your motherboard documentation to
correctly identify a PCIe (PCI-express) slot.
Remove the VisionHD2-SQX card from its packaging and
secure it firmly into the empty PCIe slot.
Screw the VisionHD2-SQX bracket to the back panel of the
PC and replace the cover.
Connect the cable(s) distributing the RGB or DVI signals to
the connectors on the VisionHD2-SQX card. Reconnect all
cables to the PC.
SOFTWARE INSTALLATION
Download the the required driver install.exe from the
Support pages on the Datapath website and follow the
Installation Wizard instructions as prompted.
We suggest that you regularly visit the Datapath web site
for information on updated drivers.
www.datapath.co.uk
It is strongly recommended that you read the detailed
help instructions on completion of the installation. Each
help topic may be printed for ease of use.
