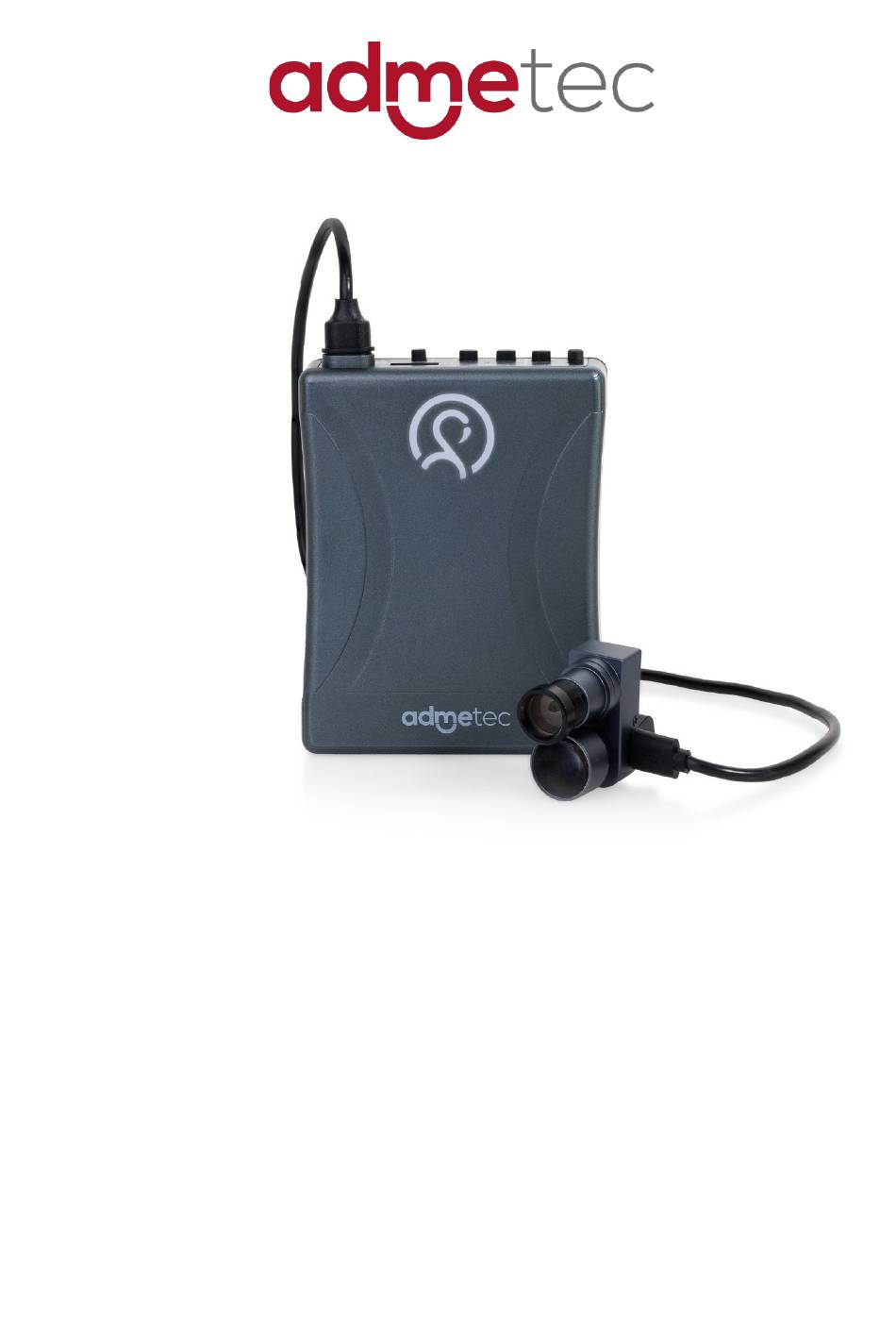

- Page 1 Flamingo Instructions for Use...
-
Page 3: Table Of Contents
Table of Contents Introduction Product overview Safety precautions & troubleshooting Assembling MCU and Camera module Flamingo MCU indicator Buttery charging Download Flamingo software Technical specifications Warranty... -
Page 4: Introduction

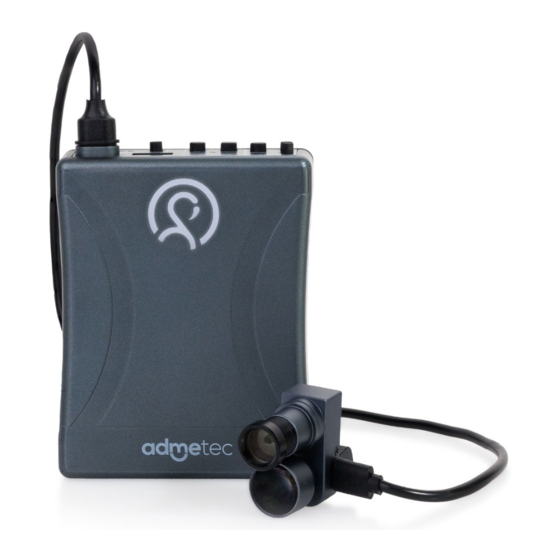

Thank you for choosing Intended Use: Flamingo is an integrated HD camera and light system designed for use in dental and medical practices. It attaches to magnification loupes to assist practitioners in documenting and illuminating procedures. This innovative device enables real-time display and recording of detailed images, enhancing both patient care and educational opportunities for medical professionals. -
Page 5: Product Overview
Product overview Flamingo Insert Set Please note that the image is for illustration. Your Flamingo comes with: 1. WiFi USB dongle (for Windows) 2. Camera & light module 3. Camera module cable to MCU 4. Charging stand 5. MCU with 2 batteries 6. -
Page 6: Safety Precautions & Troubleshooting
Safety Precautions Do not use any third-party AC/DC adaptor with Flamingo battery charger stand, even if they look identical. Third-party chargers may not be compatible with the battery charger and could damage it . Prevent the MCU from overheating. Avoid direct sunlight or heated surfaces . -
Page 7: Assembling Mcu And Camera Module
Fig. 03 – Type C cable insert into MCU Fig. 04 – Camera module with Micro USB Caution Do not use any third-party AC/DC adaptor with Flamingo battery charger stand. Third-party chargers damage the battery charger stand. Caution Prevent MCU from overheating. -
Page 8: Flamingo Mcu Indicator
Flamingo MCU Indicators Each Flamingo kit includes one MCU and two batteries which serve as a power source and control panel for the camera and light module. Item/Button Description Action Camera Power To turn ON, press the ‘ON/OFF’ button. ON/OFF button To turn OFF, press &... -
Page 9: Buttery Charging
Battery charging 1. Connect the AC/DC adaptor output to the Flamingo charging stand. Make sure the power cable is connected to the AC/DC adaptor and plugged to the wall power outlet. 2. Insert the battery to the charging stand socket as shown below. -
Page 10: Download Flamingo Software
Downloading the software To set up your Flamingo you are required to download Admetec’s proprietary software on your device/PC and follow the instructions in the user manual on the website. Download the Flamingo software and the User manual from the following link: https://www.admetec.com/flamingo... -
Page 11: Technical Specifications
(without cable) 19 gr Spotlight size diameter at 350mm 90mm Resolution 1080p FHD Sensor size 1/2.7 inch Flamingo pedal Voltage 3,7 V Size W: 52 mm / D: 98 mm / H: 25 mm Weight 63 gr Bluetooth Model 4.2/5... -
Page 12: Warranty
Admetec warrants the Flamingo product against defects in materials and workmanship for a period of two (2) years for the Flamingo set and one (1) year for all other supplied parts from the date of original purchase ("Warranty Period"). - Page 13 CE Mark indicating that the device complies with Regulation (EU) 2017/745 of the European Parliament and of the Council of 5 April 2017 on medical devices Admetec Solutions Ltd. Yokhanan HaSandlar St. 18 Haifa, 3296218, Israel Obelis Group Bd Général Wahis, 53,...
- Page 14 EU and are intending to discard these products at the end of their useful life, please do not dispose of them with your other household or municipal waste. Admetec has labeled its branded electronic products with the WEEE Symbol to alert our customers that products bearing this label should not be disposed of in a landfill or with municipal or household waste in the EU.
- Page 15 Do you need customer service? Please contact your local distributor.
- Page 16 www.admetec.com...
