Summary of Contents for ADMETEC butterfly evo

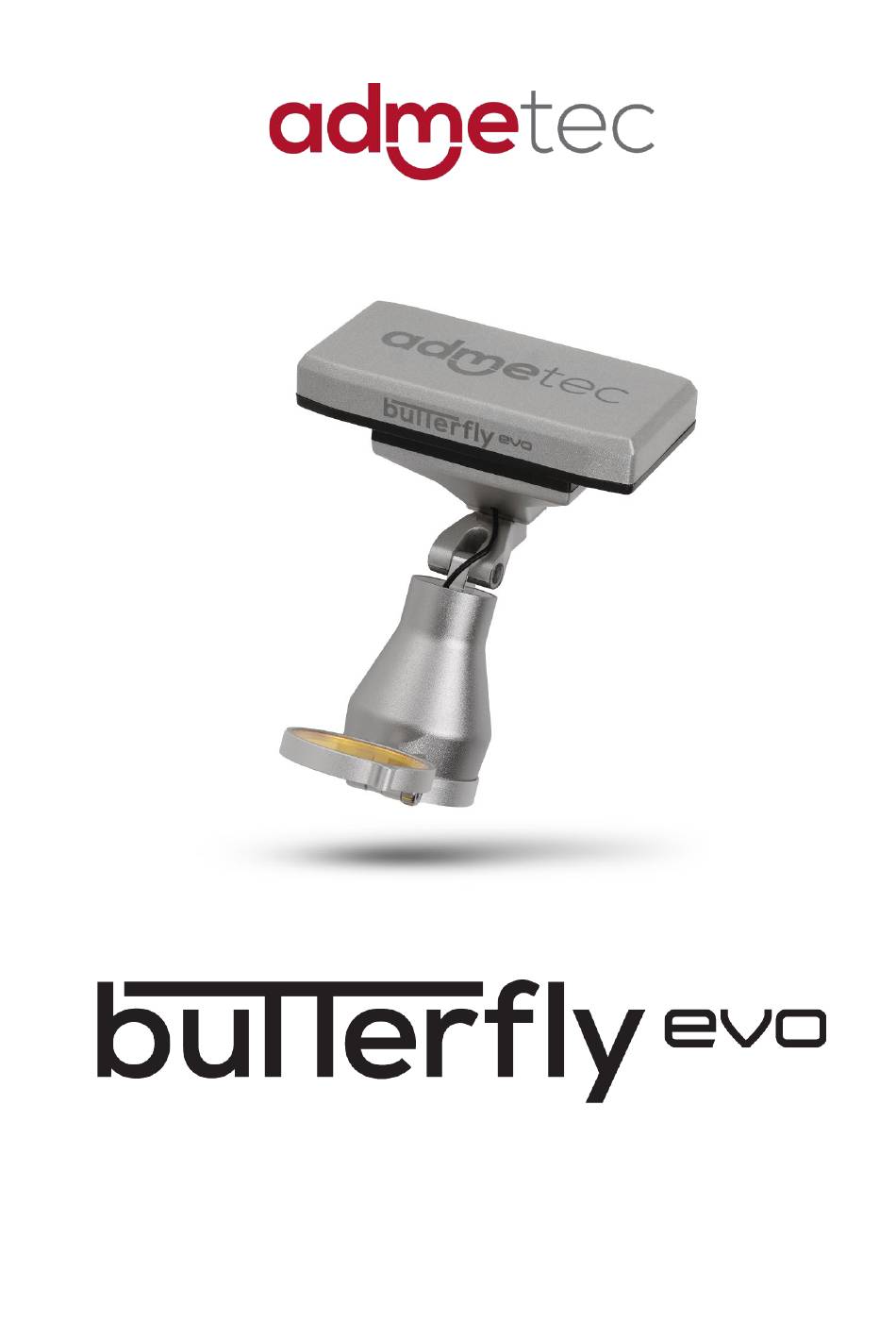

  • Page 1 Instructions for Use...
  • Page 2 Introduction Thank you for choosing Meet the Butterfly , Admetec's cordless headlight series, featuring two models designed for optimal efficiency. Using a battery pack gives the user complete portability allowing unrestricted movement. Butterfly benefits: • Cordless: Freedom of movement increases comfort and efficiency •...

  • Page 3: Product Overview

    Product overview Fig. 01 – Butterfly Case This image is for illustration only. There are some differences in the batteries between Butterfly models Your Butterfly comes with: 1. Light Source 2. Butterfly Batteries 3. Charging Pad 4. Yellow Filter (composite) 5.

  • Page 4: Safety Precautions

    Safety Precautions Do not use any third-party chargers with Butterfly Charging Pad even if they look identical. Third-party chargers are not compatible with the battery packs and could damage it . Prevent battery packs from overheating. Avoid direct sunlight or heated surfaces .
  • Page 5 Charging Pad To charge the battery, 1. Connect charging pad to AC/DC USB charger using the provided USB cable. 2. Plug the AC/DC USB charger into a wall outlet. 3. Place the battery pack on the charging pad as shown in Fig. 02. It is possible to charge two battery packs simultaneously.

  • Page 6: Battery Pack

    Battery pack Each Butterfly kit includes 3 battery pack units serving as power source and a charging pad to charge the batteries. Battery packs control – turning the light source ON and OFF. This function is controlled by touching the area marked in green in Fig. 03 Dimming the light source in two different intensities is controlled by touching the area on the right side of the battery, marked in green on Fig.

  • Page 7: Light Source

    *Note: Use the Allen key attached to tighten/lessen the ring. Fig. 05 – Mounting external yellow filter (composite) 2. Attach the light source to the Admetec frame adaptor or on the universal adapter as shown in Fig. 06 and Fig. 07 Fig.
  • Page 8 Notes When attempting to place battery pack in reversed position, the magnets will not allow it to be attached to the connection pad. 4. Once the battery pack is aligned, turn your light on. Fig. 08 – Butterfly mounted on frame. 5.

  • Page 9: Technical Specifications

    Technical Specifications Battery charger Parameter Butterfly Input voltage 100 – 240 V AC Output voltage 5 V DC Battery parameters Parameter Butterfly Butterfly-S Internal battery voltage: 3.7 V 3.7 V Battery capacity: 0.56 Ah 0.85 Ah Full battery charging time 1.25 hrs 1.5 hrs Average working time...

  • Page 10: Warranty

    If a defect arises and a valid claim is received by Admetec after the first ninety (90) days of the Warranty Period, a shipping and handling charge will apply to any repair or exchange of the product undertaken by Admetec.
  • Page 11 EU and are intending to discard these products at the end of their useful life, please do not dispose of them with your other household or municipal waste. Admetec has labeled its branded electronic products with the WEEE Symbol to alert our customers those products bearing this label should not be disposed of in a landfill or with municipal or household waste in the EU.
  • Page 12 Do you need customer service? Please contact your local distributor.
