- Page 1 INSTALLATION INSTRUCTIONS CANVAS Portrait 43x90 Landscape 90x43 Square 43x43 Wall Mounting Bar Canvas Panel QTY: 2 (Portrait) QUANTITY: 1 QTY: 1 (Landscape & Square) REQUIRED EQUIPMENT Screw driver, Level, 2” long screws Rev. 03 PAGE 1 / 3 Date: 01-24-2024...

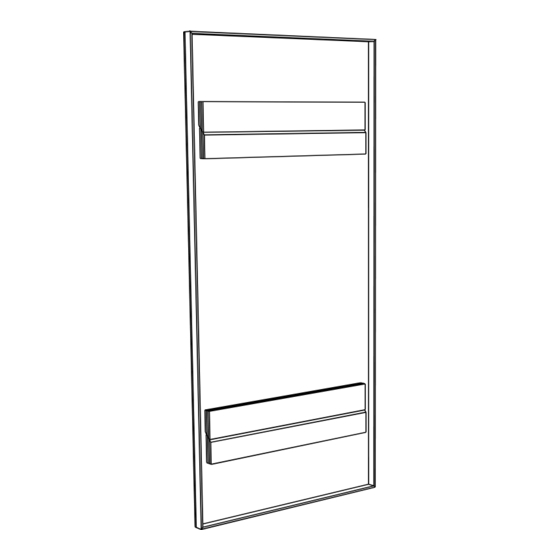

- Page 2 Portrait 43x90 Mark top of Canvas Panel at desired location. Locate upper mounting bar 17” from the marked loca- tion and secure in place using a Level and 3 wall screws. (See attached detail for proper orientation). Attach lower mounting bar 61 inches below the Wall Mounting bar as shown.
- Page 3 Landscape 90x43 Mark top of Canvas Panel at desired location. Locate Upper Mounting bar 17” below the marked location and secure in place using a Level and 5 wall screws. (See attached detail for proper orientation). Center Mounting Bar and secure using a Level and 5 wall screws.
- Page 4 Rathcoole, Co. Dublin, +44 1843-264027 D24 EO29, Ireland sales@ezobord.co.uk +353 1485-4774 sales@ezobord.ie CENTRAL & LATIN AMERICA EzoBord Costa Rica SRL EzoBord - LATAM 100 Sur 25 Oeste Recope Buenos Aires, Argentina Bodega #16 Ochomogo, Cartago +54 9 11 5657-1793 +506 8842-4613 info-latam@ezobord.com...
