VersaTube MENARDS Instruction Manual

12'w, 14'w, 18'w, 20'w, 24'w and 30'w front and back enclosures
Hide thumbs Also See for MENARDS:

Advertisement

Quick Links

Download this manual

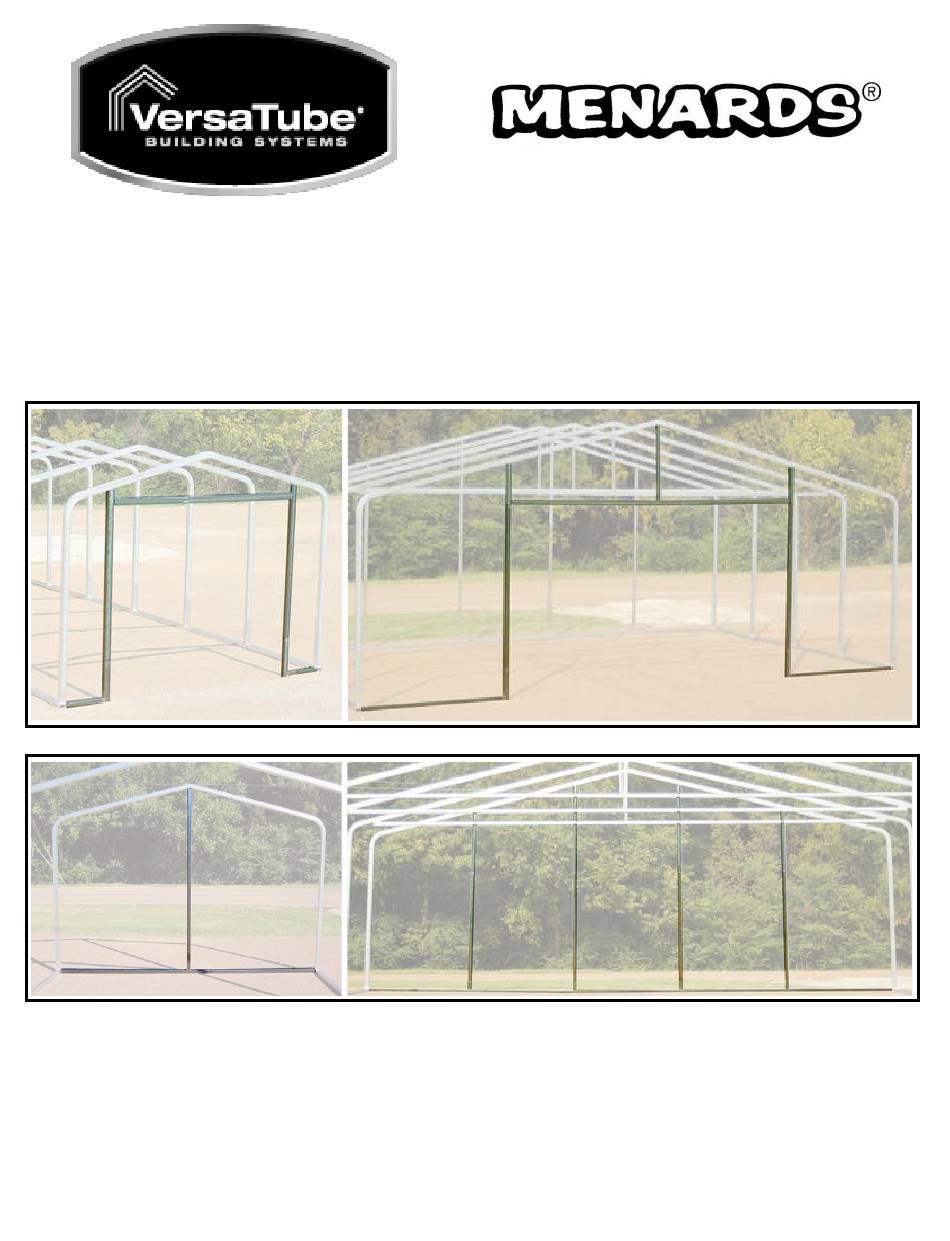

End Enclosure
Instruction Manual
for 12'W, 14'W, 18'W, 20'W, 24'W and 30'W front and back enclosures
Our unique assembly process quickly transforms the individual pieces into a finished structure that will give you a lifetime of
service. Great care has been taken to ensure complete satisfaction with your purchase. In the unlikely event that there are
any missing or damaged parts, or if you simply need technical assistance, please call our Toll Free Hotline at 1-800-900-
7222 and your questions will be addressed promptly. Thank you for choosing the VersaTube Building System.
ZINST-ENCLOSURE-M
REV. 10/2018
-1-

Advertisement

loading

Related Manuals for VersaTube MENARDS

Summary of Contents for VersaTube MENARDS

  • Page 1 Great care has been taken to ensure complete satisfaction with your purchase. In the unlikely event that there are any missing or damaged parts, or if you simply need technical assistance, please call our Toll Free Hotline at 1-800-900- 7222 and your questions will be addressed promptly. Thank you for choosing the VersaTube Building System. ZINST-ENCLOSURE-M...

  • Page 2: Table Of Contents

    Contents Safety, Hazard and Maintenance Instructions What You’ll Need Front Enclosure Assembly Front Enclosure Diagrams 8-11 Back Enclosure Assembly 12-13 Back Enclosure Diagrams 14-18 REV. 10/2018...

  • Page 3: Safety, Hazard And Maintenance Instructions

    (6) months. All sheet metal cladding applied to the VersaTube frame are attached with self drilling screws with a rubber washer. These screws produce small shavings when drilling through the cladding. If the shavings are al- lowed to sit on the sheet metal for an extended period, rust spots will form and promote deterioration.

  • Page 4: What You'll Need

    ATTENTION: IT IS IMPORTANT THAT YOU READ THE FOLLOWING NOTE NOTE: If during the installation process you have difficulty fitting frame components together, use an adjustable wrench to open the end of the receiving tube as shown below. Close wrench down around bent portion of tube and bend wall outward.

  • Page 5: Front Enclosure Assembly

    Front Enclosure Assembly STEP 1: ASSEMBLE BOTTOM RAIL AND L-CONNECTOR Assemble a 2”x2” bottom rail to a L-Connector (71-FE-L), making (2) assemblies (do not screw together at this time). Place (1) assembly in each front corner of the structure as shown. Fasten the bottom rail to the structure’s side base rail with a BK- 10 Angle Bracket and (6) framing screws.
  • Page 6 Front Enclosure Assembly (continued) STEP 3: ASSEMBLE DOOR VERTICALS If the structure is over 7.5’H, the door jambs will be made of (2) pieces: a cut length 2”x3” and a swaged (reduced end) height extension. The height extension length is determined by the height of the structure (on Front Enclosure Diagram pag- es).
  • Page 7 Front Enclosure Assembly (continued) STEP 5: ATTACH DOOR HEADER Make a mark on the door opening side of both Door Jamb Verticals at either 81 3/4” or 84” (depending on enclosure) from (Note: It is advised to use two people to lift, position and attach the Door Header Assembly.) the bottom of the L-Connectors.

  • Page 8: Front Enclosure Diagrams

    Front Enclosure Diagrams ON FOLLOWING PAGES REV. 10/2018...
  • Page 9 12’ W Front Enclosure, 8’ W Door 7100-3550 2"x3"x35 1/2" HE-5 5' Height Ext., 4.75" swage, 64.75" overall Height Part # Description 7’ 7100-6775 2''x3''x67 3/4'' 7.5'-12.5' 7100-7200 2''x3''x72'' Height Part # Description 8.5' HE-1 1' Height Ext., 4.75" swage, 16.75" total 81 3/4”...
  • Page 10 18’ W Front Enclosure, 8’ W Door HE-5 5' Height Ext., 4.75" swage, 64.75" overall 7100-3600 2"x3"x36" 7100-8200 2''x3''x82'' Height Part # Description 8.5' HE-1 1' Height Ext., 4.75" swage, 16.75" total 9.5' HE-2 2' Height Ext., 4.75" swage, 28.75" total 10.5' HE-3 3' Height Ext., 4.75"...
  • Page 11 24’ W Front Enclosure, 8’ W Door Height Part # Description 8.5' HE-1-2 1' Height Ext., 4.75" swage, 16.75" total 9.5' HE-2-2 2' Height Ext., 4.75" swage, 28.75" total 7400-3450 2"x2"x341/2" 7100-3700 2"x3"x37" 71-8175 2"x3"x81.75", 4.75" Swage 7100-7800 2''x3''x78'' Height Part # Description 8.5' HE-1 1' Height Ext., 4.75"...

  • Page 12: Back Enclosure Assembly

    Back Enclosure Assembly STEP 1: ASSEMBLE BOTTOM RAILS AND T-CONNECTORS Loosely assemble all Base Rail parts: T-Connectors, and Bottom Rails (quantity and lengths described on Back Enclosure Diagram pages). Place the loose assembly on the ground or slab at the back of the building with the pins on the T- Connectors in the vertical position.
  • Page 13 Back Enclosure Assembly (continued) STEP 3: ASSEMBLE VERTICAL TUBES Every T-Connector receives: (1) 74-8175 - 2”x2”x81 3/4” tube with 4 3/4” swage and (1) 2”x2” cut length tube. Place a Swaged Vertical on top of each T-Connector, then place a Cut Vertical on top of each Swaged Vertical. Use a level to posi- tion and square each vertical.

  • Page 14: Back Enclosure Diagrams

    Back Enclosure Diagrams ON FOLLOWING PAGES REV. 10/2018 -14-...
  • Page 15 10’ W Back Enclosure, (1) Vertical Height Part # Description 7400-1000 2''x2''x10'' 7.5' 7400-1550 2''x2''x15.5'' 8.5' 7400-2775 2''x2''x27.75'' 9.5' 7400-3975 2''x2''x39.75'' 10.5' 7400-5150 2''x2''x51.5'' 11.5' 7400-6350 2''x2''x63.5'' 12.5' 7400-7550 2''x2''x75.5'' 4’9” (7’H Unit) 4’8” (7.5’-12.5’ Units) 7400-4575 2"x2"x45.75" 12’ W Back Enclosure, (1) Vertical Height Part # Description 7400-1300...
  • Page 16 14’ W 2”x3” Back Enclosure, (2) Verticals Height Part # Description 7.5' 7400-1462 2''x2''x14.625'' 8.5' 7400-2650 2''x2''x26.5'' 9.5' 7400-3850 2''x2''x38.5'' 10.5' 7400-5050 2''x2''x50.5'' 11.5' 7400-6250 2''x2''x62.5'' 12.5' 7400-7850 2''x2''x78.5'' 7400-3250 2''x2''x32.5'' 4’4 5/8” 7400-4250 2''x2''x42.5'' 14’ W x 14’ H Back Enclosure, (2) Verticals 7100-9250 2''x3''x92.5'' 2"x3"x81.75",...
  • Page 17 18’ W Back Enclosure, (3) Verticals Height Part # Description Height Part # Description 7.5' 7400-1400 2''x2''x14'' 7.5' 7400-2725 2''x2''x27.25'' 8.5' 7400-2600 2''x2''x26'' 8.5' 7400-3925 2''x2''x39.25'' 9.5' 7400-3800 2''x2''x38'' 9.5' 7400-5100 2''x2''x51'' 10.5' 7400-5000 2''x2''x50'' 10.5' 7400-6350 2''x2''x63.5'' 7400-3100 2''x2''x31'' 4’3”...
  • Page 18 24’ W Back Enclosure, (3) Verticals Height Part # Description Height Part # Description 7.5' 7400-1875 2''x2''x18.75'' 7.5' 7400-3625 2''x2''x36.25'' 8.5' 7400-3075 2''x2''x30.75'' 8.5' 7400-4825 2''x2''x48.25'' 9.5' 7400-4275 2''x2''x42.75'' 9.5' 7400-6000 2''x2''x60'' 7400-4900 2''x2''x49'' 5’9” 7400-5900 2''x2''x59'' 30’ W Back Enclosure, (4) Verticals Height Part # Description Height Part #...
