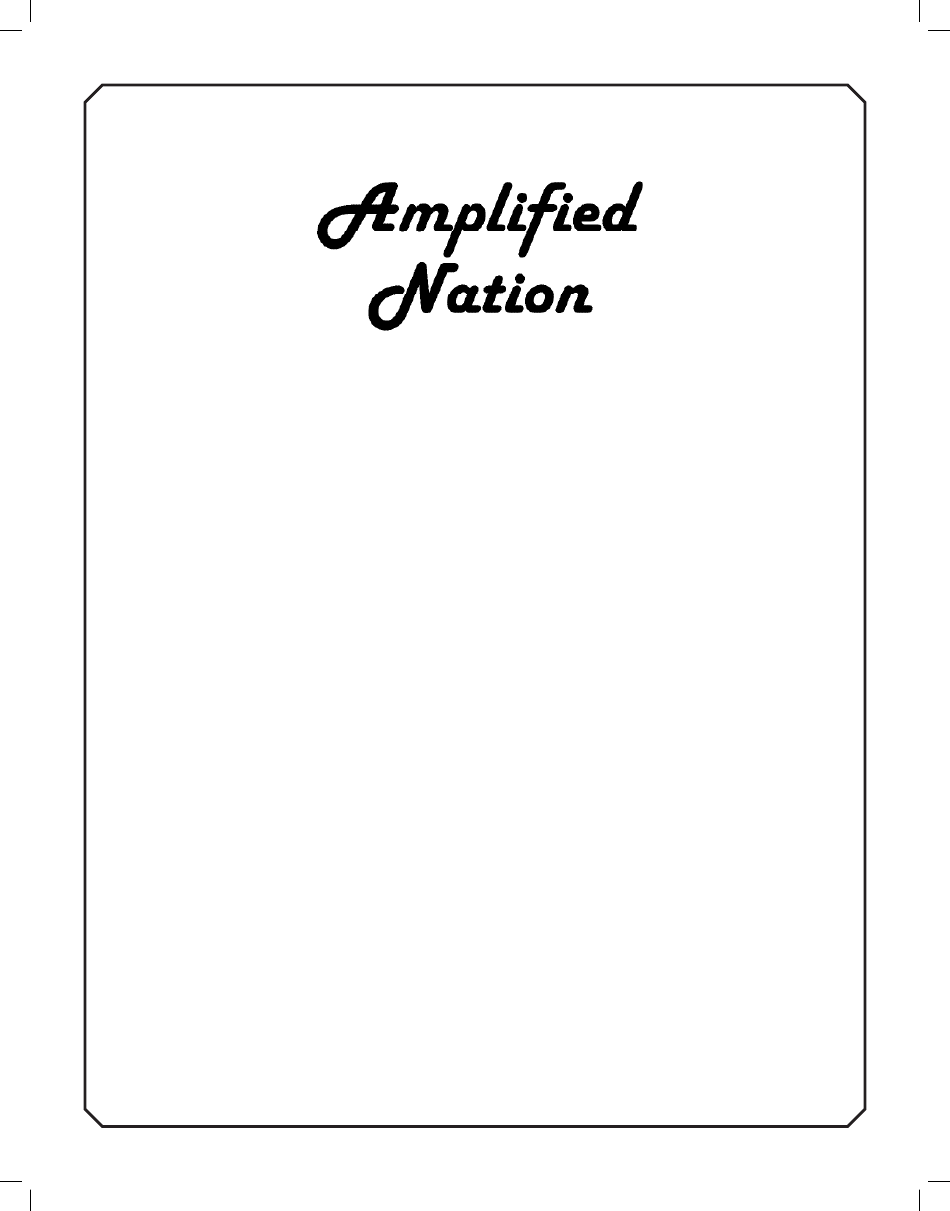

- Page 1 Ampliphonix and Gain OWNER’S MANUAL...
- Page 2 The Ampliphonix and Gain comes in different power levels, from 22w to 100w and can be found in head or combo form factor. The higher wattage amps have increased headroom as you go up in power, and increased sonic presence.
- Page 3 DC. Do not attempt to service, repair or conduct tube biasing unless you are qualified to do so. Please contact Amplified Nation beforehand with questions in this regard. Amplified Nation takes no responsibility or shall be held liable for any personal harm caused or damage to this amplifier as a result of unauthorized service, repair or internal adjustments made to this amplifier.
-
Page 4: Front Panel Functions
Front Panel Functions Input Jack: High impedance input to the amplifier. Plug in your instrument here. Bright Switch: Boosts the upper mid frequencies and treble response of the Gain channel. Gain: Adjusts the gain of the amplifiers Gain channel. The higher levels of gain will result in thicker saturation and more aggressive amounts of overdrive. - Page 5 Front Panel Functions (CONTINUED) Reverb: Adjusts the amount of reverb for the amp. Both channels will be affected by this control. You will hear slightly more gain and sparkle when the reverb is turned clockwise. Power Indicator Lamp: The replacement light bulb is a 6.3v A/C. NOTE: All switches are ON in the “up”...
-
Page 6: Rear Panel Functions
Effects Loop: The effects loop of the Ampliphonix and Gain is a passive signal access point. Any effects plugged into the loop will be run in series with the preamp and power amp. -
Page 7: Fuse Chart
Fuse Chart All Fuses are 3AG Type 250 Volt, SLO-BLO Domestic 120v Fuses: Export 230v, 240v Fuses: 2A – 22 Watt 1A - 22 Watt 3A - 50 Watt 1.5A - 50 Watt 3A - 100 Watt 1.5A - 100 Watt Tube Complement POWER TUBES BIAS... - Page 8 Bias Adjustment Procedure All of our amps are equipped with external bias test points and an external bias adjustment pot. The adjustment pot is located in between the power tube sockets and should be adjusted using an insulated flat tip screwdriver. •...
- Page 9 It is the customer’s responsibility to pay to ship the product to us, and if it is determined the warranty doesn’t apply, the customer is responsible for the return shipping. If the product is a warranty repair, Amplified Nation will cover the return shipping. CONTACT US This manual is a resource for some of your questions.
