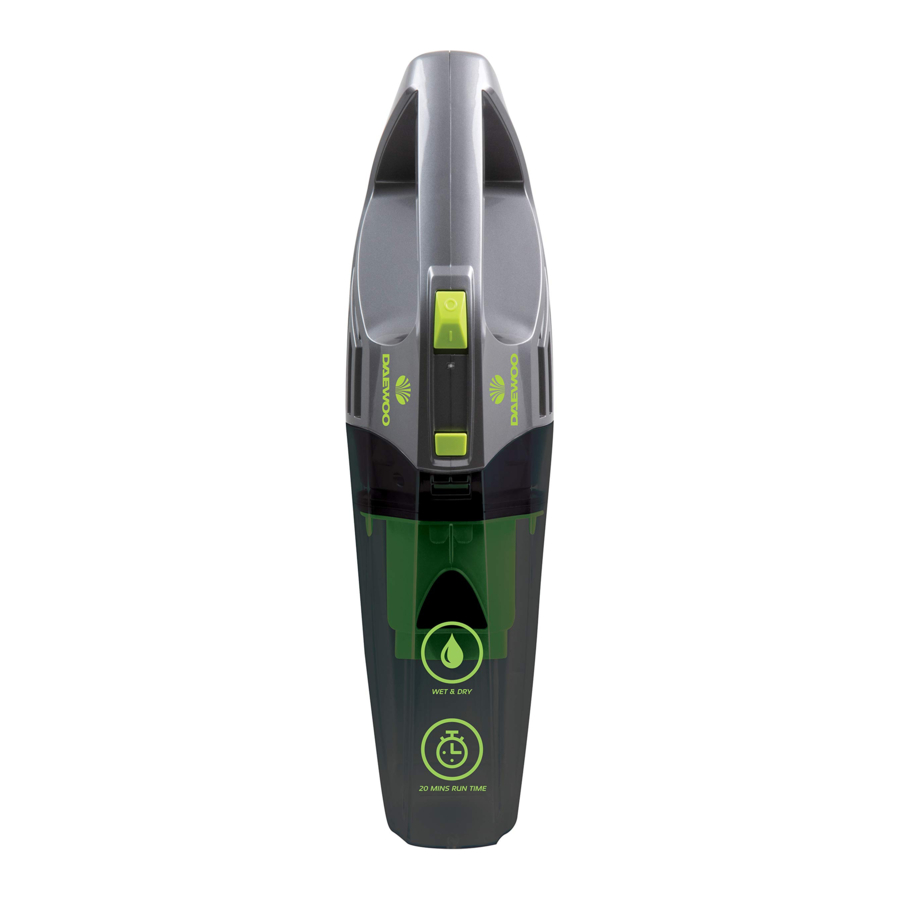

Daewoo FLR00006 - 7.4V Compact Lyte Wet & Dry Vacuum Cleaner Manual

Description of Parts

1. Handle
2. On/off Switch
3. Indicator Light
4. Air Outlet
5. Dust Compartment Release Button.
6. Filter.
7. Dust Compartment
8. Air Intake.
9. Charging Station.
10. Flexible Hose
11. Crevice Tool for hard the get at areas
12. Rubber Nozzle for spillages & liquids
13. Adaptor for hose & brush
14. Brush Attachment.

Before the first time you use your device

Please read these operating instructions thoroughly and keep them in a safe place for future reference.
Remove all packing materials and discard responsibly.

Charging the internal Battery

Before use, please ensure that the internal rechargeable battery is fully charged as follows:

1. Place the vacuum on the charging station as shown below:

2. Plug the Mains Charger into the nearest mains socket.
3. The Indicator Light (3) will light up red to show the internal battery is being charged.
4. Once the battery is fully charged (after approximately 5 hours), the Indicator Light (3) will change to green showing that the internal battery is fully charged and the vacuum is ready to use.

Selecting Your Unit Attachment

Before using the vacuum, attach the appropriate accessory if required as follows:

1. Insert the Crevice Tool (11) or the Rubber Nozzle (12) directly into the Air Outlet (8) of the vacuum as below:

2. Attach the Brush Attachment (14) to the Air Outlet (8) using the Adaptor (13) as below:

3. If the Flexible Hose (10) is required to give a longer reach, attach this to the Air Outlet (8) via the Adaptor (13)
4. Alternatively, the vacuum can be used without any attachment for general cleaning.

Using Your Device

Slide the On/off Switch (2) forward to power up the vacuum. The Indicator Light (3) will illuminate green.

Wet Vacuuming
Fit the Rubber Nozzle (12) to the Air Outlet (8) to vac up small spillages and liquids.
Slide the On/off Switch forward to power up the vacuum.
Empty the Dust Compartment (7) of water immediately after use.

Do not tip the vacuum upwards (as below) whilst vacuuming spillages and liquids. Keep the vacuum horizontal or downwards.

Emptying and Cleaning Your Product

Always disconnect the cleaner from the mains charger before cleaning.

1. Once the Dust Compartment (7) is full it will need emptying and the filter cleaned.
2. To empty the cleaner, hold the Dust Compartment (7) and press the Dust Compartment Release Button (5) and remove the Dust Compartment (7). Lift out the Filter (6) and empty the dust out into a bin.

do not continue to use your vacuum cleaner once the Dust Compartment (7) is full otherwise permanent damage may occur to the appliance.

3. Wash the Filter (6) in warm running water until the Filter (7) is clean. Allow the filter to thoroughly dry for 24 hours before reuse.


Care and Use of your Product

• Always disconnect the cleaner from the mains charger before cleaning.
• Clean outside of the cleaner with a clean damp cloth. Never clean with harsh or abrasive cleaners.
• Do not submerge the cleaner in water or any other liquids.
• Empty the Dust Compartment (7) as soon as it is full.*
• Wash the Filter (6) regularly – see table below.
• Allow the filter to thoroughly dry out for 24 hours before reassembly and reuse.

do not continue to use your vacuum cleaner once the Dust Compartment (6) is full otherwise permanent damage may occur to the appliance.

Recommended filter cleaning intervals

Ensure the filter is cleaned periodically according to the table above, failure to clean the filter regularly will severely impair the performance and permanent damage may occur to the appliance.

NB Do not under any circumstances use the vacuum cleaner with the filter removed as damage to the appliance will occur.

Technical Data

Customer Support

Should you require any product information, replacement parts or accessories, please contact out customer care team at help@daewooelectricals.com or call 0161 831 7879.

Troubleshooting Guide

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed. These instructions should be saved for future reference:

• Read and familiarise yourself with all operating instructions before using this Vacuum Cleaner.
• Before plugging your unit into the mains, visually check that the unit is intact and has not suffered any transit damage.
• Check that the voltage indicated on the data plate corresponds with that of the local network before connecting the appliance to the mains power supply.
• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Children shall not play with the appliance.
• Keep the appliance and its cord out of reach of children less than 8 years when it is energised or cooling down.
• Do not immerse the appliance or its cord in water or any other liquids.
• Do not leave the appliance unattended during use.
• Do not leave the appliance unattended whilst connected to the mains supply.
• Do not use this appliance outdoors.
• It is imperative to unplug the power cord after the appliance has been used, before it is cleaned and whilst being repaired.
• Repairs to electrical appliances should only be performed by qualified personnel. Improper repairs may place user at serious risk.
• Do not operate this appliance with a damaged mains adaptor or cable, after a malfunction or after being dropped or damaged in any way.
• Regular, periodic checks should be carried out on the mains adaptor cable to ensure no damage is evident. Should there be any signs of damage the appliance should not be used.
• If the cable is damaged, it should only be replaced by the manufacturer or a suitable qualified after-sales-service in order to avoid a hazard
• Do not allow the cable to hang over sharp edges or come in contact with hot surfaces.
• Allow the unit to cool before storage.
• Before cleaning, disconnect the appliance from the mains supply and allow to cool.
• This appliance is intended for household use only and should not be used for industrial purposes.
• Do not use any accessories or attachments with this appliance other than those supplied or recommended by supplier.
• Do not use this appliance for anything other than its intended use.
• Do not push objects into any openings as damage to the appliance and/or electric shock may occur.
• Unplug after each use. Grasp the mains adaptor, not the cable.
• Do not pull or carry the Vacuum Cleaner by the electrical cable, use the handle provided.
• Ensure fingers and other objects are never placed in any part of the vacuum cleaner. Clothing or hair may become trapped if the vacuum is used improperly.
• Keep hair, loose clothing, jewellery, fingers and all parts of the body away from openings and moving parts.
• Keep all air vents clear and free of dust, lint, hair and anything else that may reduce airflow.
• Avoid directing the appliance towards naked flames as the air discharged may extinguish gas fires or pilot lights and may disturb ashes in open fires.
• Do not Vacuum hot ashes or lit cigarettes, etc.
• Never use the appliance without the filter in place.
• Do not use the Vacuum with no Dust Tank attached.
• Do not vacuum any large or broken objects such as glass.
• Do not vacuum anything that is burning or smoking such as cigarettes, matches or hot ashes.
• Do not vacuum reactive liquids (solvents, corrosives, detergents)
• Do not vacuum flammable or explosive substances such as alcohol, thinners etc.
