Konect PROGRAM CARD User Manual

Thank you for purchasing the program card for the
brushless ESC (Electronic Speed Controller). The program
card has a friendly user interface; you can easily set the
programmable parameters of the ESC with this device. It is
pocket-sized, so you can take it to the racing or flying field
conveniently.
Please refer to the user manual of the ESC for detail
information about each programmable item.

SPECIFICATION

1. Input Voltage : 4.8-8.4V
1. Size: 88mm*58mm*14mm
2. Weight: 40g

WIRING SEQUENCE

The programming port of KONECT ESC's is also
the fan port, so you need to unplug the fan first
and then plug (one end of) the programming
cable in the PRG/FAN port and the other end
(of the programming cable) in the ESC port on
the LCD program box
Please don't use the throttle control cable
(also called Rx cable) on the ESC to connect
the program card/box, otherwise the program
card/box won't function.
Note: It takes several seconds for program card to
communicate with speed controller before the LEDs
lights, please wait patiently.

OPERATION

Press the "ITEM" button to select the programmable items
in a loop. The serial number of the programmable items will
be shown by 2 digit LEDs marked with "ITEM", and the
current option corresponding to the selected programmable
item will be shown by another digit LED marked with
"VALUE". Press the "VALUE" button to choose the
parameter value you need.
After that, press the "OK" button, a bright "−" symbol
appears, that means the new setting is accepted and stored
in the ESC.
The "RESET" button is used for restoring all the items of the
ESC to the default settings.

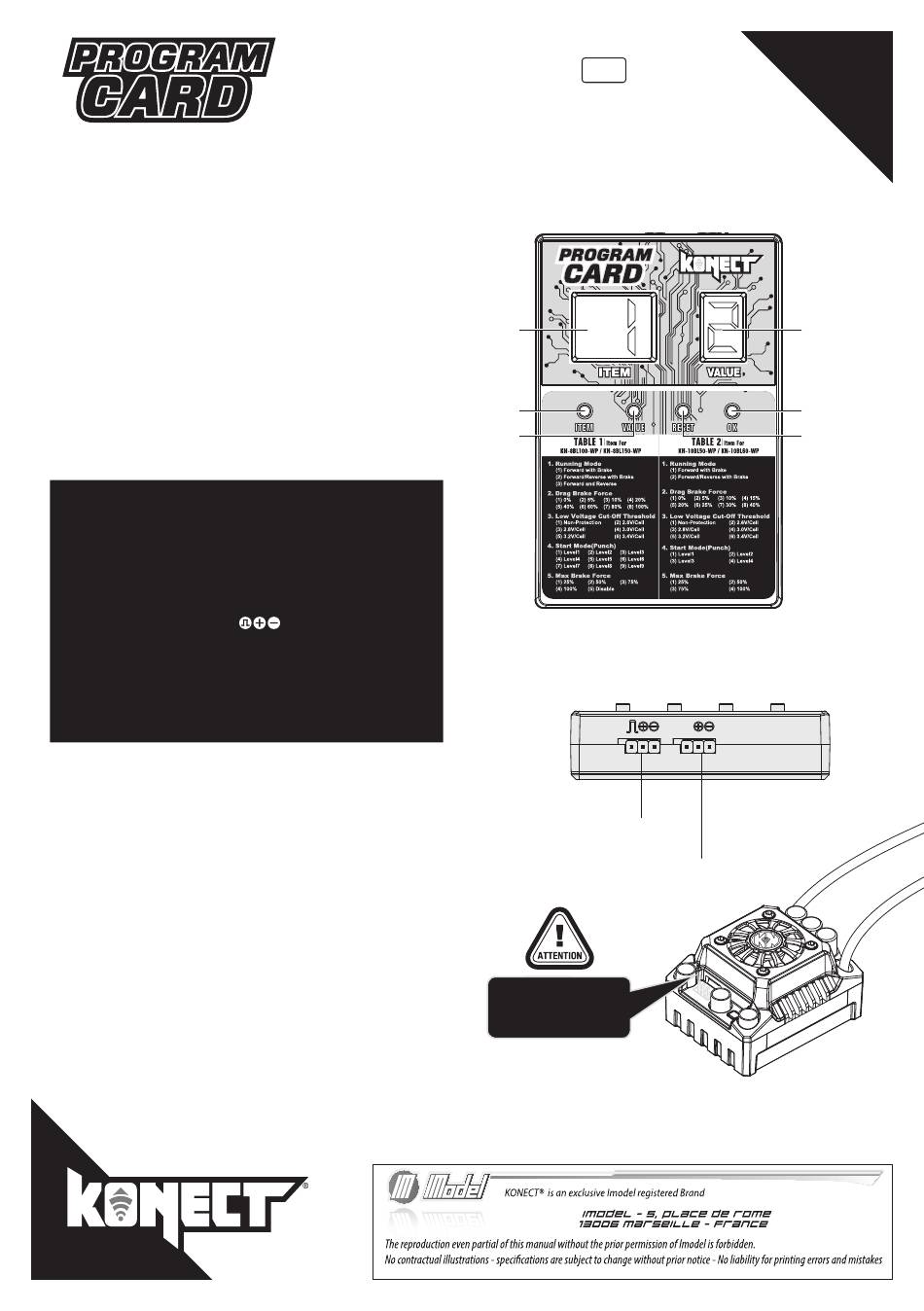

USER MANUAL
LED display
for displaying
programmable items
ITEM Button
VALUE Button
.
ENG
Programming Port
Don't use this port
External Programming
Port for Connecting
Program Card.
LED display
for displaying
parameter values
OK Button
RESET Button
