AGRI-COVER SNOWSPORT Pro Utility Blade Installation Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

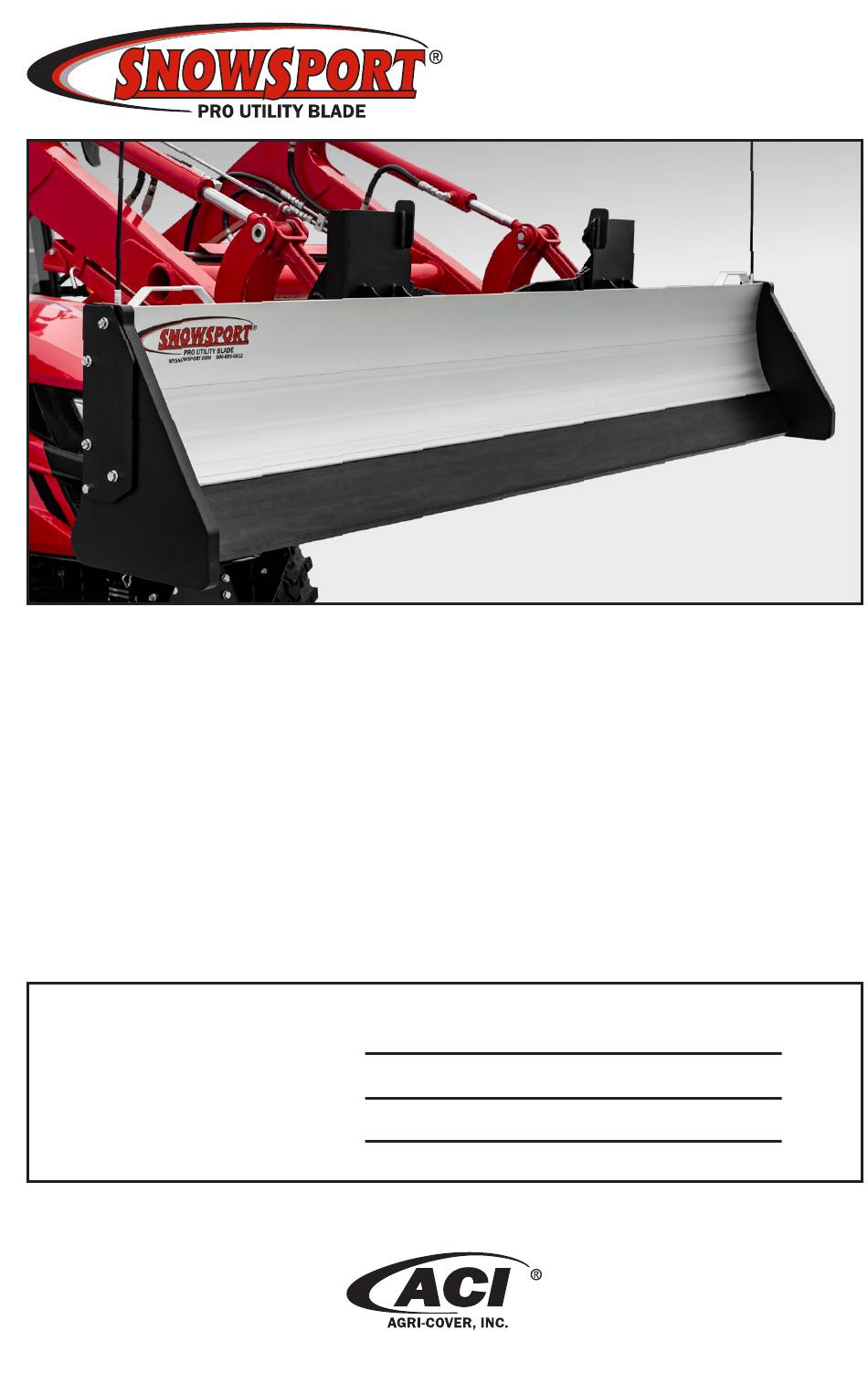

INSTALLATION INSTRUCTIONS
Thank you for purchasing SNOWSPORT
Pro Utility Blade. Agri-Cover, Inc. proudly
®
manufactured this snowplow using superior quality materials and workmanship. With
proper care, your snowplow will provide years of service and enjoyment.
NOTICE TO INSTALLER: Even if familiar with product, read instructions prior to
installation as improvements may be made without notice. Always handle components
with care. If you have questions or problems, have serial number ready and call
customer service. When done, these instructions must be given to the consumer.
NOTICE TO CONSUMER: Before using this product, read safety and operation
sections. Save these instructions for future reference.
FOR YOUR RECORDS
DATE PURCHASED:
WHERE PURCHASED:
SERIAL NUMBER:
(Located on back of snowplow blade)
Questions?
800-689-6612
agricover.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the SNOWSPORT Pro Utility Blade and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AGRI-COVER SNOWSPORT Pro Utility Blade

Summary of Contents for AGRI-COVER SNOWSPORT Pro Utility Blade

  • Page 1 INSTALLATION INSTRUCTIONS Thank you for purchasing SNOWSPORT Pro Utility Blade. Agri-Cover, Inc. proudly ® manufactured this snowplow using superior quality materials and workmanship. With proper care, your snowplow will provide years of service and enjoyment. NOTICE TO INSTALLER: Even if familiar with product, read instructions prior to installation as improvements may be made without notice.
  • Page 2 PREPARATION Unpack snowplow components. For additional installation assistance, go to mysnowsport.com for install and operation videos. CAUTION: SNOWSPORT Pro Utility Blade for use on compact tractors or ® skid steers with quick attach mounting system only! TOOLS NEEDED COMPONENTS • (2) Wood blocks •...

  • Page 3: Safety Information

    SAFETY INFORMATION • Always follow equipment manufacturer recommendations for snowplowing. • Always exercise safety, courtesy and common sense. • Always know the terrain before plowing. • Always wear your seat belt. • Always look where you are going when backing up, don't rely on mirrors or back up cameras.

  • Page 4: Parts Diagram

    PARTS DIAGRAM Blade marker Lift handle End plate Box end...
  • Page 5 Aluminum blade Quick attach plate Rubber cutting edges...
  • Page 6 1: ASSEMBLING SNOWPLOW NOTE: Rubber cutting edges should be room temperature before assembling. NOTE: If installing on a 9' blade, install smaller rubber cutting edges on opposite ends of blade. A. Align groove on front rubber cutting edge with front groove in lower aluminum blade. B.
  • Page 7 1: ASSEMBLING SNOWPLOW E. Turn rubber cutting edge and lower aluminum blade over and set on wood blocks, one at each end. F. Connect tongue and groove joint of upper and lower aluminum blade. Slide upper aluminum blade until centered with lower aluminum blade. TIP: Once upper blade is centered, apply locking pliers on tongue and groove joint to ensure upper and lower aluminum blades remain aligned.
  • Page 8 1: ASSEMBLING SNOWPLOW (Continued) G. Align middle hole on quick attach plate with factory mark on back of blade. Insert (2) square nuts with flat side facing up in top and bottom channels of blade. Slide nuts to quick attach plate and align with holes. H.
  • Page 9 1: ASSEMBLING SNOWPLOW (Continued) K. Use quick attach plates as template to drill 5/16” holes through back layer of aluminum at each factory marked location. L. At tongue and groove joint, drill 5/16" hole through back layer of aluminum at factory mark in v-groove on each end of blade.
  • Page 10 1: ASSEMBLING SNOWPLOW (Continued) O. Center front rubber cutting edge with lower aluminum blade. P. Slide rear rubber cutting edge to one side, then drill 5/16" hole for front rubber cutting edge at factory mark in groove at end of blade, drill only through first layer of aluminum and into rubber.
  • Page 11 1: ASSEMBLING SNOWPLOW (Continued) T. Center rear rubber cutting edge with lower aluminum blade. U. Drill (2) 5/16" holes for rear rubber cutting edge at factory marks in groove at each end of blade, drill only through first layer of aluminum and into rubber. V.
  • Page 12 1: ASSEMBLING SNOWPLOW (Continued) W. Attach aluminum blade to equipment. X. Insert (2) square nuts with flat side up into top channel. Y. Turn hex jam nut with flange side facing down onto threaded base of blade marker and align with hole on lift handle. Bolt blade marker and handle to blade using square nut in channel.
  • Page 13 1: ASSEMBLING SNOWPLOW (Continued) AB. Attach rubber box end and metal end plate to end of blade with (4) 3/8" x 2-1/2" hex bolts. AC. Tighten all bolts until rubber begins to compress to blade. Insert 3/8" x 1-3/4" hex bolt to tighten bottom of rubber to bottom of end plate.
  • Page 14 OPERATING INSTRUCTIONS TO ATTACH BLADE Drive forward slowly, ensure proper alignment and engage universal quick attach mounting interface with quick attach plates. Then, secure quick attach wedge pins. TO PUSH SNOW Lower blade to ground and drive forward slowly. When pass is finished, lift blade to realign for next pass.

  • Page 16: Manufacturer's Limited Warranty

    Goods to be returned must have a pre-authorized RA # (Return Authorization Number) – obtained by calling the number above. Mark the number on the package and ship it freight prepaid to address below. Agri-Cover will pay freight to return goods to sender.
