Hardware Features

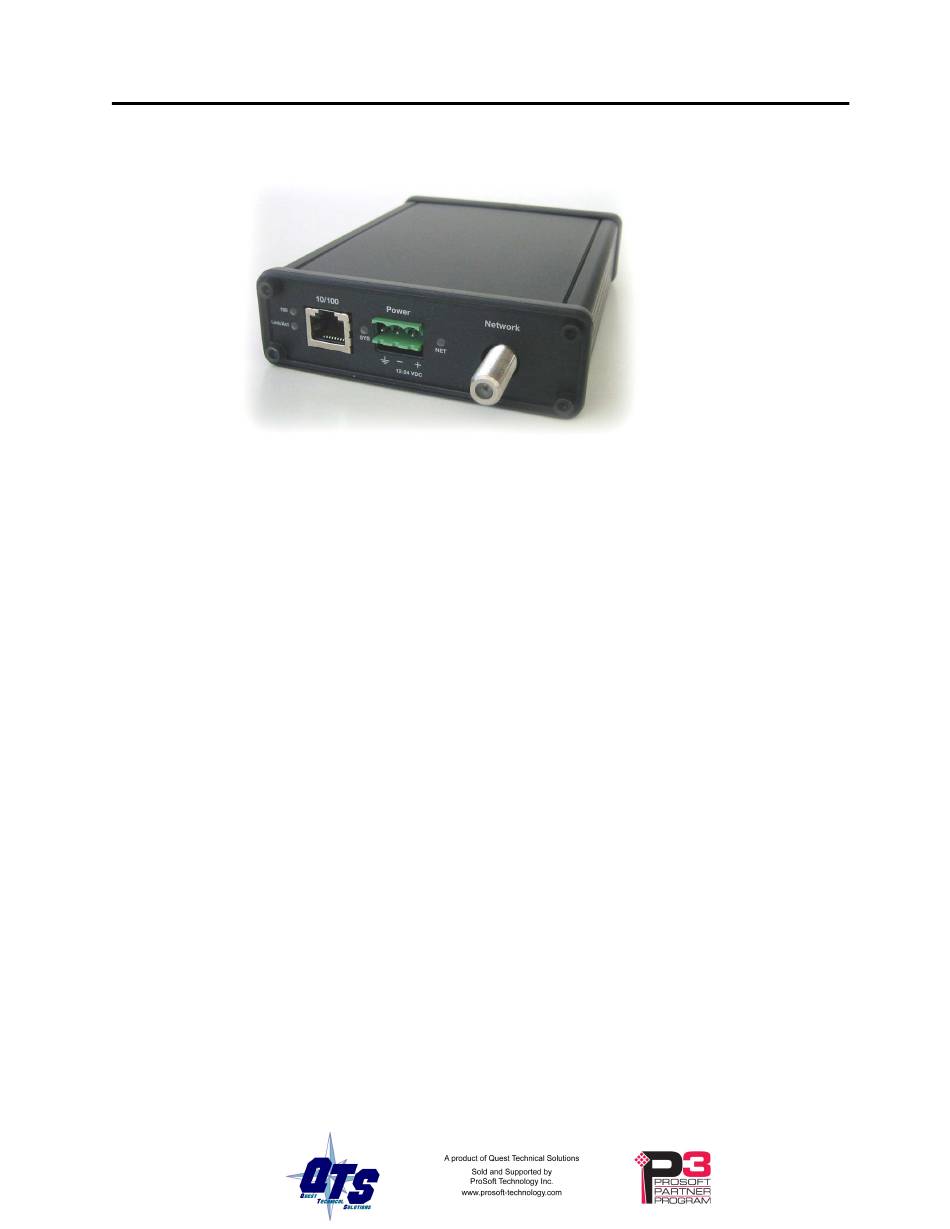

The module has:
• two LEDs to indicate the status of the connection to the Ethernet (100 and Link/Act)
•
an LED to indicate the module's internal state and the state of Ethernet
communication (MS or SYS)
•
an LED to indicate the state of communications on the S908Remote I/O network
(NS or NET)
• an Ethernet connector
•
a power connector
• an F connector to connect to the S908 remote I/O network
A watchdog timer is implemented in the module's hardware. If the firmware does not
kick the watchdog within the timeout period the watchdog times out and places the
module into a safe fatal failure state.

Package Contents

•
AN-X3-MOD module
• 3 pin Phoenix power connector
Current firmware and documentation are at qtsusa.com/dist
