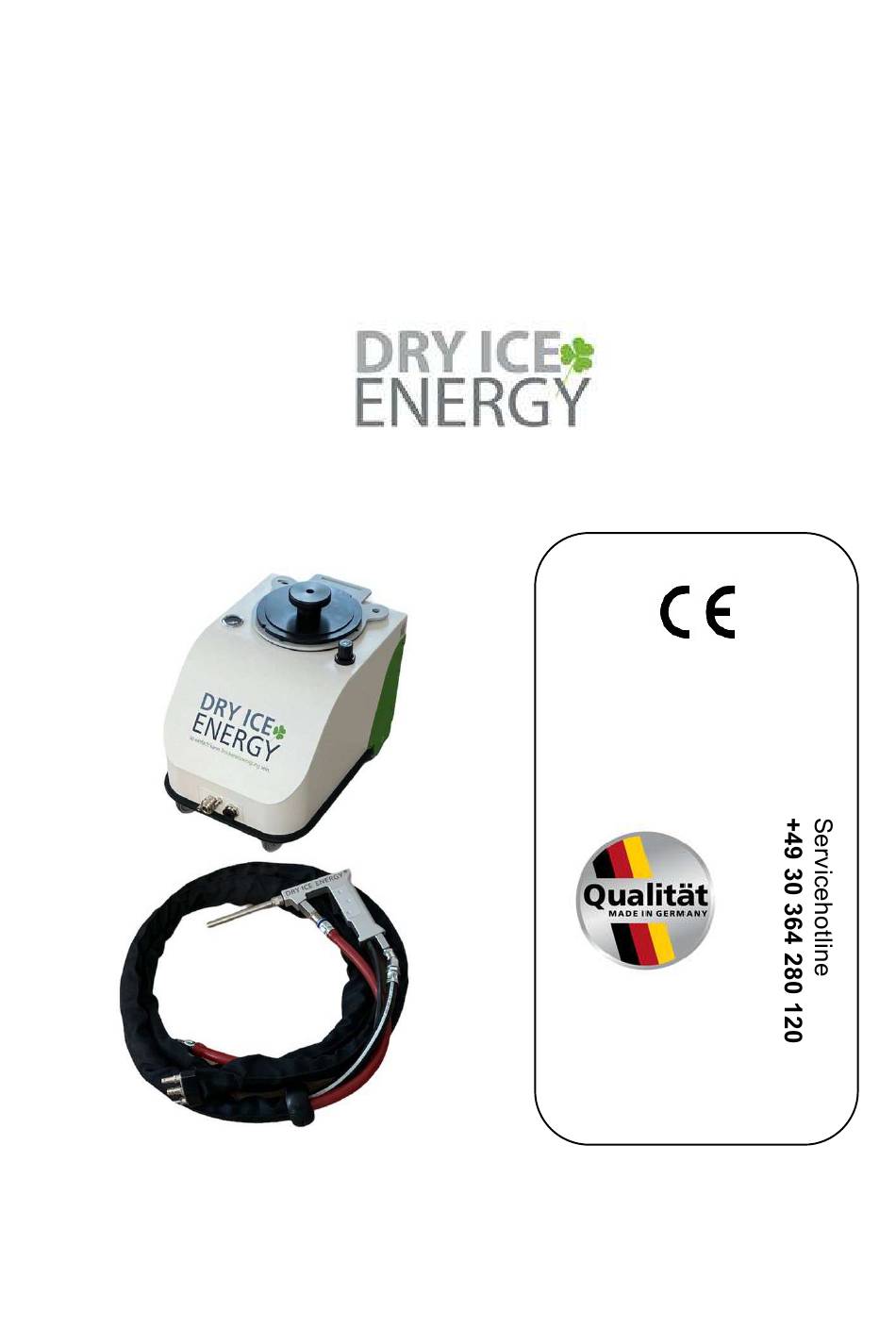

- Page 1 Dry ice cleaning device Champ Vario Made in Germany www.DryIceEnergy.com Wiebestr. 36-37 10553 Berlin...
- Page 2 Preliminaryremarks Thank you very much for choosing our champ vario dry ice blasting machine! Before using the blasting device, please first familiarize yourself with the device and read the operating instructions. In doing so, they avoid dangers for themselves and others.
-
Page 3: Table Of Contents
4 Safety ....................5 5 Directives and regulations..............6 6 Procedure description................ 9 7 Technical data Champ Vario ............10 8 Construction of the Champ Vario ........... 11 9 commissioning ................15 10 Finishing the blasting work ............19 11 transport ..................20 12 maintenance .................. -
Page 4: Scope Of Delivery/Standard Accessories
1 Scope of delivery/standard accessories Dry ice blaster Champ Vario Pressure regulator with filter 7m compressed air hose (max. permissible working pressure 10bar) Ice shovel Ground cable (optional) operating instructions... -
Page 5: Environmental Protection
2 environmental protection Dry-Ice-Energy is committed to comprehensive environmental protection. All packaging materials are recyclable. Please recycle the packaging or, if possible, keep the packaging for reuse. For our 24-day exchange service, we use the transport packaging several times. Waste equipment contains valuable recyclable materials that should be recycled. -
Page 6: Safety
4 Safety danger Denotes an imminent danger. If the information is not followed, there is a danger to life or serious bodily injury can be theresult. warning Denotes a possibleannual situation. If the information is not followed, there is a danger to life or serious bodily injury can be the result. -
Page 7: Directives And Regulations
BGR 117 + BGI 534 Working in confined spaces BGI 836 gas detector Observe general safety rules! If cleaning with the Champ Vario results in dusts thatare hazardous tohealth, appropriate safety measures must be taken before the start of the work. Safety instructions attached to the Champ Vario... - Page 8 caution Avoid direct skin contact with CO2 pellets! Risk of cold combustion due to dry ice or cold equipment parts. Dry ice has a temperature of -79°C. Dry ice and cold equipment parts never touch unprotected. When working on the device, wear suitable cold protective clothing or remove dry ice and let it warm up.
- Page 9 danger When blasting in closed rooms, provide enough fresh air! Set up suction near the ground. CO2 is heavier than air! Risk of suffocation due to carbon dioxide. The dry ice pellets are made of solid carbon dioxide. When operating the device, the carbon dioxide content of the air at the workplace increases.
-
Page 10: Procedure Description
Secure gun with sliding valve. By turning on the compressed air connection, interrupt compressed air supply. 6 Procedure description The Champ Vario dry ice blasting machine works with granules made of dry ice pellets (1.5mm), whichis produced by pressing CO snow. -
Page 11: Technical Data Champ Vario
7 Technical data Champ Vario 520 mm length 330 mm width 360 mm height 13 kg tare 3 kg Dry ice filling capacity 4kg/h – 38kg/h at 5.5 bar beam pressure, Dry ice consumption per according to set consumption quantity and pellet size used min. -
Page 12: Construction Of The Champ Vario
8 Construction of the Champ Vario Housing with integrated dry ice container jet gun holders (round or flat nozzle) Jet gun Pressure air connection at the back of the device Ice pellet hose - red Pressure air hose - black (maximum permissible supply pressure 10 bar) - Page 15 antistatic rollers...
-
Page 16: Commissioning
Connection to the dry ice blasting device Pressure regulator with water separator Connection compressed air supply Mount pressure regulators on the dry ice blasting device. If the system-side requirements (pressure regulator, water separator) are met at the place of use, the pressure regulator can be dispensed with. - Page 17 hint Before filling with dry ice, press the device in the empty state for 5 seconds. This prevents the pellet dosing when filled with dry ice. Risk of damage to the device. Ausfinally use blasting agents approved by Dry Ice Energy.
- Page 18 When these signs appear, immediately turn off the device and go out into the fresh air. Before continuing work improve ventilation measures or use breathing apparatus. The Champ Vario must not be operated in an explosive environment! During the cleaning process, the cleaning object can charge electrically. commissioning: Compare the air supply (available pressure, capacity, temperature and humidity) with the given values.
- Page 19 6 - 10 bar for heavy soiling Activate compressed air supply by sliding valve. Hold the beam gun securely in your hand. first Dry ice jet by actuating the trigger activate 5 sec. without dry ice "blow through". Fill dry ice pellets with the supplied ice cream sundae into the dry ice container. During filling, it should be noted that no foreign objects fall into the dry ice container.
-
Page 20: Finishing The Blasting Work
10 Finishing the blasting work If there is still dry ice in the funnel, the Champ Vario will shine completely empty. As soon as no more pellets come out of the jet nozzle you radiate about 10 sec. further to completely empty the jet hose. -
Page 21: Transport
11 transport Before transport, perform all the steps in the chapter "Finishing the blasting work". Attach device to transport vehicle with tension straps. danger Risk of accident due to dry ice residues in the device. Before transport in closed vehicles or when parking in small unventilated rooms e.B. lift, the dry ice must be completely removed from the device. -
Page 22: Maintenance
Due to the pneumatic design of the Champ Vario, there is an extremely low maintenance requirement. However, control before each use is very important. The Champ Vario is factory designed in such a way that only a few components require maintenance; you can carry out the following work yourself. -
Page 23: Operational Fault Analysis
14 Operational fault analysis Cause Solution disturbance Keine Druckluft an der Pistole Connect compressed air – Switch on the main switch on the compressor – Open sliding valve (9) on the gun No pellet production Kinked pellet hose Pellets cannot be sucked in Pellet hose check kinks... - Page 24 hint In case of irregular ice flow when blasting - backtoss: Put the pistol with the nozzle into the bore provided in the lid. Press the gun vigorously against the lid. Actuate the trigger lever until a uniform flow of air flows out of the openings of the lid.
-
Page 25: Warranty And Service Documentation
15 Warranty and service documentation The warranty has a validity period of 12 months after delivery. For an assessment of the warranty, the spare part or the machine must be sent to the company Dry-Ice-Energy GmbH. The warranty does not cover defects that are wholly or partly the result of: ... - Page 26 Shipping requirements: In the event of a return shipment of the Champ Turbo, the original box must be used if possible. This was specially designed for the Champ Turbo and guarantees the highest possible protection of the machine against transport damage. The Champ Turbo should also be protected by damping material from abrupt blows to the packaging or the falling of the carton.
- Page 28 Service Documentation...
- Page 29 Service Documentation...
