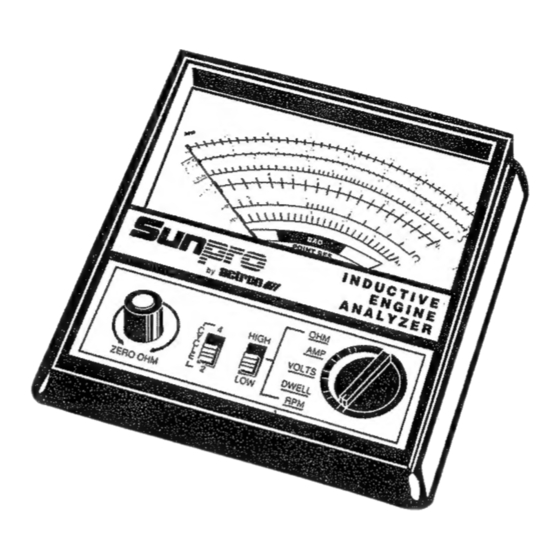

Actron Sunpro CP7673 Operating Instructions Manual

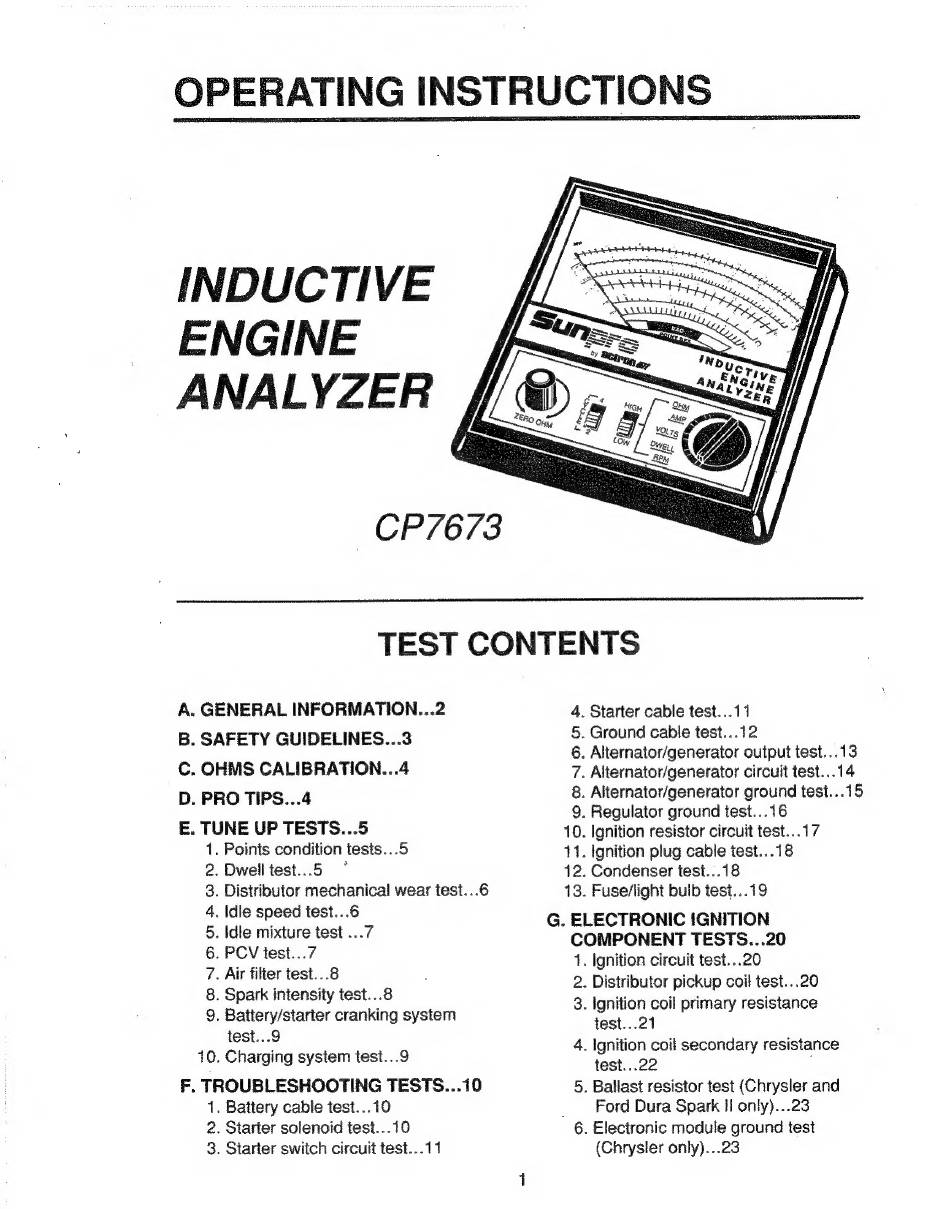

OPERATING INSTRUCTIONS
INDUCTIVE
ENGINE
ANALYZER
CP7673
moowD >
F.
TEST CONTENTS
. GENERAL INFORMATION...2
. SAFETY GUIDELINES...3
. OHMS CALIBRATION...4
. PRO TIPS...4
. TUNE UP TESTS...5
. Points condition tests...5
Dwell test...5 `
. Distributor mechanical wear test...6
. Idle speed test...6
. Idle mixture test ...7
. PCV test...7
. Air filter test...8
. Spark intensity test...8
. Battery/starter cranking system
test...9
10. Charging system test...9
TROUBLESHOOTING TESTS...10
1. Battery cable test...10
2. Starter solenoid test...10
3. Starter switch circuit test...11
4. Starter cable test...11
5. Ground cable test...12
6. Alternator/generator output test...13
7. Alternator/generator circuit test...14
8. Alternator/generator ground test...15
9.
10
11
12
13
Regulator ground test...16
. Ignition resistor circuit test...17
. Ignition plug cable test...18
. Condenser test...18
. Fuse/light bulb test...19
G. ELECTRONIC IGNITION
COMPONENT TESTS...20
1.
2.
3.
4.
Ignition circuit test...20
Distributor pickup coil test...20
ignition coil primary resistance
test...21
Ignition coil secondary resistance
test...22 i
. Ballast resistor test (Chrysler and
Ford Dura Spark li only)...23
Electronic module ground test
(Chrysler only)...23
