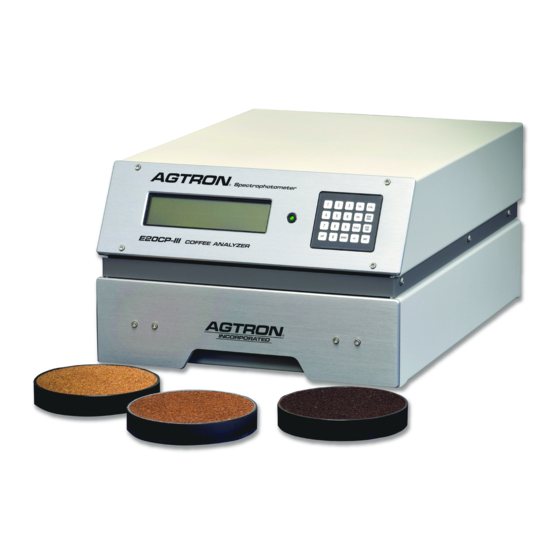

- Page 1 AGTRON COFFEE ROAST ANALYZER E20CP-III OPERATIONS MANUAL Software Version IR128-S5.0 & IR128-S5.5 USB/ADT 2020 Special Application Spectrophotometer AGTRON INCORPORATED 9395 Double “R” Boulevard Reno, NV 89511 PHONE: 1-775-850-4600 FAX: 1-775-850-4611 Made in the USA...
- Page 2 50 and 75, and specialty coffees between 30 and 65. CONCLUSION The E20CP-III evaluates the manner in which selected compounds in roasted coffee change relating to beverage olfactory and organoleptic development. This method of analysis is insensitive to color anomalies and provides...
-
Page 3: Table Of Contents
VIII. ACCESSING & EDITING THE CUSTOM SCALE VARIABLES / Page 13 IMPROVING ANALYTICAL ACCURACY AND REPEATABILITY / Page 16 NON-STANDARD SCALE CALIBRATION / Page 17 CONNECTING THE E20CP-III TO PC OR DATA ACQUISITION SYSTEM / Page 19 XII. E20CP-III ANALYZER & CALIBRATION DISK RECERTIFICATION / Page 21 XIII. -
Page 4: Initial Analyzer Set-Up
IMPORTANT: Keep the box and all packing material. Any unit returned to Agtron for service must be shipped in the original packaging or Agtron will not accept the unit. The carton contains the following items: - E20CP-III Analyzer - Power Cord - Large Diameter Yellow Life Disk - Two Plastic Sample Dishes - Smaller Diameter Two-Sided Red / Black Calibration Disk &... - Page 5 NOTE: The power switch for the E20CP-III is on the back panel next to the power-cord connector. Always leave the unit on for best accuracy and stability; it uses very little power, about as much power as a 15-watt light bulb.
-
Page 6: E20Cp-Iii Keypad Legend & Analyzer Functions
Open the drawer by pulling the panel straight-out from the unit until the drawer hits the stop bumper. When using the E20CP-III, it is necessary to pull the drawer out fully until the stop is contacted to initialize auto-calibration. -
Page 7: Setting The Date & Time
III. SETTING THE DATE / TIME • Momentarily depress the [DATE/TIME] key on the function keypad Current date and time settings will be displayed as follows: MM:DD:YY= (Month:Day:Year) / HH:MM:SS = (Hours:Minutes:Seconds) The bottom of the display will alternate between the following three statements: [SKIP] KEY EXITS - and - [+/ -] SET DATE/TIME... -
Page 8: Assigining An Analyzer Unit Identification Number
IV. ASSIGNING A UNIT IDENTIFICATION NUMBER TO THE E20CP-III This function is useful when data is being transmitted from multiple Agtron analyzers. If programmed, a Unit Number will accompany the data transfer and allow data to be easily tracked to the machine of origin. -
Page 9: Standard Calibration Procedure
24-hour cycle when the time reaches 00:00:01. The E20CP-III also automatically calibrates each time the sample drawer is opened. It reads the Yellow Life Disk under the drawer and adjusts to a reference established during the standard calibration procedure. - Page 10 CALCULATING SCALE Followed momentarily by: ** REFRENCES SAVED ** The display finally shows: <<< COFFEE MODE >>> 10) Return the two-sided disk & dish set to its storage box and close the lid THE E20CP-III IS NOW READY FOR OPERATION...
-
Page 11: Testing Coffee Samples
V. TESTING COFFEE SAMPLES Sample Preparation The E20CP-III is designed to evaluate both whole bean and ground samples. A sample can first be analyzed as whole bean and then as ground. The difference between the two scores approximates how uniformly or non- uniformly the sample is roasted. -
Page 12: Selecting The Analytical Scale
The Gourmet Scale offers higher resolution (shows a greater difference in scores between two roast classifications) Custom Scale allows the user to modify the E20CP-III Commercial Scale scores with the following equation: QMS = A x (S x S) + (B x S) +/- C (See Section VII. -
Page 13: Accessing & Editing The Custom Scale Variables
The Custom Scale will only be active if it is selected in Section VI. Custom Scale Score represents the E20CP-III Commercial Scale score as modified by the equation: (Custom Scale Score) QMS = A x (S x S) + (B x S) +/- (C) - Page 14 Key-in the desired A value and depress the [ENTER] key to save and move to the B variable << CUSTOM – SCALE >> The display first shows: QMS = A x (S x S) + B x (S) + C Followed by the top line of the display showing: QMS = A x (S x S) + (B x S) + C alternating with...
- Page 15 The display will show: <<< COFFEE MODE >>> NOTE: When all of the Custom Scale variables are set to the default values, the analyzer will display the root AGTRON E20CP-III Commercial Scale score when the Custom Scale is selected...
-
Page 16: Improving Analytical Accuracy And Repeatability
Time from Roasting / Cooling / Grinding to Analysis Once coffee is roasted it begins to decompose. Since the E20CP-III is a system based on chemistry analysis, it will see the change of decomposition much in the same way you taste it in the cup. A sample’s score can change (lower) as much as 4 points in 24 hours. -
Page 17: Non-Standard Scale Calibration
IX. NON-STANDARD SCALE CALIBRATION CALIBRATING THE ANALYZER TO READ COFFEE SAMPLES TO USER ASSIGNED SCORES This procedure may be used to calibrate the E20CP-III to user defined product standards a) Prepare a ground light sample of known score, Agtron 55 score or higher... - Page 18 Fully close the sample drawer and allow the analyzer to read the black side of the calibration disk: Record the new Black-Disk value: ________________ ● The analyzer will store these new calibration disk values in memory for all future calibrations until they are user edited THE E20CP-III IS NOW READY FOR OPERATION...
-
Page 19: Connecting The E20Cp-Iii To Pc Or Data Acquisition System
• Download the D2XX software compatible with the computer’s operating system. There are detailed installation guides on the D2XX page which can be found under the Driver Menu side bar. • Once the software has been downloaded and activated, connect the E20CP-III USB to the computer... - Page 20 OFF. No data will be transmitted unless the [SEND DATA] key is depressed. Note: • There is no handshaking capability between the E20CP-III and a connected PC or data acquisition system. All standard analyzer functions operate independently and according to this Owner’s Manual...
-
Page 21: E20Cp-Iii Analyzer & Calibration Disk Recertification
XI. E20CP-III ANALYZER & CALIBRATION DISK RECERTIFICATION WHY DO I NEED TO PERIODICALLY RE-CERTIFY MY CALIBRATION DISKS and ANALYZER? Periodically correlating the disk values to recently certified coffee samples will compensate for changes that occur to the disks over time and will re-establish the analyzer’s accuracy. -
Page 22: Periodic Maintenance
CAUTION: Use very light pressure to avoid damaging the LCD RECERTIFYING THE ANALYZER & CALIBRATION DISKS The E20CP-III and the two-sided calibration disk set should be periodically recertified to maintain analyzer accuracy. Consult page 19 for the recertification procedure. IMPORTANT OPERATION NOTES ... -
Page 23: Agtron Ground Score Roast Development Correlation
XIII. AGTRON GROUND SCORE ROAST DEVELOPMENT CORRELATION CLASSIFICATION GOURMET SCALE COMMERCIAL SCALE SCAA COLOR TILE Coffee-Like 95.0 -NO TILE- Under-Developed 82.8 -NO TILE- Extremely Light 71.7 ► 68.0 -NO TILE- Very Light 64.3 60.6 -NO TILE- Light 56.9 53.1 -NO TILE- Medium Light 49.4 45.7... -
Page 24: Warranty Information
XIV. WARRANTY INFORMATION WARRANTY Agtron Incorporated warrants this product to be free of defects in material and workmanship for a period of One Year from the date of the original invoice. This warranty is only valid to the original purchaser. This warranty does not extend to Agtron equipment used for any purpose other than its intended application, to external appearance, to damage resulting from improper installation, to damage caused by severe line voltage irregularities, or if the equipment... -
Page 25: Ce Certificate & Declaration Of Conformity
XV. CE CERTIFICATE & DECLARATION of CONFORMITY...
