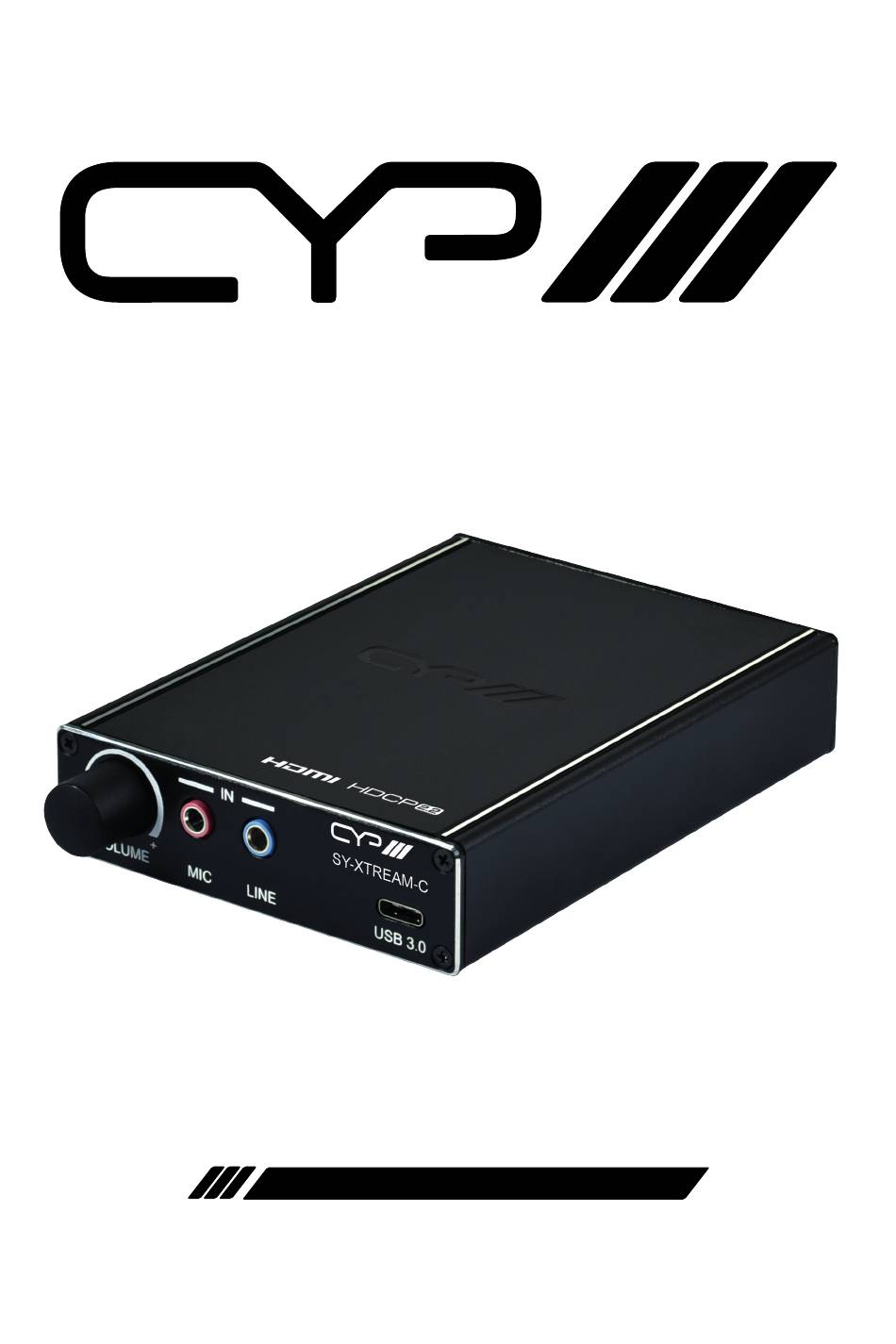

- Page 1 SY-XTREAM-C HDMI to USB-C Capture with HDMI Bypass OPERATION MANUAL...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. CYP (UK) Ltd assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ..........1 3. Package Contents .........1 4. System Requirements ........1 5. Features ............2 6. Operation Controls and Functions ....3 6.1 Front Panel .............3 6.2 Rear Panel ...............4 7. Connection Diagram ........5 8. Specifications ..........6 8.1 Technical Specifications ........6 8.2 Video Specifications..........7 8.3 Audio Specifications ...........9 8.3.1 Digital Audio ..........9... -
Page 6: Introduction
1. INTRODUCTION This HDMI to USB video capture recorder with HDMI bypass can support resolutions up to 4K UHD (18Gbps) with HDR via the bypass path while simultaneously streaming the audio and video signal at up to 4K@30Hz to a USB connected PC for capture or re-broadcast. In addition to the embedded HDMI audio, a second audio stream can also be captured from the line input, mic input, or both mixed together for use in your streaming projects. -
Page 7: Features
5. FEATURES HDMI input and output supports up to 4K@60Hz with HDR bypass HDCP 2.2 and HDCP 1.x compliant Note: Video capture of sources using HDCP encryption is not supported. USB 3.0 connection allows uncompressed video and audio data capture (up to 4K@30Hz, LPCM 2.0) Note: 4K sources with framerates higher than 30Hz are automatically converted to 4K@30Hz for USB capture. -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel HDMI HDCP AUDIO SELECT PWR LED: This LED will illuminate to indicate the unit is on and receiving power. ACT LED: When software on the connected PC is actively receiving video from the unit via USB, this LED will illuminate green. HDCP LED: This LED will illuminate when the source has HDCP content. -
Page 9: Rear Panel
6.2 Rear Panel SY-XTREAM-C VOLUME LINE USB 3.0 VOLUME Knob: Press the knob to toggle the secondary captured audio channel source between the Line, Mic, and Line+Mic modes. Turn the knob to adjust the volume of the currently selected source. -
Page 10: Connection Diagram
7. CONNECTION DIAGRAM Microphone CD Player Laptop USB 3.0 Cable SY-XTREAM-C VOLUME LINE USB 3.0 HDMI HDCP AUDIO SELECT HDMI HDMI Input Output Game Console... -
Page 11: Specifications
8. SPECIFICATIONS 8.1 Technical Specifications HDMI Bandwidth 18Gbps USB-C Bandwidth 21.6Gbps Input Ports 1×HDMI (Type-A) 1×Analog Stereo (3.5mm) 1×Analog Mono (3.5mm) Output Ports 1×HDMI (Type-A) 1×USB 3.0 (Type-C) Power Supply Provided via USB 3.0 ESD Protection (HBM) ±8kV (Air Discharge) ±4kV (Contact Discharge) Dimensions (W×H×D) 84mm×23mm×113mm [Case Only]... -
Page 12: Video Specifications
8.2 Video Specifications Input Output Supported Resolutions (Hz) HDMI HDMI USB-C 720×400p@70/85 640×480p@60/72/75/85 720×480i@60 720×480p@60 720×576i@50 720×576p@50 800×600p@56/60/72/75/85 848×480p@60 ... - Page 13 Input Output Supported Resolutions (Hz) HDMI HDMI USB-C 1920×1080p@24/25/30 1920×1080p@50/60 1920×1200p@60RB 2560×1440p@60RB 2560×1600p@60RB 2048×1080p@24/25/30 2048×1080p@50/60 3840×2160p@24/25/30 3840×2160p@50/60 (4:2:0) ...
-
Page 14: Audio Specifications
8.3 Audio Specifications 8.3.1 Digital Audio HDMI Input / Output LPCM Max Channels 8 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream Supported Formats Standard & High-Definition USB-C Capture LPCM Max Channels 2 Channels Sampling Rate (kHz) 32, 44.1, 48, 88.2, 96, 176.4, 192 Bitstream Supported Formats... -
Page 15: Cable Specifications
8.4 Cable Specifications Cable Length High Speed HDMI Cable HDMI Input HDMI Output USB-C Output Bandwidth Category Examples: • HD Video - 720p@60Hz - HDMI transmission rates lower than 3Gbps - HD-SDI (SMPTE 292M, 1.485Gbps) • FHD Video - 1080p@60Hz - HDMI transmission rates between 3Gbps and 5.3Gbps - 3G-SDI (SMPTE 424M, 2.970Gbps) - Page 16 • 8K UHD Video - 4K@120Hz (10/12-bit HDR) - 8K@24/25/30Hz (10/12-bit HDR) & 8K@50/60Hz (4:2:0, 8-bit colour) - HDMI transmission rates between 18Gbps and 48Gbps - 24G-SDI (SMPTE ST 2083, 24Gbps)
-
Page 17: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM 4K UHD 4K Ultra-High-Definition (10.2Gbps max) 4K UHD 4K Ultra-High-Definition (18Gbps max) Analogue-to-Digital Converter Audio/Video Receiver or Recorder Cat.5e Enhanced Category 5 cable Cat.6 Category 6 cable Cat.6A Augmented Category 6 cable Cat.7 Category 7 cable Decibel Digital Visual Interface Gbps... - Page 18 ACRONYM COMPLETE TERM Extended Graphics Array Ω...
- Page 20 CYP (UK) Ltd., Unit 7, Shepperton Business Park, Govett Avenue, Shepperton, Middlesex, TW17 8BA Tel: +44 (0) 20 3137 9180 | Fax: +44 (0) 20 3137 6279 Email: sales@cypeurope.com www.cypeurope.com RDV1...
