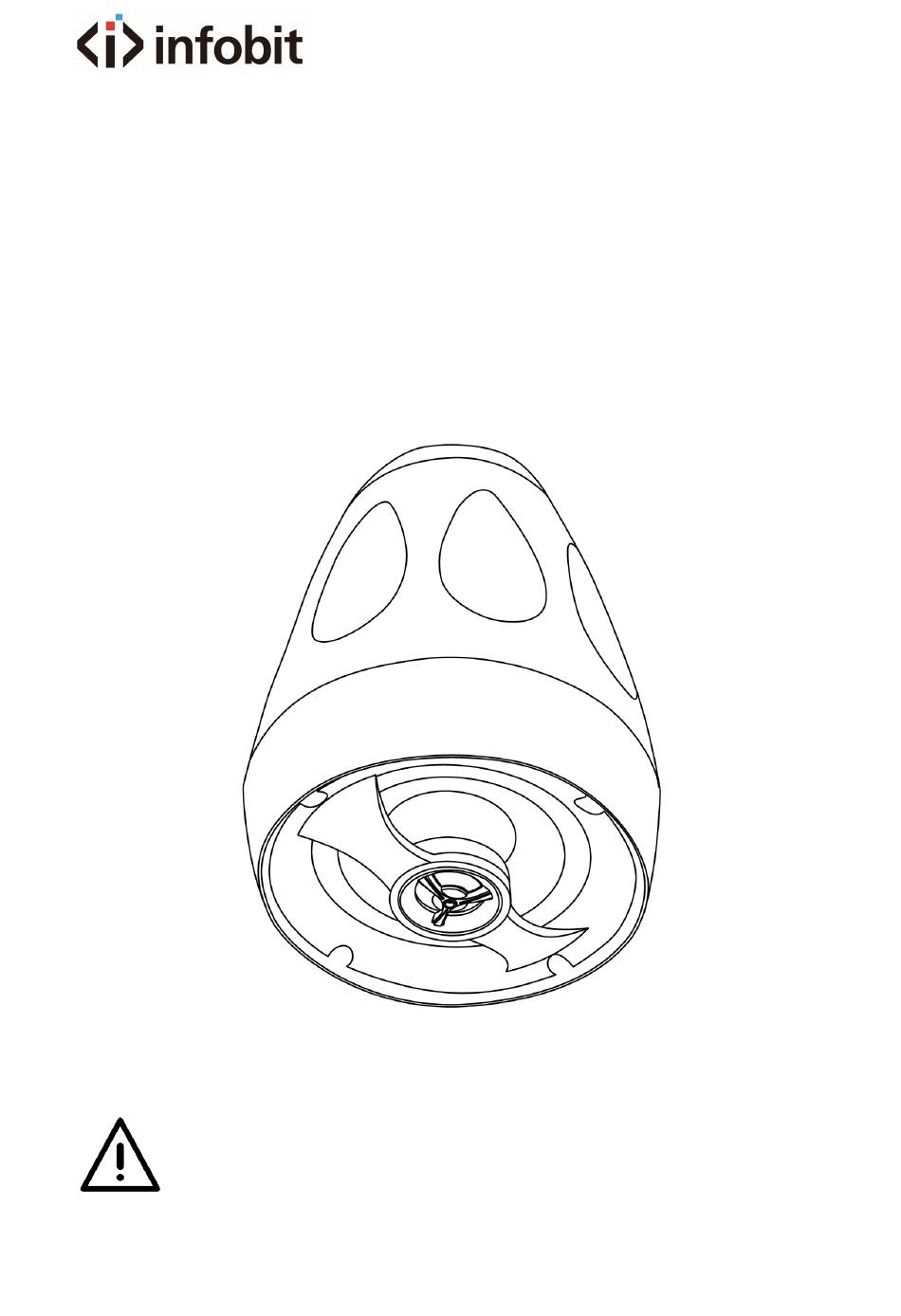

- Page 1 P30B Pendant Speaker 30W, Black User manual V1.0 Caution: Please read this manual carefully before operating. Damage caused by misuse is not covered by the warranty. INFOBIT AV www.infobitav.com info@infobitav.com...
-
Page 2: Safety Precautions
THE PROVIDED INSTALLATION HARDWARE MUST BE USED TO INSTALL THIS PRODUCT. SPEAKERS MUST BE ATTACHED BY A SAFETY CABLE!*** INFOBIT is not responsible for the structural integrity of the installation. Please ensure that a qualified technician installs this product and that the building’s engineer or architect has approved the equipment and installation. - Page 3 DESCRIPTION Designed to meet the needs of open-ceiling applications, the iSpeaker P30B 5.25” indoor pendant speaker is fire-resistant, high-powered, and easy to install. The P30B uses an acoustically matched 5.25” to maximize performance while minimizing the overall footprint of the speaker.
-
Page 4: Installation
SPEC Model iSpeaker P30B Description Pendant Speaker 30W, Black IP Rate IP44 70V Power Taps 30W, 15W, 7.5W, 3.8W and 1.9W 100V Power Taps 30W, 15W, 7.5W, 3.8W 8Ω Speaker 5.25” full range PP woofer speaker system Frequency Response 65-20KHz... -
Page 5: Packing List
Please sue the proper screws, bolts, or anchors (not included). Failure to do so may cause the speaker to become unsecured & cause potential damages/ injuries. PACKING LIST Speaker 1x User Manual 1x Cover 1x Hook 1x Hanging cable 1x INFOBIT AV www.infobitav.com info@infobitav.com... - Page 6 PLEASE NOTE: Ensure no stray (+) and (-) strands touch each other. Touching strands can cause a short circuit that could damage the amplifier. From Power Amplifier To Next Speaker INSTALLATION DIAGRAM Figure #1 Figure #2 Correct Wiring Incorrect Wiring INFOBIT AV www.infobitav.com info@infobitav.com...
-
Page 7: Switch Setup
Zone Remote Control SWITCH SETUP The iSpeaker P30B supports both high voltage and low Impedance (8ohm) power. It is necessary to configure the Speaker Impedance Switch as well as wire up the speakers according to the specific speakers you are using. Switching examples for each of the... - Page 8 3- Switch to 30W position when connect to 8Ω low impedance power. (Follow the blue label) *Note: Do not switch to this 8Ω 30W position when connect 70V/100V high voltage power, otherwise the speaker may be damaged! INFOBIT AV www.infobitav.com info@infobitav.com...
-
Page 9: Limited Warranty
INFOBIT product, they will replace your product or return it to INFOBIT for repair, at their discretion. Proof of purchase in the form of a bill of sale or receipted invoice, which is evidence that this product is within the warranty period, must be presented to obtain warranty service.
