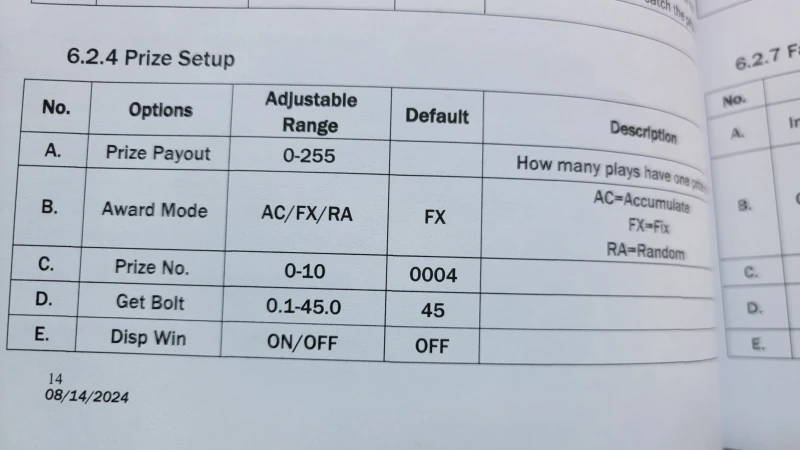

What does "Get Volt" do? (In the .manual it says "Get Bolt". I'm assuming it's just a typo.

User image 67aab4272eecd
0

Subscribe to Our Youtube Channel

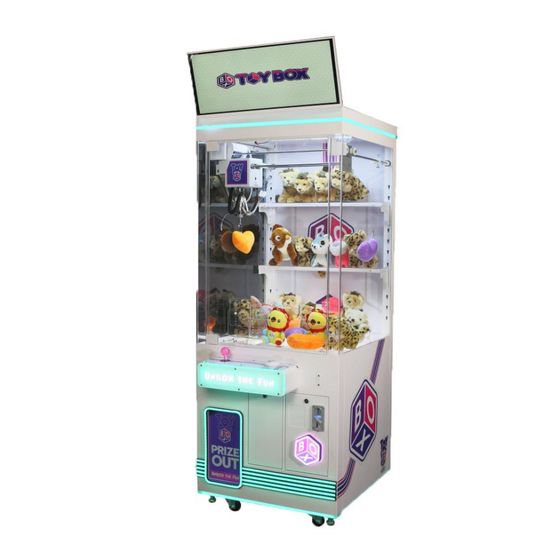

Summary of Contents for UNIS TOYBOX

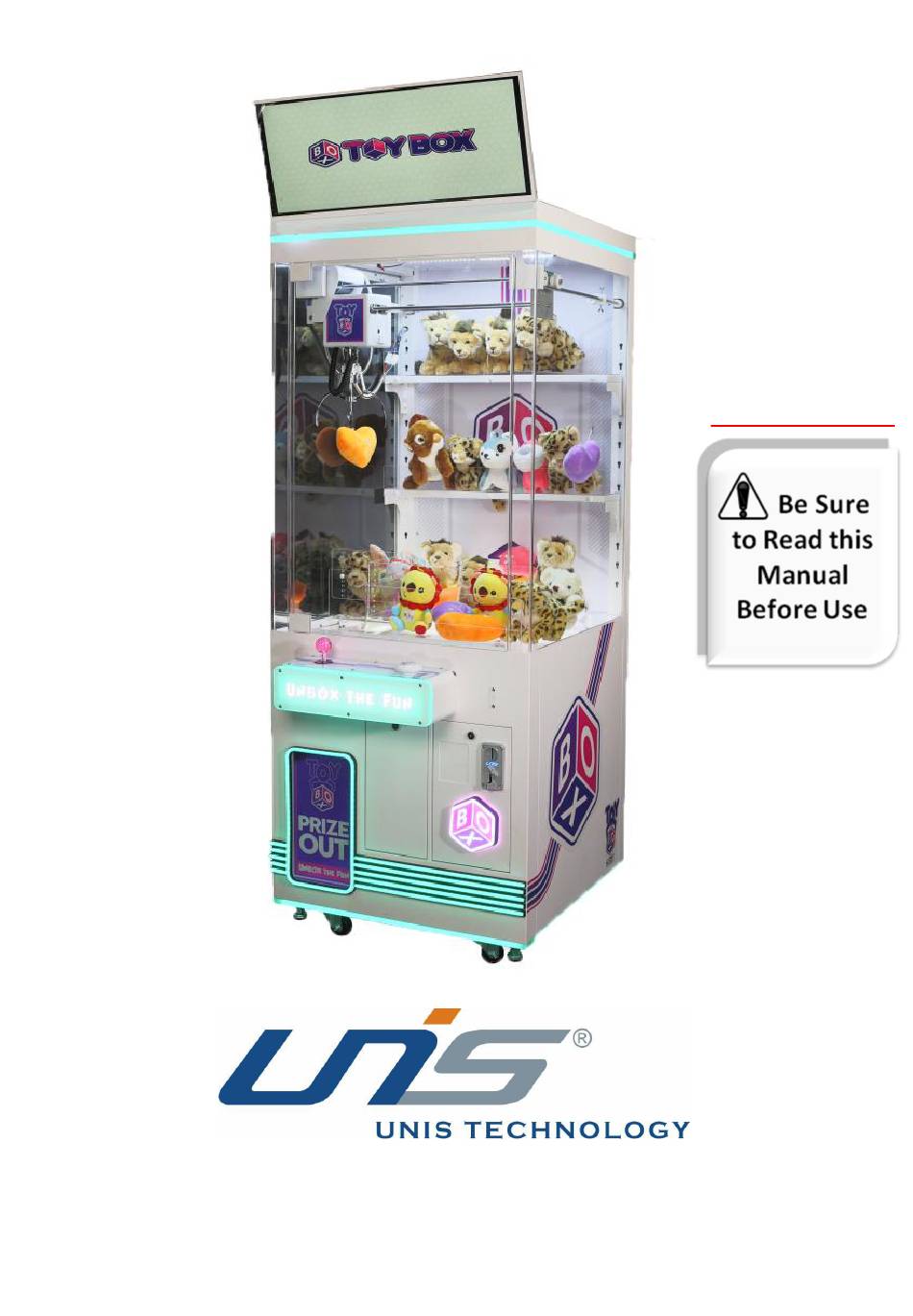

  • Page 1 IMPORTANT Operation Manual...
  • Page 2 Toy Box LCD GMP Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email: service@unispartsandservice.com www.unispartsandservice.com When contacting Service, you will need the following information and the name of your authorized distributor.

  • Page 3: Table Of Contents

    Toy Box LCD GMP Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ................ 3 1. SPECIFICATIONS ...................... 5 2. CONTENTS OF THE ACCESSORY KIT ..............6 3. PART NAME ......................7 4. SET UP & INSTALLATION ..................8 5. HOW TO PLAY ......................12 6.

  • Page 4: Important Safety Instructions

    Toy Box LCD GMP Manual Thank you for purchasing Toy Box LCD GMP. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 Toy Box LCD GMP Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 6: Specifications

    Toy Box LCD GMP Manual 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz; Min. Power consumption: 165W Max. Power consumption: 280W Dimension: H88.07×W31.49×D38.11 in H2237×W800 ×D968 mm Weight：Approximately 350.53 lb/159 KG Model No: T-410 NOTICE : After turning off the game, please wait at least 1 minute before restarting again.

  • Page 7: Contents Of The Accessory Kit

    Toy Box LCD GMP Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: Following accessories Code No. Name/SPEC Picture Power cord 2.33.01.018024 3×18AWG 3M Fuse 2.19.01.000012 Φ5×20mm T5A/250VAC 2.53.00608837 1408A key 2.53.00608838 1408B key Manual...

  • Page 8: Part Name

    Toy Box LCD GMP Manual 3. PART NAME Key Components Monitor Crane Button Joystick Coin mechanism Prize Out Slot 10/24/2023...

  • Page 9: Set Up & Installation

    Toy Box LCD GMP Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid. ...
  • Page 10 Toy Box LCD GMP Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 20 in Service area Play area NOTICE Your unit must be leveled to operate properly. 10/24/2023...
  • Page 11 Toy Box LCD GMP Manual 4.4 Machine Installation Step 1 Install Monitor to the top of the cabinet. Utilize screws to secure. Connect the connectors. Finish! 4.5 Card Reader Installation Safety Notice Take precaution to assure that all wiring voltages are confirmed prior to installation of card reader.
  • Page 12 Toy Box LCD GMP Manual 4.6 Voltage Conversion Step 1 Power off the machine. Locate the Power supply. Step 2 Toggle the Power supply and PC switch to 115V or 230V according to your need. 10/24/2023...

  • Page 13: How To Play

    Toy Box LCD GMP Manual 5. HOW TO PLAY 5.1 Insert coins or tap/swipe card to start. 5.2 Use the joystick to move the claw over the desired prize & press “TAP” button to grab within the time limit. 5.3 Win any prize that the claw drops into the prize box player can collect prize from prize door.

  • Page 14: Game Option

    Toy Box LCD GMP Manual 6. GAME OPTION 6.1 Adjustment button instruction Open the coin door and there is a meter panel. Long press Service button for 5 seconds to enter the setting menu. Utilize Joystick to control setting menu UP/DOWN/LEFT/RIGHT. Press button to confirm&...
  • Page 15 Toy Box LCD GMP Manual 6.2.3 Crane Setup Options Status Description Set the voltage at the bottom BOM Volt. 0.1-50.0 of the claw to grab the prize and when rising. Sets the voltage of the claw MID Volt 0.1-50.0 claw after the specified grab height Set the voltage when the claw WEK VOLT...
  • Page 16 Toy Box LCD GMP Manual Options Status Description Set the sensitivity of the joystick, Joy Delay 0-100 The higher the value, the lower the sensitivity of the joystick. Set how long the claw start s Bot Delay 0-100 falling after the button is pressed.
  • Page 17 Toy Box LCD GMP Manual 6.2.4 Prize Setup Options Status Description Win Base 0-250 Win rate Award Mode AC/FX/RA Prize No. 0-10 Get Bolt 0.1-45.0 Disp Win ON/OFF TOK PRIC 1-50 Coin per prize WIN PRIC 1-9999 PET mode Back And Exit 6.2.5 Light Setup Options Status...
  • Page 18 Toy Box LCD GMP Manual Options Status Description Basic ACP ON/OFF Whether to accept the Settings shared information sent Crane ACP ON/OFF from other machines, Prize ACP ON/OFF Not received if turned off. Light ACP ON/OFF 6.2.7 Factory Test Options Description Intellight Test Auto test.

  • Page 19: Troubleshooting

    Contact with UNIS Service. Turn on power SW again. If appeared Circuit protector make power SW again and again, machine has Power off in off state. anomaly. Please contact with UNIS Service. Card reader not The connector is loose. Check connector. working Card reader fault.
  • Page 20 Toy Box LCD GMP Manual 7.2 Mainboard Update Instructions Notice: Please Contact UNIS Service for latest software. Step 1 Power off the machine. Open the back bottom door. Loosen screws to rmeove mainboard. Step 2 Decompress HIDBootloader.zip. Double click to open the software.
  • Page 21 Toy Box LCD GMP Manual Step 2 Connect cable to the PC. Step 3 Connect cable to the Mainboard MCU port while pressing Test button. Cable port Press button when connect PC 10/24/2023...
  • Page 22 Toy Box LCD GMP Manual Step 4 Locate PC. Select “打开固件”(Open Software). Select latest software(Bin. format). Note: Picture software is only for reference. 10/24/2023...
  • Page 23 Toy Box LCD GMP Manual Step 5 Select “升级固件” (Update Software) to update mainboard. Step 6 When you see “” (Success), Update finish! Unplug the mainboard. Step 7 Install Mainboard back to the machine. Power on the machine. Finish! 10/24/2023...
  • Page 24 Toy Box LCD GMP Manual 7.3 Display Advertisement Operation Please note that the advertisement video format has to be MP4. Please prepare PC and a memory stick. Step 1 Plug memory stick to the PC. Step 2 Click Memory stick folder. Click “Adplayer”. Step 3 Click “keyplay”.
  • Page 25 Toy Box LCD GMP Manual Step 5 Place Ad. file to the folder. Right click to re-write the file name. Note: Name must be Number and unique. All files should be in order. File in order Step 6 Insert memory stick to the Setting panel port. Top of the monitor will be update automatically.

  • Page 26: Maintenance & Inspection

    Toy Box LCD GMP Manual 8. MAINTENANCE & INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition.
