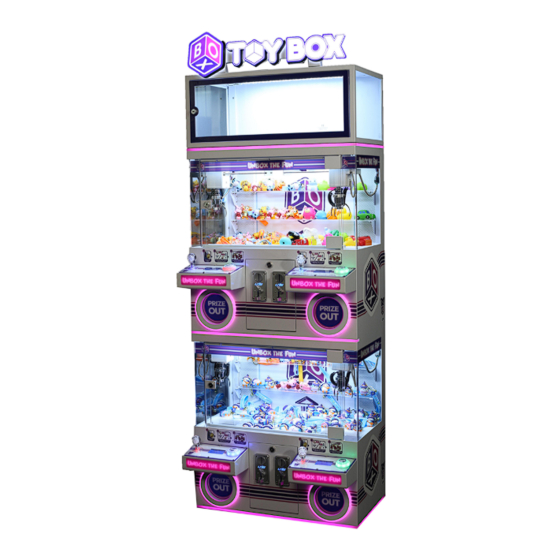

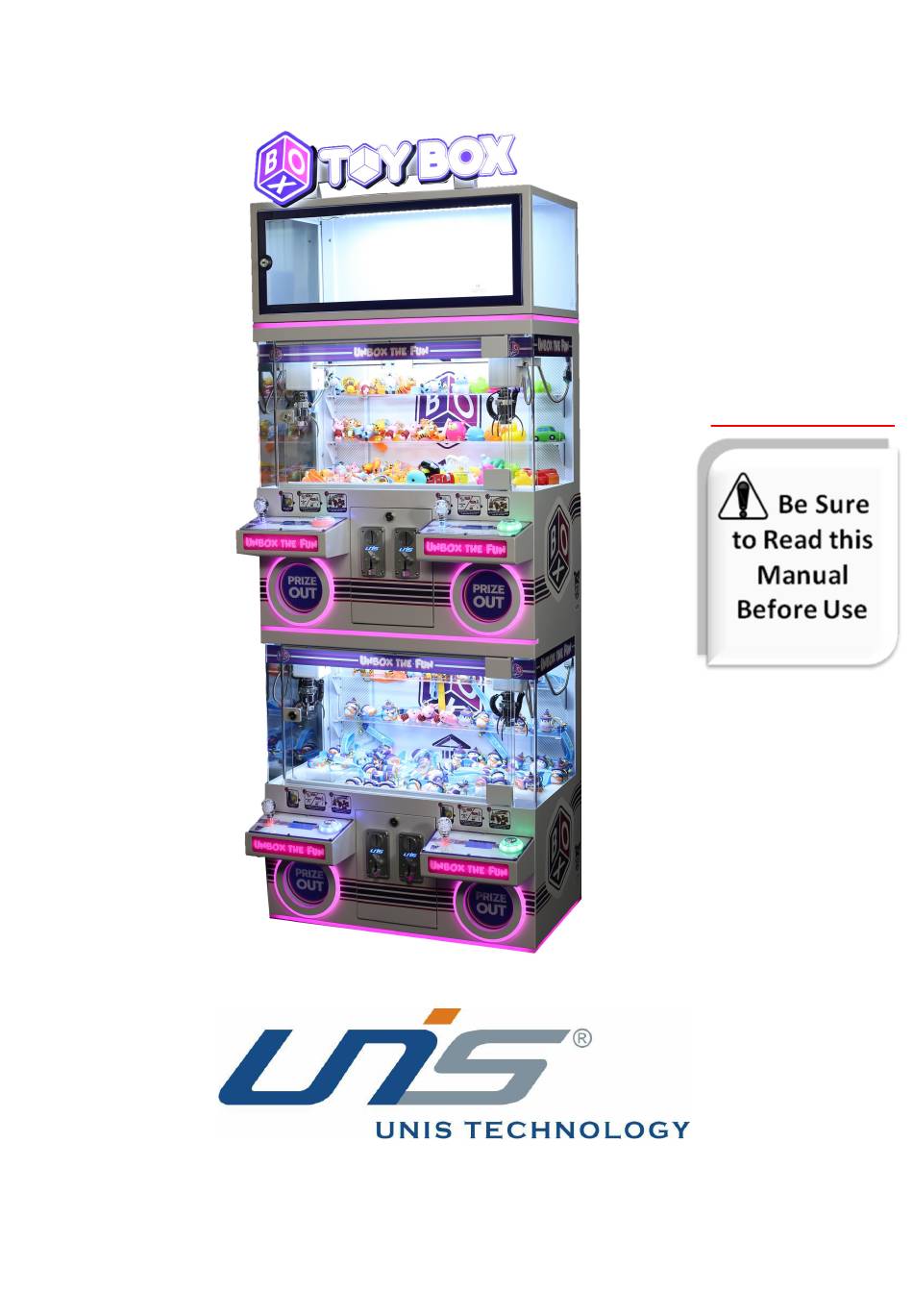

  • Page 1 IMPORTANT Operation Manual...
  • Page 2 Toy Box 4P Mini GMP Manual WE ARE HERE TO ASSIST For parts and service Have Questions? Contact us! UNIS SERVICE CENTER Tel: 972-241-4263 Email: service@unispartsandservice.com www.unispartsandservice.com When contacting Service, you will need the following information and the name of your authorized distributor.

  • Page 3: Table Of Contents

    Toy Box 4P Mini GMP Manual CONTENT IMPORTANT SAFETY INSTRUCTIONS ................ 3 1. SPECIFICATIONS ...................... 5 2. CONTENTS OF THE ACCESSORY KIT ..............6 3. PART NAME ......................7 4. SET UP & INSTALLATION ..................8 5. HOW TO PLAY ......................12 6.

  • Page 4: Important Safety Instructions

    Toy Box 4P Mini GMP Manual Thank you for purchasing Toy Box 4P Mini GMP. We hope you enjoy the product. This manual contains valuable information about how to operate and maintain your game machine properly and safely. It is intended for the owner and/or personnel in charge of product operation.
  • Page 5 Toy Box 4P Mini GMP Manual Use the following safety guidelines to help ensure your own personal safety and to help protect your equipment and surrounding environment from potential damage. This product is an indoor game machine. Do not install outdoors. Avoid installing in the following places to prevent fire, electric shock, injury and/or machine malfunctioning: ...

  • Page 6: Specifications

    Toy Box 4P Mini GMP Manual 1. SPECIFICATIONS Rated power supply: AC110V 50/60Hz; AC220V 50/60Hz; Min. Power consumption: 325W Max. Power consumption: 465W Dimension: H83.25×W28.93×D21.03 in H2114.60×W735 ×D534.35 mm Weight：Approximately 282.19lb/128 KG Model No: T-408 NOTICE : After turning off the game, please wait at least 1 minute before restarting again.

  • Page 7: Contents Of The Accessory Kit

    Toy Box 4P Mini GMP Manual 2. CONTENTS OF THE ACCESSORY KIT Open the package and make sure all the items are included: Following accessories Code No. Name/SPEC Picture Power cord 2.33.01.018024 3×18AWG 3M Fuse(T5A) 2.19.01.000012 Φ5×20mm T5A/250VAC 2.53.00608837 1408A key 2.53.00608838 1408B key Manual...

  • Page 8: Part Name

    Toy Box 4P Mini GMP Manual 3. PART NAME Key Components Marquee Assembly Display cabinet Crane Joystick Button Coin mechanism Mini screen Prize Out Slot 11/07/2023...

  • Page 9: Set Up & Installation

    Toy Box 4P Mini GMP Manual 4. SET UP & INSTALLATION NOTICE We do not recommend using power tools as they may cause damage. This product is an indoor game machine. Do not install outdoors.  Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid. ...
  • Page 10 Toy Box 4P Mini GMP Manual 4.3 Play Zone This machine requires space for playing and for maintenance as shown below. Leave space around the game upon installation: Service area: 20 in Service area Play area NOTICE Your unit must be leveled to operate properly. 11/07/2023...
  • Page 11 Toy Box 4P Mini GMP Manual 4.4 Machine Installation Step 1 Install LOGO marquee to the top of the cabinet. Utilize screws to secure. Finish! 11/07/2023...
  • Page 12 Toy Box 4P Mini GMP Manual 4.5 Card Reader Installation Safety Notice Take precaution to assure that all wiring voltages are confirmed prior to installation of card reader. All warranties are void if not properly installed resulting in logic board damage.

  • Page 13: How To Play

    Toy Box 4P Mini GMP Manual 5. HOW TO PLAY 5.1 Insert coins or tap/swipe card to start. 5.2 Use the joystick to move the claw over the desired prize & press “TAP” button to grab within the time limit. 5.3 Win any prize that the claw drops into the prize box player can collect prize from prize door.

  • Page 14: Game Option

    Toy Box 4P Mini GMP Manual 6. GAME OPTION 6.1 Adjustment button instruction Open the coin door and there is a meter panel. Long press Service button for 5 seconds to enter the setting menu. Utilize Joystick to control setting menu UP/DOWN/LEFT/RIGHT.
  • Page 15 Toy Box 4P Mini GMP Manual Player shake/tilt the machine will clear Sensor On/Off the coin. selling M1/M2/M3 Sel mode UP/CLR dis price On/Off coins pice 1-3,10 Exit 6.2.4 Feature Adjustable Options Default Description range Back music 1-7,loop game music 1-7,loop back volume 1-7,loop...
  • Page 16 Toy Box 4P Mini GMP Manual 6.2.5 IO test Options Default Adjustable range Description M1 F A On/Off M2 R L On/Off M3 T D On/Off sensors On/Off Exit 6.2.6 Factory Options Default Adjustable range Description Boot test On/Off Length rope 0-99 export gift M1 Speed...
  • Page 17 Toy Box 4P Mini GMP Manual 6.2.8 Light Color Adjustable Options Default Description range R Color 0-100 G Color 0-100 B Color 0-100 Exit 11/07/2023...

  • Page 18: Troubleshooting

    Contact with UNIS Service. Turn on power SW again. If appeared Circuit protector make power SW again and again, machine has Power off in off state. anomaly. Please contact with UNIS Service. Card reader not The connector is loose. Check connector. working Card reader fault.

  • Page 19: Maintenance & Inspection

    Toy Box 4P Mini GMP Manual 8. MAINTENANCE & INSPECTION 8.1 Safety Check Check the points listed before operating the machine. These checks are necessary for safe machine operation: 1. Test game before operation each day. 2. Conduct monthly routine checks of game components to ensure good working condition.
