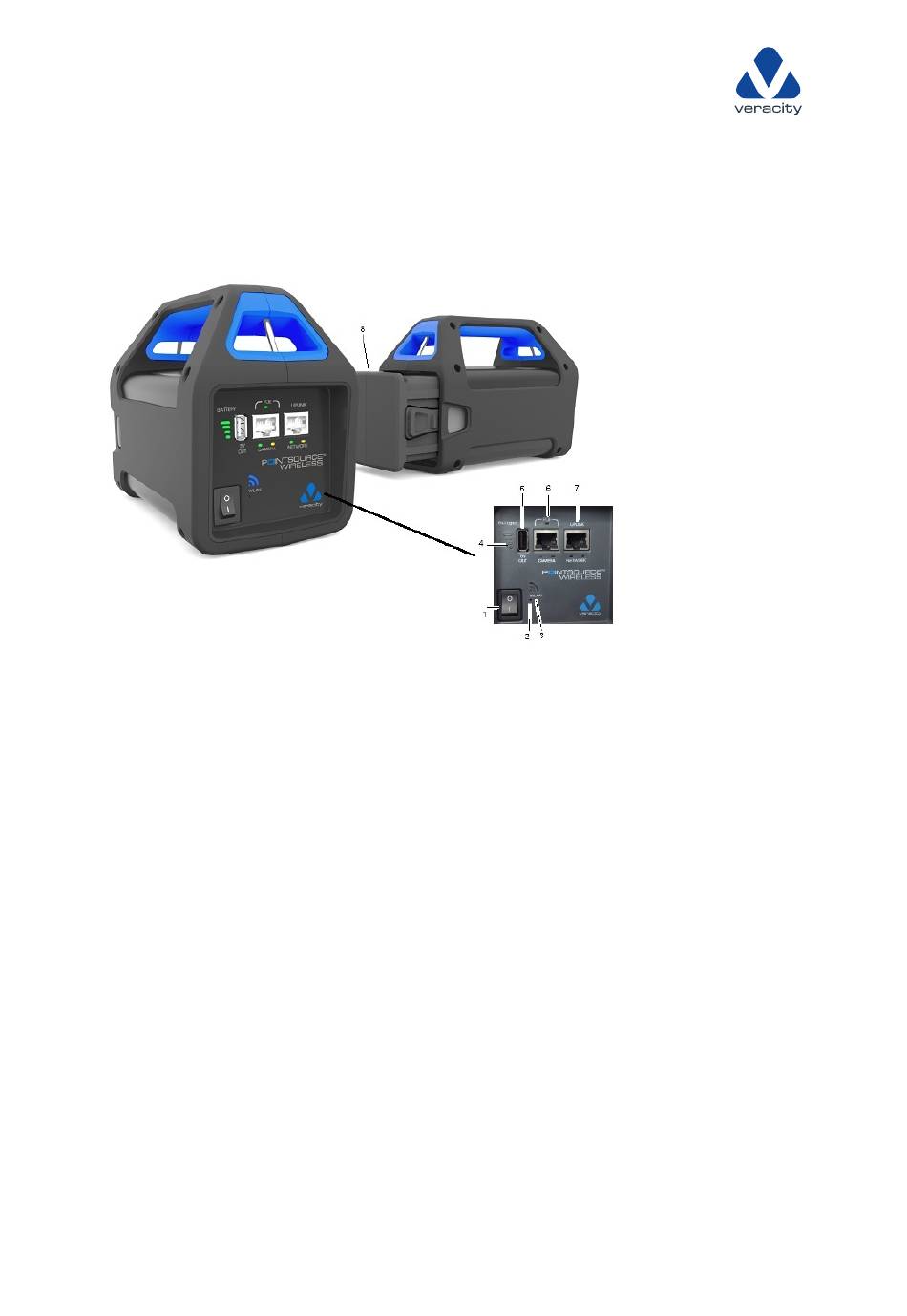

HARDWARE
1. On-Off switch
2. Factory Reset button
3. Wireless indicator
4. Battery Status Indicator
5. USB Charging Port
6. RJ45 POE Port:
|
POE LED ON – Enabled
|
POE LED Flashing – Error
|
POE LED OFF – No POE
7. RJ45 Network Port
8. Battery Module (includes charging port)
CHARGING
The following process MUST be followed for safe charging of the POINTSOURCE Battery
Module:
|
Place the Battery Module on a flat surface in a well-ventilated area with the charger
socket facing upward.
POINTSOURCE Wireless Installation Tool | QUICKSTART GUIDE | VAD-PSW
V1.0 |
4
