Veracity PointSource Operating Instructions

Package contents

1 x POINTSOURCE unit
1 x Shoulder strap
1 x Universal charger (UK, US, EU plugs)
1 x 1.5m Red network patch cable
1 x 1.0m Blue network patch cable
1 x Operating instructions (this leaflet)

Important safety notes

Only the supplied charger should be connected to
➔
POINTSOURCE.
Do not charge POINTSOURCE in a fully sealed enclosure.
➔
Do not attempt to service the unit or replace the battery.
➔
Other brands of lead-acid battery are not compatible with
POINTSOURCE.
Take care when connecting accessories to the 12 volt
➔
terminals. POINTSOURCE can deliver high currents before
tripping its internal fuse.

Maintaining battery performance

For optimal battery performance and longevity, POINTSOURCE
should be fully charged:
before first use
•
after long periods of storage
•
before being stored for long periods
•
every six months during storage
•
Always switch off POINTSOURCE when it is not in use, even if the
unit is fully discharged.
Disconnection from the charger within 16 hours is recommended.
OPERATING INSTRUCTIONS
PLEASE READ CAREFULLY

Overview

Veracity's POINTSOURCE is a portable, rechargeable battery-
powered Power over Ethernet (PoE) injector. It is designed to be
compact and easy to handle, yet able to deliver enough power to
support a full day of IP camera installation.
POINTSOURCE can be used with all PoE-powered equipment,
such as IP cameras and wireless access points, enabling
applications such as:
on-site configuration
•
site surveys and pre-installation trials
•
customer demonstrations
•
mobile and temporary installations
•
It complies with the universal 802.3af PoE standard, and can
deliver up to 15.4 watts of PoE power, while simultaneously
powering other 12 Volt accessories if required.

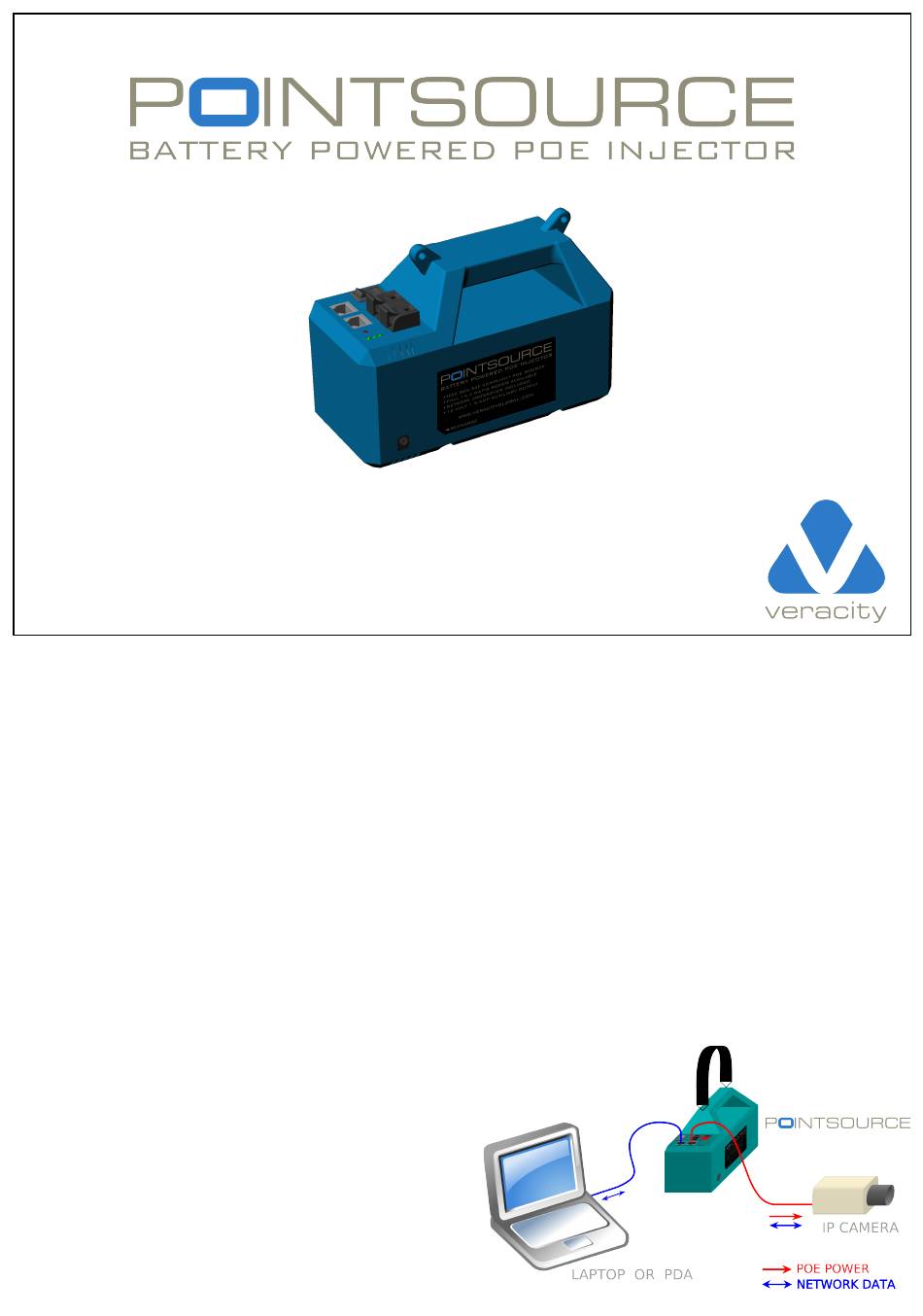

Network crossover between ports is integrated, to allow direct
connection of a laptop PC, as shown in the example below:
