FingerTec Kadex+ Installation Manual

Installation Guide
TimeTec © 2024, All Rights Reserved • 032024

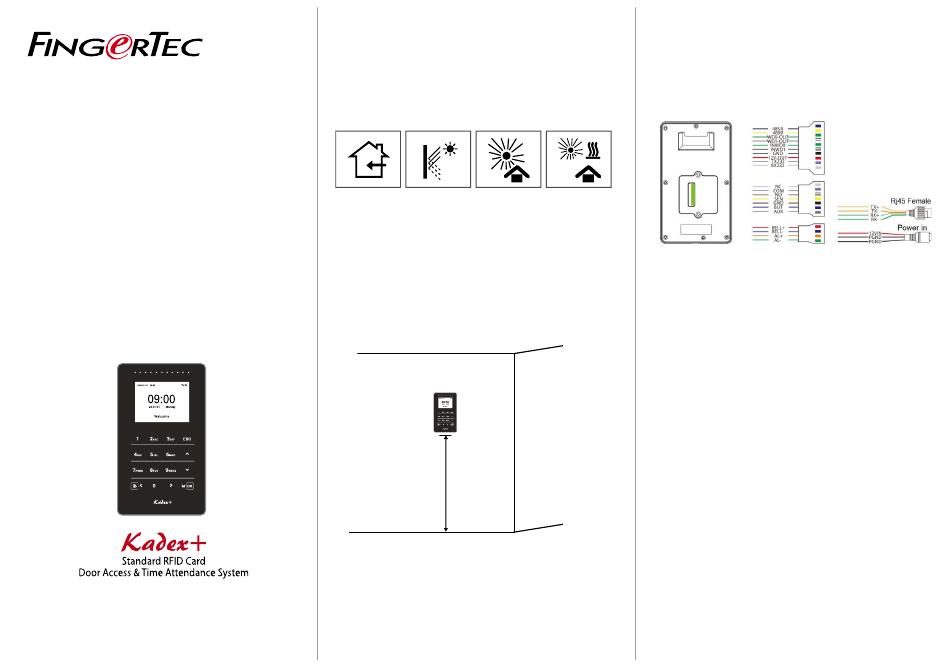

Step 1
Determine the Installation Location
•
Avoid installing the terminals in locations that have contact with
strong light source (e.g direct sunlight, spotlight, fluorescent
light, etc)
Indoor Use Avoid Glass Avoid Direct
Refraction Sunlight & Exposure
•
Avoid installing the terminals in locations with high moisture or
condensation levels in the air
•
The recommended installation height of the terminal from the
ground to the camera is 1.5 meter.
Step 2
Mount Terminal on a Wall
4 feet / 1.5 meter
(recommended)
1. Avoid strong sunlight
2. Install the terminal 1.5m from the ground level (measure the
height from the ground to the face camera)"
After measuring the height accordingly and make relevant markings on
the wall, drill the screws into the wall to secure the back plate.
Attach the terminal to the back plate and tighten the screws.
Refer to Appendix II for dimensions and measurements of installation.
Step 3
Wiring for Power Supply
Use power cables to connect to a linear power supply with specifi-
cations of 12VDC 3A to Power Port.
Far Away
Heat Source
Step 4
Setting Up Data Communications
The data communication ports are positioned at the rear of the
terminal, please refer to the diagram shown on Step 3 to determine
the wiring. Plug the communication jacks (TCP/IP) to the correspond-
ing ports.
TCP/IP – LAN Connection
For TCP/IP connection, connect the other end (normal RJ45 jack) to the
local area network hub or a PC. Configure the device ID, IP ad- dress,
subnet mask and Gateway or turn on DHCP function in the terminal
(refer to the hardware user manual for details).
Wi-Fi Settings
Menu > COMM. > Wi-Fi Settings > WIFI=ON
Select SSID > Insert WIFI password > Connect to Wi-Fi (OK)
It will indicate that it is Connected and will receive IP address as per
DHCP Server.
Device Type Settings
Menu > System > Device Type Settings
Please choose device type according to your need
1. Ingress Software (Attendance Mode) and TimeTec Attendance
Communication Protocol = PUSH Protocol
Device Type = T&A PUSH
2. Ingress Software (Access Mode)
Communication Protocol = PUSH Protocol
Device Type = A&C PUSH
3. TimeTec Access Communication Protocol = Best Protocol
