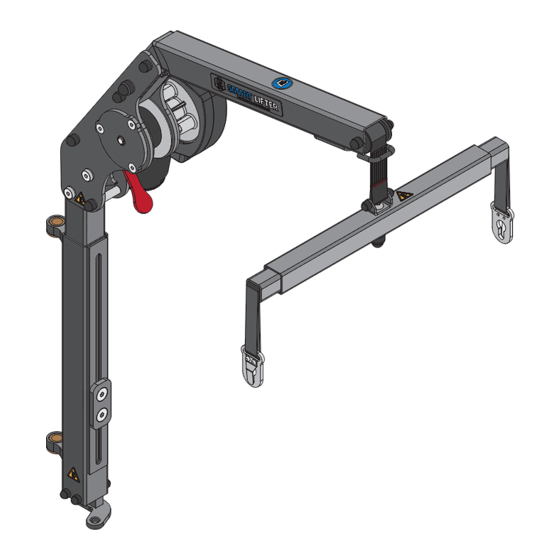

AUTOCHAIR Smart Lifter L-M Installation Manual
Hide thumbs Also See for Smart Lifter L-M:

Advertisement

L-M Range
Installation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Smart Lifter L-M and is the answer not in the manual?

Questions and answers

DavidMccowat
January 30, 2025

Can the LM 40 fit and lift a 73cm tall partially collapsed scooter into a tailgate 89 cm tall

1 comments:
Mr. Anderson
February 10, 2025

The AUTOCHAIR Smart Lifter LM series has an adjustable hoist height and length. It also has a folding version that allows the lifting arm to fold down to fit inside vehicles with limited space. Given that the tailgate is 89 cm tall and the scooter is 73 cm tall when partially collapsed, the hoist should be able to lift and fit the scooter into the vehicle, provided the lifting arm and available space allow for proper maneuvering. However, the exact fit depends on the specific vehicle and hoist configuration.

This answer is automatically generated

Clayton pask
April 11, 2025

Will.the L-M80-4F0 80 Kg smart lifter.mobility hoist fit a Renault captur 2014

Subscribe to Our Youtube Channel

Summary of Contents for AUTOCHAIR Smart Lifter L-M

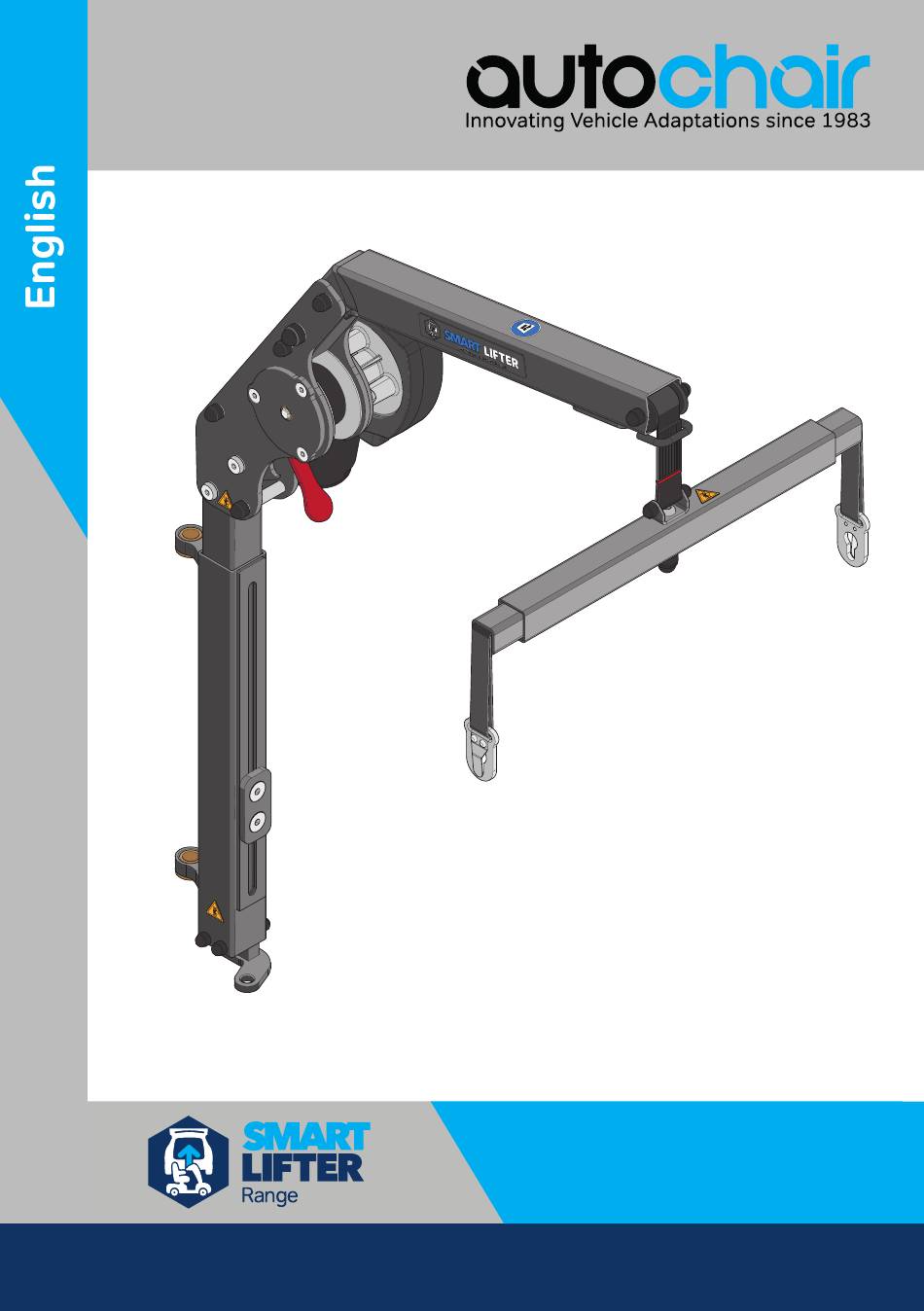

  • Page 1 L-M Range Installation Manual...
  • Page 2 The latest/current version of this manual is available on our website. If you require an electronic version or translated version of the manual please scan the QR code or enter the URL (https://www.mobilityinmotion.com/Autochair-Installer-Manuals) and select the appropriate manual. Français - Veuillez scanner le QR Code ou entrer l’URL de la...
  • Page 3: Table Of Contents

    HOIST LOCATION ......................5 CONTROL BOX BRACKET ....................6 CONTROL BOX .......................8 WIRING INSTRUCTIONS .....................9 MOTOR LOCATION .....................12 SETUP INSTRUCTIONS .....................15 HANDSET INSTRUCTIONS ..................18 SETTING THE CONTROL BOX ................20 10. CUSTOMER HANDOVER ....................23 11. DEALER DETAILS ......................24 Smart Lifter – L-M Range www.autochair.co.uk...
  • Page 4: Technical

    The maximum lifting capacity of the Smart Lifter is dependent on the version the customer has purchased. Check this by referring to labels --- Kg --- lbs on the lift arm. The mobility device must not exceed this weight. Smart Lifter – L-M Range www.autochair.co.uk...
  • Page 5: Hoist Location

    A-Frame or Universal Post. The dedicated A-Frame will have a set of fitting instructions, please fit in accordance with these instructions. For the Universal A-Frame please refer to the Universal A-Frame Manual. For the Universal Post please refer to the Universal Post Manual. A-Frame Universal Post Smart Lifter – L-M Range www.autochair.co.uk...
  • Page 6: Control Box Bracket

    1. Slot Item 2 through Item 1 as shown. Fit Item 2 2. Insert Items 3 and 4 into the Control Box over the Diagonal on the A Frame. bracket as shown. Smart Lifter – L-M Range www.autochair.co.uk...
  • Page 7 1. Find a location in the boot next to the Universal 2. Once Item 1 is securely attached, insert the Post. Using the self tapping screws provided control box. in the electrical kit attach Item 1 to the interior trim as shown. Smart Lifter – L-M Range www.autochair.co.uk...
  • Page 8: Control Box

    The 4-Way control box has four connectors. The Control box can be positioned in two ways. Both options are shown below. Option 2 - Control box positioned sideways. Option 1 - Control Box positioned upright. Smart Lifter – L-M Range www.autochair.co.uk...
  • Page 9: Wiring Instructions

    . Connect the BLACK cable to a suitable earthing point in the rear of the vehicle. DO NOT use a painted surface to achieve an earth. This could lead to intermittent operation of the Smart Lifter. Smart Lifter – L-M Range www.autochair.co.uk...
  • Page 10 The Actuator bracket is only compatible with the 4-Way Smart Lifter. Attach the Actuator Bracket as shown. A-Frame Actuator Bracket Universal Post Actuator Bracket Please note that the removable actuator bracket Please note that the bolt on actuator bracket is is shown for illustration purposes. shown for illustration purposes. Smart Lifter – L-M Range www.autochair.co.uk...
  • Page 11 The following diagram shows the connection for a 4 - Way version. Both of the connectors are red in colour. 4 - Way Handset 4 - Way Control Box Actuator Actuator Actuator Connectors Cable Smart Lifter – L-M Range www.autochair.co.uk...
  • Page 12: Motor Location

    Item No. Description M6x10 Hexagon Head Set Screw M6 Spring Washer L-M (Mk2) Motor with Transition Plate 80kg L-M (Mk2) Bearing Housing M6x10 Countersunk Set Screw L-M (Mk2) Spool M5x8 Grub Screw Cone Point Smart Lifter – L-M Range www.autochair.co.uk...
  • Page 13 Loosen Items 7 from Item 6 to free the motor. grub screws are accessible. Step 3 Step 4 Remove the bearing housing. Remove Items 4 and Remove Items 1, 2 and 3. 5 as shown. Smart Lifter – L-M Range www.autochair.co.uk...
  • Page 14 Press the UP/DOWN key until the webbing is all the way out and begins winding in the opposite direction; the strap movement direction will then correspond to the button on the handset once again. Smart Lifter – L-M Range www.autochair.co.uk...
  • Page 15: Setup Instructions

    Maximum and Minimum Settings (Folding Hoist) 771mm (30.4 In) 540mm (21.3 In) Horizontal Clamp (5/32 In) Horizontal Clamp (5/32 In) 1260mm (49.6 In) 1480mm (58.3 In) Vertical Clamp Vertical (5/32 In) Clamp MINIMUM MAXIMUM (5/32 In) EXTENSION EXTENSION Smart Lifter – LM Range www.autochair.co.uk...
  • Page 16 2. Move the Hoist outwards and torque tighten 1. Unscrew the Plate on the Boom Arm using a 5mm (3/16In) Allen key as shown. the plate to 22Nm (16.2lbft). in the desired location. Smart Lifter – LM Range www.autochair.co.uk...
  • Page 17 Adjusting the Straps 1. To adjust the straps on the Spreader bar loosen 2. Move the strap downwards and tighten the adjustment screws at the desired length. the adjustment screw as shown. Smart Lifter – L-M Range www.autochair.co.uk...
  • Page 18: Handset Instructions

    OCP is triggered. Hard Stop The speed is decreased 12.5% (of full speed) every 50ms until it comes to full stop (400ms) or until it reaches upper/lower limit or OCP is triggered. Smart Lifter – L-M Range www.autochair.co.uk...
  • Page 19 NOTE: The Service LED and the backlight on the ON/OFF BUTTON will flash 5 times to indicate the reset is completed. The service LED will now be turned off. Smart Lifter – L-M Range www.autochair.co.uk...
  • Page 20: Setting The Control Box

    Incorrect centre of Balance. Adjust of how to carry this out. to obtain the centre of balance by moving the fixings. Lift to check centre of balance. Once the setup is complete please handover to the customer. Smart Lifter – L-M Range www.autochair.co.uk...
  • Page 21 NOTE: The backlight of the UP BUTTON will flash 6 times to indicate current limit setup is completed. Current limit is set to highest value recorded during lift +4A. If this exceeds 40A, the limit will be set at 40A±2A. Smart Lifter – L-M Range www.autochair.co.uk...
  • Page 22 Installer Mode. seconds to exit Installer Mode. current limit back to default value (30A). Please ensure all wiring is cable tied to the hoist once the Installation is completed. Smart Lifter – L-M Range www.autochair.co.uk...
  • Page 23: Customer Handover

    40Kg (88lbs)8 0Kg (175lbs) mm (In) Weight Rating 2 Way 4 Way Control Type Mounting Universal PostA -Frame Method FixedF olding Boom Type Fill Smart Lifter and spreader bar settings details on page 24 of this Manual. Smart Lifter – L-M Range www.autochair.co.uk...
  • Page 24: Dealer Details

    Name: Signature: Fitting Kit Rating: Lifting Accessory Rating: Tick hoist details 40Kg (88lbs) 80Kg (175lbs) mm (In) Weight Rating 2 Way 4 Way Control Type Universal Post A-Frame Mounting Method Fixed Folding Boom Type Installer to retain this copy www.autochair.co.uk...
