Summary of Contents for AUTOCHAIR Smart Lifter L-C

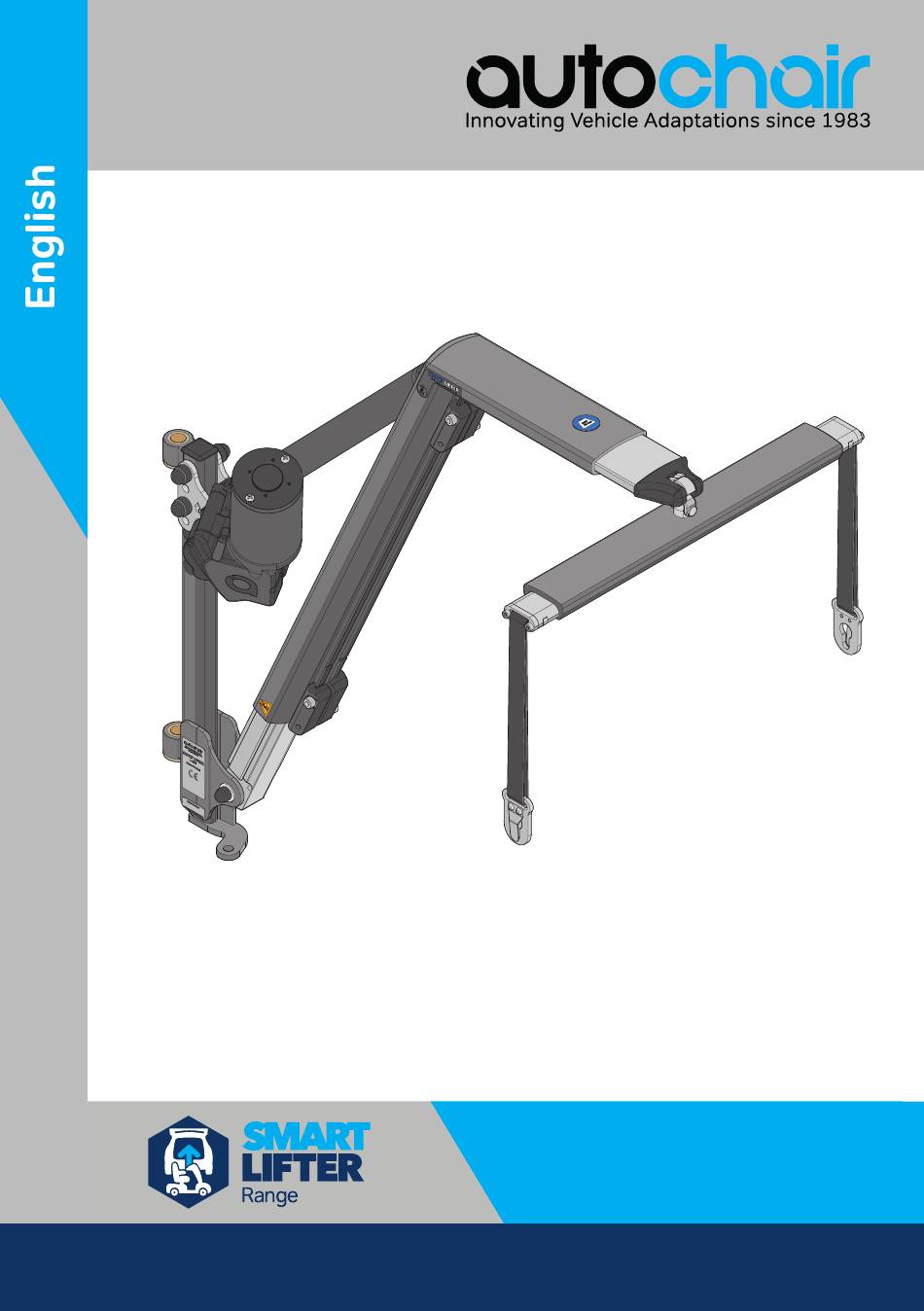

- Page 1 L-C Range Installation Manual...
- Page 2 WARNING! The Smart Lifter is only intended to be installed by an Accredited Autochair Dealer or an Autochair installer. Please read and fully understand the manual prior to installation. The following symbols are used to identify warnings and important details throughout this manual.
-
Page 3: Table Of Contents
Contents TECHNICAL ........................4 CONTROL BOX BRACKET ....................6 ATTACHING THE ACTUATOR ..................8 WIRING INSTRUCTIONS ....................9 SET UP INSTRUCTIONS ....................11 HANDSET INSTRUCTIONS ..................21 CUSTOMER HANDOVER....................23 DEALER DETAILS ......................24 Smart Lifter – L-C Range www.autochair.co.uk... -
Page 4: Technical
The maximum lifting capacity of the Smart Lifter is dependent on the version the customer has purchased. Check this by referring to labels --- Kg --- lbs on the lift arm. The mobility device must not exceed this weight. Smart Lifter – L-C Range www.autochair.co.uk... - Page 5 Dependant on the vehicle the mounting method will vary. This will be a dedicated A-Frame or a Universal A-Frame. The dedicated A-Frame will have a set of fitting instructions, please fit in accordance with these instructions. For the Universal A-Frame please refer to the Universal A-Frame Manual. Smart Lifter – L-C Range www.autochair.co.uk...
-
Page 6: Control Box Bracket
2. Insert Items 3 and 4 into the Control Box 1. Slot Item 2 through Item 1 as shown. Fit Item 2 bracket as shown. over the Diagonal on the A Frame. Smart Lifter – L-C Range www.autochair.co.uk... - Page 7 Item 1 to the interior trim. Control Box The Control box can be positioned in two ways inside the control box bracket. Option 1 - Control Box positioned upright. Option 2 - Control box positioned sideways. Smart Lifter – L-C Range www.autochair.co.uk...
-
Page 8: Attaching The Actuator
Ensure that the Smart Lifter is securely fitted. 3. Slot the second knurled pin into the Smart 4. Fit the R-Clip in the top pin on the A-Frame. Lifter and actuator as shown. Smart Lifter – L-C Range www.autochair.co.uk... -
Page 9: Wiring Instructions
. Connect the BLACK cable to a suitable earthing point in the rear of the vehicle. DO NOT use a painted surface to achieve an earth. This could lead to intermittent operation of the Smart Lifter. Smart Lifter – L-C Range www.autochair.co.uk... - Page 10 Ensure that the connector is fully inserted and the Yellow stopper is not visible. Handset Connectors 4 Way Handset Handset Cable CONNECTING THE IN/OUT ACTUATOR The following diagram shows the connection for the IN/OUT Actuator. Actuator Actuator Connectors Actuator Cable Smart Lifter – L-C Range www.autochair.co.uk...
-
Page 11: Set Up Instructions
Maximum - 610mm (24 In) Minimum - 94mm (3.7 In) Maximum - 394mm (15.5 In) Torque Settings 8 Nm (6 lbft) 8 Nm (6 lbft) 18 Nm (13 1/4 lbft) 8 Nm (6 lbft) Smart Lifter – L-C Range www.autochair.co.uk... - Page 12 740 (29) 730 (28.7) 720 (28.3) 710 (28) 700 (27.6) 690 (27.2) 680 (26.8) 670 (26.4) 660 (26) 650 (25.6) ACCEPTABLE 640 (25.2) DO NOT USE 630 (24.8) 620 (24.4) 610 (24) 600 (23.6) Smart Lifter – L-C Range www.autochair.co.uk...
- Page 13 780 (30.7) 770 (30.3) 760 (30) 750 (29.5) 740 (29) 730 (28.7) 720 (28.3) 710 (28) 700 (27.5) 690 (27.2) 680 (26.7) 670 (26.4) 660 (26) 650 (25.6) ACCEPTABLE 640 (25.2) DO NOT USE Smart Lifter – L-C Range www.autochair.co.uk...
- Page 14 2. Rotate the spreader bar around the hook on spreader bar 110° to engage the hook onto the hoist. the Smart Lifter as shown. 3. Ensure that the spreader bar is securely attached as shown. Smart Lifter – L-C Range www.autochair.co.uk...
- Page 15 Lifter. Loosen the extension lock fixings using shown. Use the handset to retract if required. the 5mm (5/32In) Allen key as shown. 3. Loosen the two actuator bracket clamp fixings. 4. Using both hands raise the height of the hoist. Smart Lifter – L-C Range www.autochair.co.uk...
- Page 16 8. Then tighten the two actuator bracket clamp Lifter and raise the Smart lifter to the desired fixings as shown. Ensure the horizontal Boom is height. Tighten the two extension lock fixings. set level and clears the roof lining. Smart Lifter – L-C Range www.autochair.co.uk...
- Page 17 No boom length should be set greater than 900mm (35.4 In) 2. Remove the lower actuator bracket fixings (be 1. Locate the actuator bracket fixings on the Pivot careful not to let the boom drop). post. Smart Lifter – L-C Range www.autochair.co.uk...
- Page 18 6. The horizontal sections shown level with the 5. The vertical extension will need to be adjusted boot floor, with the actuator fully retracted. if the horizontal section of the boom is not parallel with the boot floor. Smart Lifter – L-C Range www.autochair.co.uk...
- Page 19 4. Push the clip underneath the spreader bar adjustment screws at the desired length. to lock the strap in place. Insert and tighten the adjustment screw to 6Nm (6lbft). The straps should be parallel. Smart Lifter – L-C Range www.autochair.co.uk...
- Page 20 Incorrect centre of Balance. Adjust to obtain the centre of balance by moving the fixings. Lift to check centre of balance. Once the setup is complete please handover to the customer. Smart Lifter – L-C Range www.autochair.co.uk...
-
Page 21: Handset Instructions
BUTTON (This is equivalent to 1 shop trip a day, every day for 1 year) the service light will illuminate. (Please note that the hoists operation will not be affected following the service light activation) Service LED lights up in amber Smart Lifter – L-C Range www.autochair.co.uk... - Page 22 LM Mode. To reset the hand into LA MODE (Default settings) Please follow the steps below. Turn the handset ON by pressing Press the both IN and OUT the ON/OFF BUTTON. BUTTONS for 3s as shown. Smart Lifter – L-C Range www.autochair.co.uk...
-
Page 23: Customer Handover
Lifting Accessory Rating: Installed By: Print: Sign: Date: mm (In) mm (In) mm (In) 80Kg (175lbs) mm (In) 100Kg (220lbs) 4. Fill Smart Lifter and spreader bar settings details on page 24 of this Manual. Smart Lifter – L-C Range www.autochair.co.uk... -
Page 24: Dealer Details
Smart Lifter LC (Circle) 80Kg (175lbs) 100Kg (220lbs) Hoist Serial Number: Fitting Kit Rating: Lifting Accessory Rating: Installed By: Print: Sign: Date: mm (In) mm (In) mm (In) 80Kg (175lbs) mm (In) 100Kg (220lbs) Installer to retain this copy www.autochair.co.uk...
Need help?
Do you have a question about the Smart Lifter L-C and is the answer not in the manual?
Questions and answers

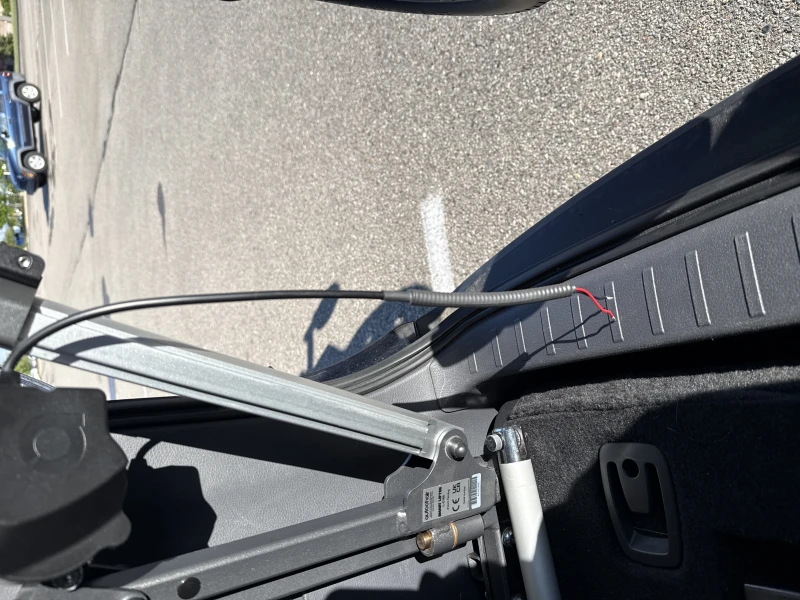

The actuator cable somehow got cut in th up and down part. Where can I get a replacement cable?
