Digilent PmodCON1 Reference Manual

PmodCON1™ Reference Manual
Revised December 17, 2015
This manual applies to the PmodCON1 rev. B

Overview

The PmodCON1 is a module that allows your system board to interface to other components via screw terminals.

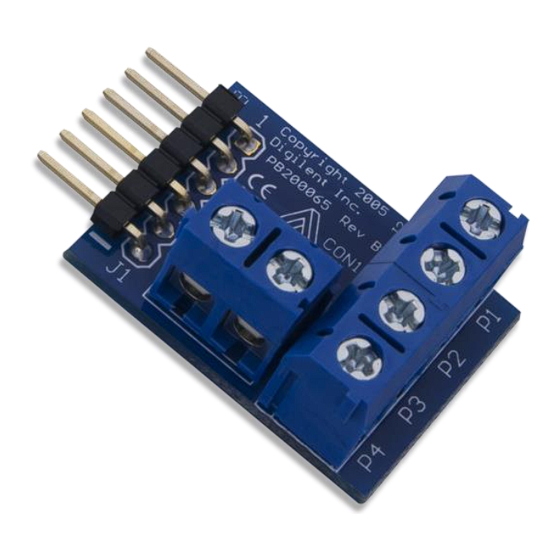

The PmodCON1.
1

Functional Description

Screw terminals provide two features that are not easily offered by pin headers. With their large surface area, it is
easy to pass larger amounts of power through them without running the risk of having them overheat.
Additionally, with the ability to screw down onto wires, it is possible to attach this Pmod to objects that otherwise
could not be attached to a breadboard or conveniently soldered.
2

Interfacing with the Pmod

Through its GPIO interface, you can easily send out a high or low voltage signal from a pin on the system board
and have it get sent straight to the appropriate screw terminal.
DOC#: 502-065
Other product and company names mentioned may be trademarks of their respective owners.
Features include:

Four screw terminals that interface with four GPIO
signals

Two screw terminals to provide power from an
external source
