Summary of Contents for iDTRONIC ID Swing Gate 2400

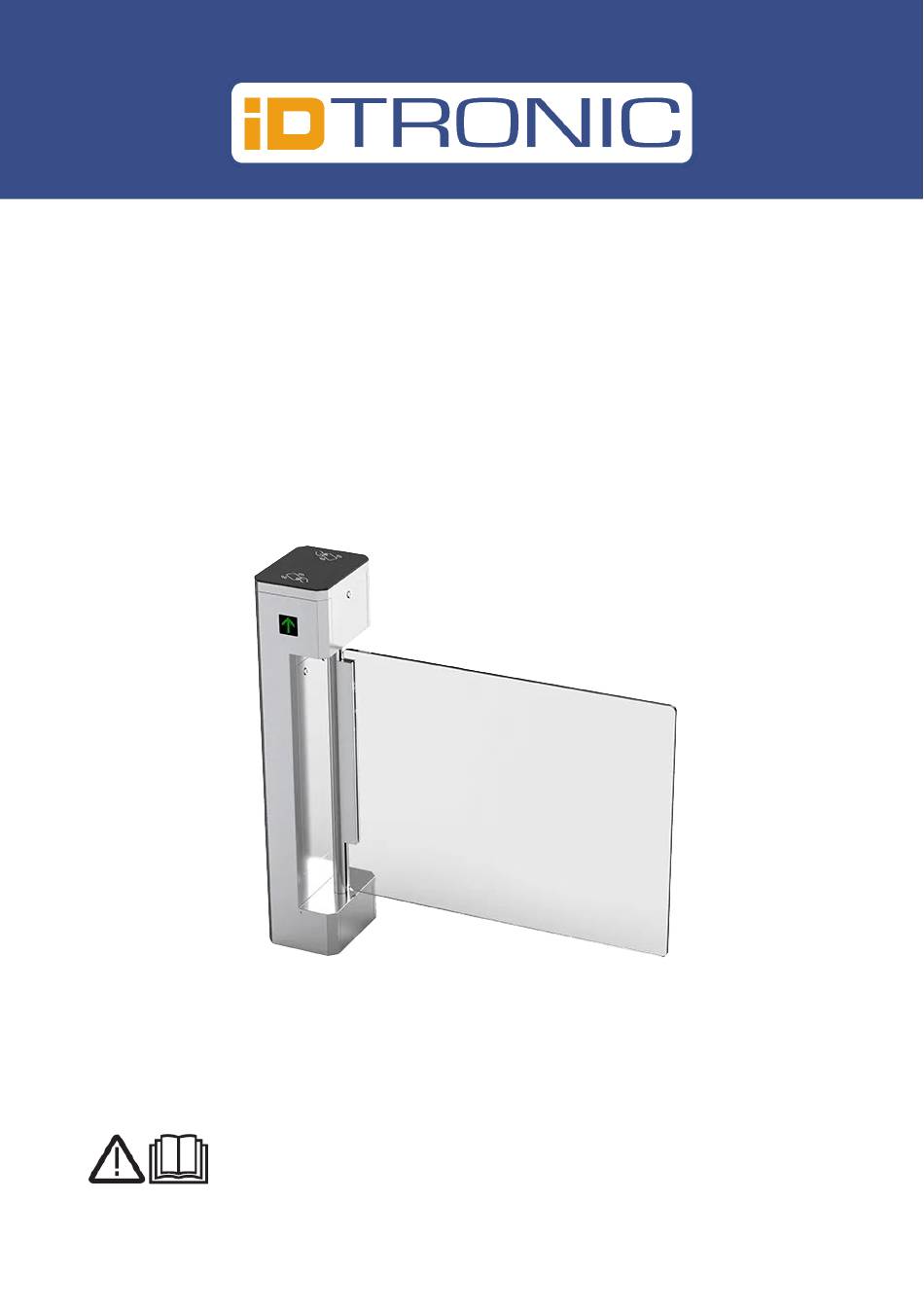

- Page 1 ID Swing Gate 2400 Date: Jan. 2024 Version: ID Swing Gate 2400 Please read and follow the installation instructions before operating the equipment and keep the instructions for future reference or use after debugging.
-
Page 2: Table Of Contents
ID Swing Gate 2400 Contents 1. Product Structure ................3 a. System components and working principle ......3 2. Installation instructions .............. 4-5 a. Installation notes & diagrams ..........4 b. Product dimensions ............... 5 3. Turnstile adjustments & connections .......... 6-9 a. -
Page 3: Product Structure
ID Swing Gate 2400 1. Product Structure and Working Principle 1.1. Electronic control system of channel gate The electronic control system consists of card reader, main control board, infrared sensor, direction indicator board, alarm, transformer, etc. Card reader (self-provided): after reading the information on the card and judging and processing, send the application pass signal (switch signal) to the main control board. -
Page 4: Installation Instructions
ID Swing Gate 2400 2. Installation instructions 2.1 Installation notes & suggestions Note: Disconnect all circuits during installation ►►Installation Suggestion: Cables should run in ductworks at 60mm depth to end up between mounting frames. If the turnstiles installed outside, consider a higher depth for the ductworks. - Page 5 ID Swing Gate 2400 Figure 3 – locations inside gate 1) circuit board 2) power supply 3) air break switch...
-
Page 6: Product Dimensions
ID Swing Gate 2400 Figure 4 – product dimensions 3. Turnstile adjustments & connections 3.1 Gate Position Adjustment Adjustment method for door panel position in Swing Gate Mode: 1. Press the INC button (middle button) 5 times in a row, and the system will prompt "Please manually adjust the position of the wing gate"... - Page 7 ID Swing Gate 2400 Figure 5 – Mainboard description OP-L = open left OP-R = open right Fire = emergency exit connection Red/blue marked buttons = setting/testing of parameters power +/- = connect power 230V counter = count up/down for external use...
-
Page 8: Parameter Settings
ID Swing Gate 2400 3.2 Parameter Setting 1. Press and hold the INC button (middle button) until the digital tube flashes to enter the parameter setting. 2. The first and second digits of the digital tube display the menu, and the third and fourth digits display the value. - Page 9 ID Swing Gate 2400 0: Start closing while ongoing passage 1: start closing at the end of the passage Close gate control 2: start closing after the passage 3-9: Additional delay (n-2 seconds) after passage is completed 0: Double motor mode (for two-way passage). 1: Single motor mode Single motor mode (for one-way passage).
-
Page 10: Product Maintenance
Please also consider that the warranty will expire as soon as you change any wiring etc. on the inside on your own and without consultation of an iDTRONIC employee. Do not use the built-in power supply to connect any other third-party device if told by so by an iDTRONIC employee. -
Page 11: Support
ID Swing Gate 2400 6. Support iDTRONIC Ludwig-Reichling-Straße 4 67059 Ludwigshafen am Rhein Support@idtronic.zendesk.com...
