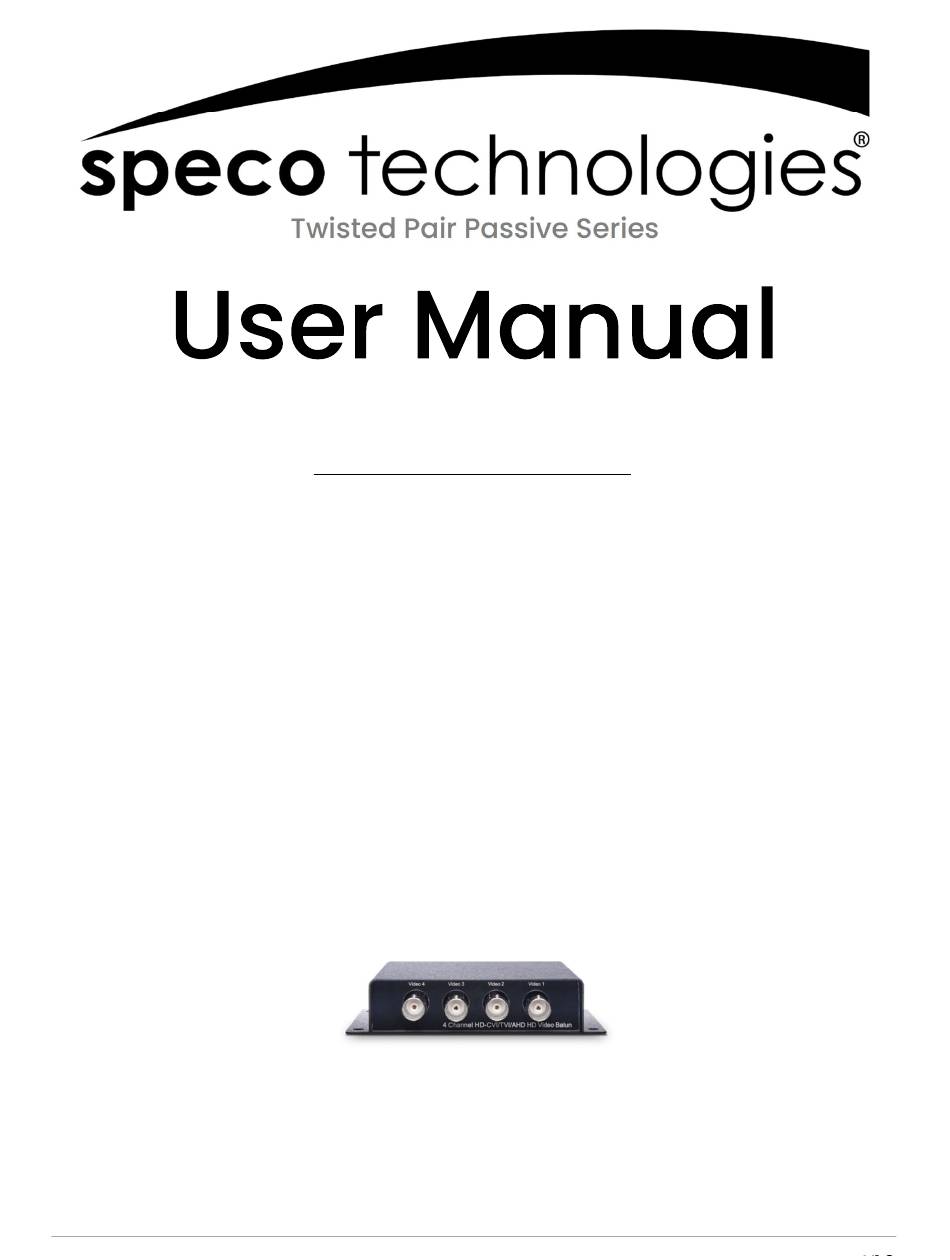

- Page 1 Twisted Pair Passive Series Model: TVIUTP4 4 Port HD-TVI Video Balun V1.0...

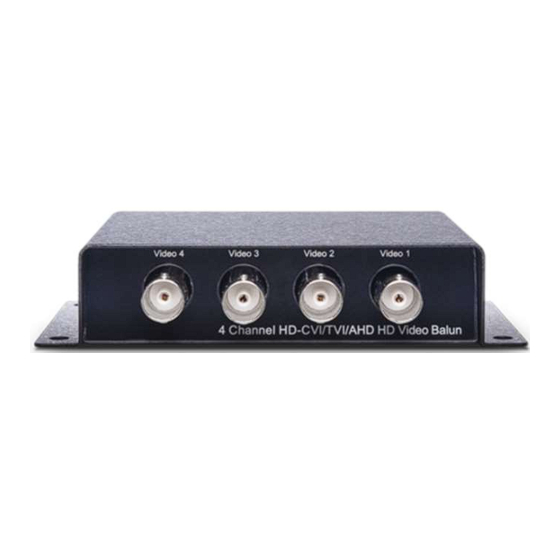

- Page 2 User Manual TVIUTP4 Introduction TVIUTP4 is a 4-port video balun that uses twisted-pair cables to send HD-TVI up to 820’ (250M), with up to 5MP resolution. Features HD-TVI Resolution up to 5MP HD-TVI Signal extension up to 820’ (250M) over UTP CAT5e/6 depending on resolution and ...
- Page 3 User Manual TVIUTP4 RJ-45 Jack Pin Defintion NOTE : These devices is reversible, BNC connector ＝ RJ45 This installation should be made by a qualified service person and should conform to all local codes. Cable Use high quality CAT5e UTP or CAT6 UTP cable. Refer to the distance chart for how long this cable can be run.
- Page 4 Speco Technologies is constantly developing and improving products. We reserve the right to modify product design and specifications without notice and without incurring any obligation. Speco Technologies . 200 New Highway . Amityville . NY . 11701 . www.specotech.com Rev. 11/1//22...
