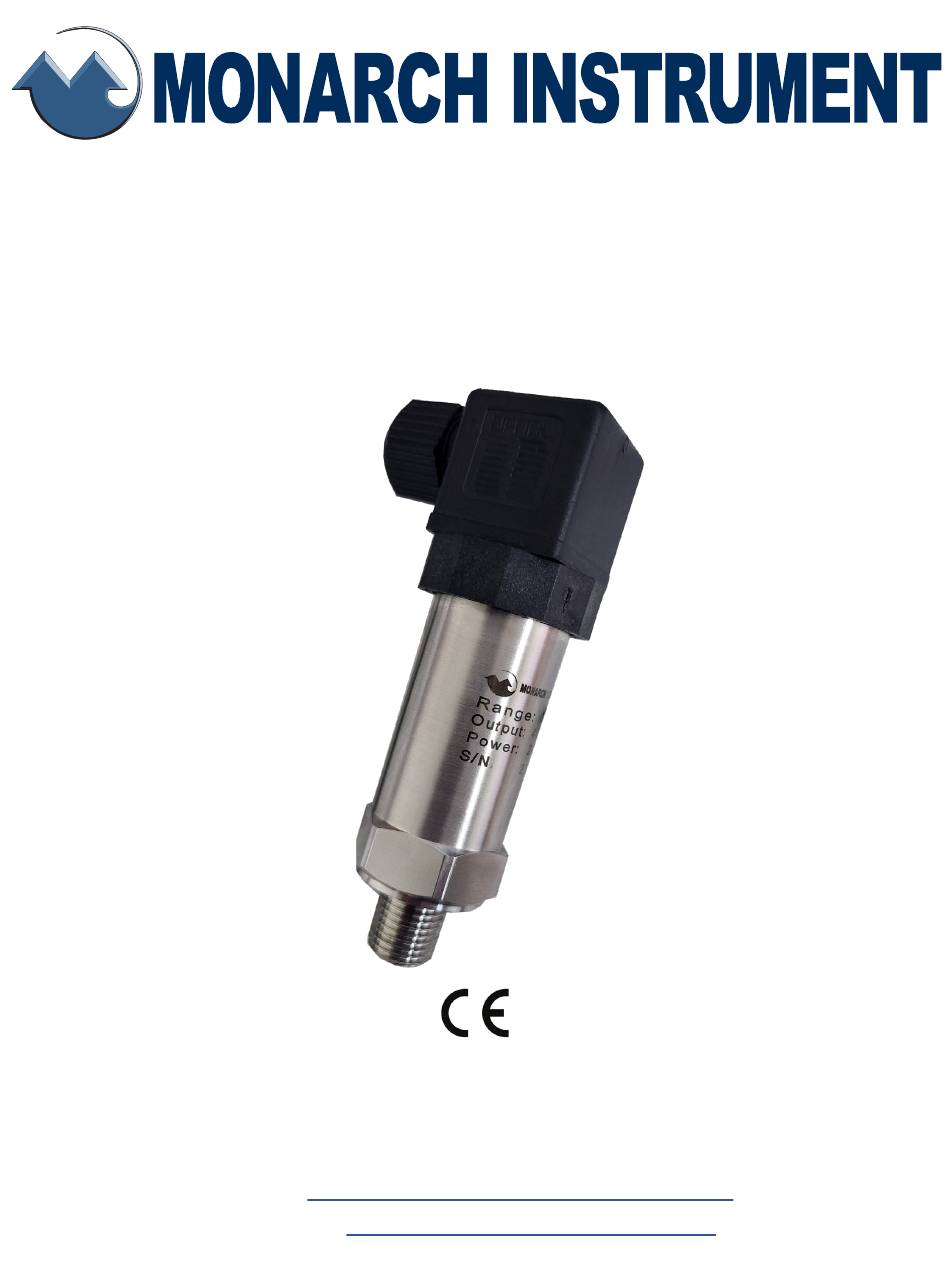

- Page 1 Instruction Manual PX Series of Pressure Transmitters 15 Columbia Drive Amherst, NH 03031 USA Phone: (603) 883-3390 • Fax: (603) 886-3300 E-mail: support@monarchinstrument.com Website: www.monarchinstrument.com...
- Page 2 RECYCLED in accordance with local regulations; contact your local authorities for more information. This product may be returnable to your distributor for recycling; contact the distributor for details. Monarch Instrument’s Limited Warranty applies. See www.monarchinstrument.com for details. Warranty Registration and Extended Warranty Coverage information is available online at...
-
Page 3: Table Of Contents
TABLE OF CONTENTS: 1.0 OVERVIEW ................1 2.0 WIRING CONNECTIONS ............1 3.0 CONNECTING CABLE TO HIRSCHMANN DIN 43650 ....3 4.0 INSTALLATION ................4 5.0 PIPELINE LOCATION GUIDELINES ..........5 6.0 SPECIFICATIONS ............... 6... -
Page 4: Overview
1.0 OVERVIEW Monarch Instrument’s PX Series of Universal Pressure Transmitters use a diffused silicon pressure sensor to sense an applied pressure. Through internal application-specific integrated circuits (ASIC), a millivolt signal is converted and transmitted into a standardized electrical output signal, such as 4-20 mA or 0-5 V. - Page 5 Output Pinout Power Supply Current Pin1: V+ 12 to 30 V Pin2: Iout (2 wires) Voltage* Pin1: V+ 12 to 30 V Pin2: V− (3 wires) Pin3: Vout *Special order Cable Wires* Output Pinout Power Supply Current Red: V+ 12 to 30 V Green: Iout (2 wires) Voltage*...
-
Page 6: Connecting Cable To Hirschmann Din 43650
3.0 CONNECTING CABLE TO HIRSCHMANN DIN 43650 If the Hirschmann DIN 43650 electrical connection was ordered, make sure to connect appropriate wiring prior to use (see Figure 1). Figure 1 Disassemble the connector. Feed the cable through and connect the wires to the corresponding pins of the terminal block. -
Page 7: Installation
4.0 INSTALLATION When installing the Transmitter, choose a location that allows for easy access for operation and maintenance of the device. It is best to maintain as much distance as possible from a vibration and/or heat source. Use shielded cables if there is a close proximity to power equipment. -
Page 8: Pipeline Location Guidelines
5.0 PIPELINE LOCATION GUIDELINES The layout of the power supply and signal lines should prevent moisture from reaching the Transmitter. Installation location rules differ depending on the media/service. Gas: For gas measurements on pipelines, the Transmitter should be mounted above the process. Place the tap at the top or side of the line. Mount the Transmitter beside or above the tap. -
Page 9: Specifications
6.0 SPECIFICATIONS Specifications* PX Series of Pressure Transmitters Measurement: Pressure Range 0-35, 0-150, 0-350, 0-850 PSI (additional ranges available) Pressure Reference Gauge or Sealed Gauge (depending on pressure range) Absolute also available Accuracy 0.5%FS Hysteresis 0.1%FS Repeatability 0.1%FS Temperature Drift ±1.5%FS (−20 °C to 85 °C) - Page 10 The Professional’s Choice Monarch Instrument is committed to excellence and quality in manufacturing, sales, and service. Track-It ™ Data Loggers Panel Tachometers Portable Tachometers Portable Strobes Frequency Fixed Mounted Converters Strobes ™ Speed Sensors DataChart Paperless Recorders 15 Columbia Drive, Amherst NH 03031 USA Tel.: (603) 883-3390 // Fax: (603) 883-3390...
