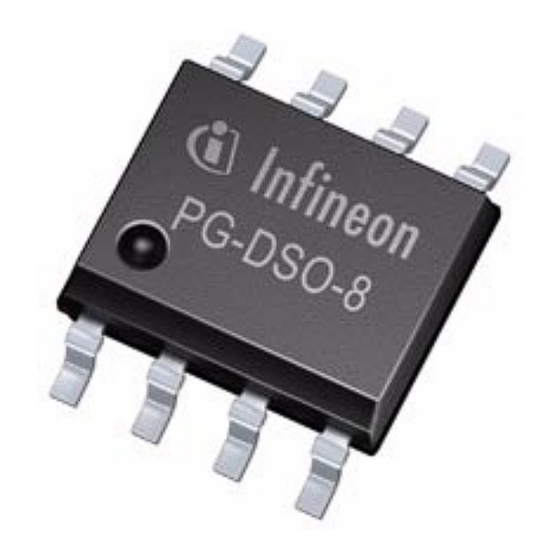

TLE8251V
High Speed CAN Transceiver with Bus Wake-up
1
Overview
Features
•
Compliant to ISO11898-2: 2003 and ISO11898-5: 2007
•
Wide common mode range for electromagnetic immunity (EMI)
•
Very low electromagnetic emission (EME)
•
Excellent ESD robustness
•
Guaranteed and improved loop delay symmetry to support CAN FD data
frames up to 2 MBit/s for Japanese OEMs
•
V
input for voltage adaption to the microcontroller supply
IO
•
Extended supply range on V
•
CAN short circuit proof to ground, battery and V
•
TxD time-out function
•
Low CAN bus leakage current in power-down state
•
Overtemperature protection
•
Protected against automotive transients
•
Stand-by mode with remote wake-up function
•
Wake-up indication on the RxD output
•
Transmitter supply V
CC
•
Green Product (RoHS compliant)
•
AEC Qualified
•
Certified according to latest VeLIO (Vehicle LAN Interoperability & Optimization) test requirements for the
Japanese market
Applications
•
Gateway Modules
•
Body Control Modules (BCMs)
•
Electric Power steering
•
Battery Management Systems
•
Cluster and Lighting Control Modules
Description
The TLE8251VSJ is a transceiver designed for HS CAN networks in automotive and industrial applications. As
an interface between the physical bus layer and the CAN protocol controller, the TLE8251VSJ drives the
Data Sheet
www.infineon.com/transceiver
and V
supply
CC
IO
CC
can be turned off in stand-by mode
1
Rev. 1.0
2016-07-15
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Infineon TLE8251V
Summary of Contents for Infineon TLE8251V
-
Page 1: Overview

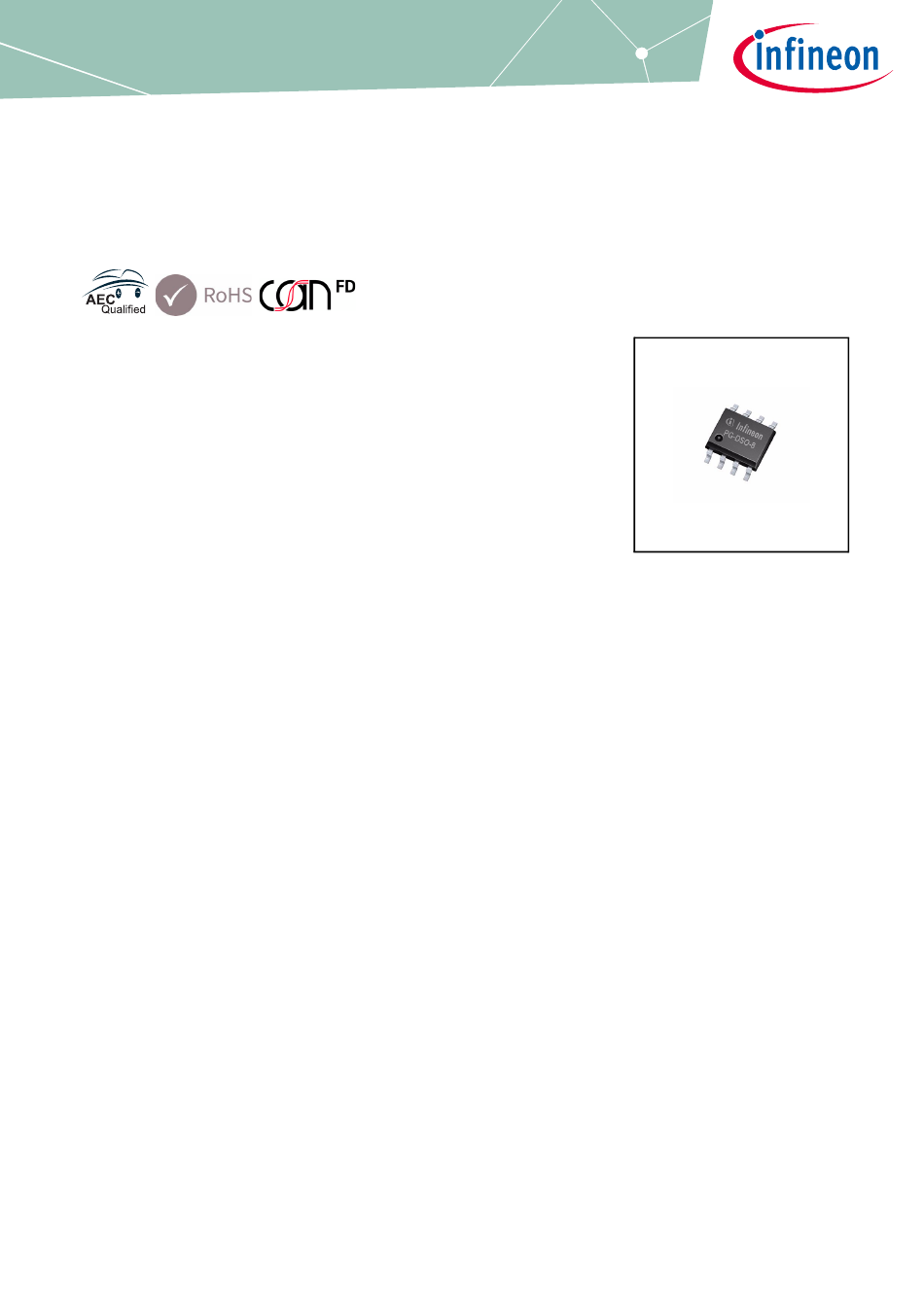

TLE8251V High Speed CAN Transceiver with Bus Wake-up Overview Features • Compliant to ISO11898-2: 2003 and ISO11898-5: 2007 • Wide common mode range for electromagnetic immunity (EMI) • Very low electromagnetic emission (EME) • Excellent ESD robustness • Guaranteed and improved loop delay symmetry to support CAN FD data frames up to 2 MBit/s for Japanese OEMs •... - Page 2 Based on the Infineon Smart Power Technology SPT, the TLE8251VSJ provides excellent ESD immunity together with a very high electromagnetic immunity (EMI). The TLE8251VSJ and the Infineon SPT technology are AEC qualified and tailored to withstand the harsh conditions of the automotive environment.
-
Page 3: Table Of Contents
TLE8251V High Speed CAN Transceiver with Bus Wake-up Table of Contents Overview ................. 1 Table of Contents . -
Page 4: Block Diagram
TLE8251V High Speed CAN Transceiver with Bus Wake-up Block Diagram Block Diagram Transmitter CANH Timeout Temp- protection CANL Mode control Receiver Normal-mode receiver Wake-logic & filter Low-power receiver Bus-biasing Figure 1 Functional block diagram Data Sheet Rev. 1.0 2016-07-15... -
Page 5: Pin Configuration
TLE8251V High Speed CAN Transceiver with Bus Wake-up Pin Configuration Pin Configuration Pin Assignment CANH CANL Figure 2 Pin configuration Pin Definitions Table 1 Pin definitions and functions Pin No. Symbol Function Transmit Data Input; internal pull-up to V , “low” for dominant state. -
Page 6: Functional Description
TLE8251V High Speed CAN Transceiver with Bus Wake-up Functional Description Functional Description HS CAN is a serial bus system that connects microcontrollers, sensors and actuators for real-time control applications. The use of the Controller Area Network (abbreviated CAN) within road vehicles is described by the international standard ISO 11898. - Page 7 TLE8251V High Speed CAN Transceiver with Bus Wake-up Functional Description The TLE8251VSJ is a High-Speed CAN transceiver, operating as an interface between the CAN controller and the physical bus medium. A HS CAN network is a two wire, differential network which allows data transmission rates for CAN FD frames up to 2 MBit/s.
-
Page 8: Modes Of Operation
TLE8251V High Speed CAN Transceiver with Bus Wake-up Functional Description Modes of Operation stand-by mode = “don’t care” > V STB = 1 IO(UV,R) STB = 0 STB = 1 normal-operating > V CC(UV,R) mode > V IO(UV,R) STB = 0... -
Page 9: Power-Up And Undervoltage Condition
TLE8251V High Speed CAN Transceiver with Bus Wake-up Functional Description Power-up and Undervoltage Condition When detecting an undervoltage event, either on the transmitter supply V or the digital supply V , the transceiver TLE8251VSJ changes the mode of operation. Turning off the digital power supply V , the transceiver powers down and remains in the power-down state. -
Page 10: Power-Down State
TLE8251V High Speed CAN Transceiver with Bus Wake-up Functional Description 4.3.1 Power-down State Independent of the transmitter supply V and of the STB input pin, the TLE8251VSJ is in power-down state when the digital supply voltage V is turned off (see... -
Page 11: Undervoltage On The Digital Supply V
TLE8251V High Speed CAN Transceiver with Bus Wake-up Functional Description 4.3.4 Undervoltage on the Digital Supply V If the voltage on V supply input falls below the threshold V < V , the transceiver TLE8251VSJ powers IO(UV,F) down and changes to power-down state. -
Page 12: Undervoltage On The Transmitter Supply V
TLE8251V High Speed CAN Transceiver with Bus Wake-up Functional Description 4.3.5 Undervoltage on the Transmitter Supply V In case the transmitter supply V falls below the threshold V < V , the transceiver TLE8251VSJ changes CC(UV,F) the mode of operation to forced stand-by mode. The transmitter and also the normal-mode receiver of the TLE8251VSJ are powered by the V supply. -
Page 13: Remote Wake-Up
TLE8251V High Speed CAN Transceiver with Bus Wake-up Functional Description Remote Wake-up The TLE8251VSJ has a remote wake-up feature, also called bus wake-up feature. In both stand-by mode and forced stand-by mode, the low-power receiver monitors the activity on the CAN bus and in case it detects a wake-up signal, the TLE8251VSJ indicates the wake-up signal on the RxD output pin. -
Page 14: Fail Safe Functions
TLE8251V High Speed CAN Transceiver with Bus Wake-up Fail Safe Functions Fail Safe Functions Short Circuit Protection The CANH and CANL bus outputs are short circuit proof, either against GND or a positive supply voltage. A current limiting circuit protects the transceiver against damage. If the device is heating up due to a continuous short on the CANH or CANL, the internal overtemperature protection switches off the bus transmitter. -
Page 15: Overtemperature Protection
TLE8251V High Speed CAN Transceiver with Bus Wake-up Fail Safe Functions Overtemperature Protection The integrated overtemperature detection protects the TLE8251VSJ against thermal overstress of the transmitter. Overtemperature protection is active in normal-operating mode and disabled in stand-by mode. In overtemperature condition, the temperature sensor disables the transmitter (see... -
Page 16: General Product Characteristics
TLE8251V High Speed CAN Transceiver with Bus Wake-up General Product Characteristics General Product Characteristics Absolute Maximum Ratings Table 3 Absolute maximum ratings voltages, currents and temperatures All voltages with respect to ground; positive current flowing into pin; (unless otherwise specified) -
Page 17: Functional Range
TLE8251V High Speed CAN Transceiver with Bus Wake-up General Product Characteristics Functional Range Table 4 Functional range Parameter Symbol Values Unit Note or Test Condition Number Min. Typ. Max. Supply Voltages Transmitter supply voltage – – P_6.2.1 Digital supply voltage –... -
Page 18: Electrical Characteristics
TLE8251V High Speed CAN Transceiver with Bus Wake-up Electrical Characteristics Electrical Characteristics Functional Device Characteristics Table 6 Electrical characteristics 4.5 V < V < 5.5 V; 3.0 V < V < 5.5 V; R = 60 Ω; -40 °C < T <... - Page 19 TLE8251V High Speed CAN Transceiver with Bus Wake-up Electrical Characteristics Table 6 Electrical characteristics (cont’d) 4.5 V < V < 5.5 V; 3.0 V < V < 5.5 V; R = 60 Ω; -40 °C < T < 150 °C; all voltages with respect to ground; positive current flowing into pin;...
- Page 20 TLE8251V High Speed CAN Transceiver with Bus Wake-up Electrical Characteristics Table 6 Electrical characteristics (cont’d) 4.5 V < V < 5.5 V; 3.0 V < V < 5.5 V; R = 60 Ω; -40 °C < T < 150 °C; all voltages with respect to ground; positive current flowing into pin;...
- Page 21 TLE8251V High Speed CAN Transceiver with Bus Wake-up Electrical Characteristics Table 6 Electrical characteristics (cont’d) 4.5 V < V < 5.5 V; 3.0 V < V < 5.5 V; R = 60 Ω; -40 °C < T < 150 °C; all voltages with respect to ground; positive current flowing into pin;...
- Page 22 TLE8251V High Speed CAN Transceiver with Bus Wake-up Electrical Characteristics Table 6 Electrical characteristics (cont’d) 4.5 V < V < 5.5 V; 3.0 V < V < 5.5 V; R = 60 Ω; -40 °C < T < 150 °C; all voltages with respect to ground; positive current flowing into pin;...
- Page 23 TLE8251V High Speed CAN Transceiver with Bus Wake-up Electrical Characteristics Table 6 Electrical characteristics (cont’d) 4.5 V < V < 5.5 V; 3.0 V < V < 5.5 V; R = 60 Ω; -40 °C < T < 150 °C; all voltages with respect to ground; positive current flowing into pin;...
-
Page 24: Diagrams
TLE8251V High Speed CAN Transceiver with Bus Wake-up Electrical Characteristics Diagrams 100 nF CANH CANL 100 nF Figure 11 Test circuits for dynamic characteristics 0.7 x V 0.3 x V d(L),T d(H),T Diff 0.9 V 0.5 V d(L),R d(H),R Loop(H,L) Loop(L,H) 0.7 x V... - Page 25 TLE8251V High Speed CAN Transceiver with Bus Wake-up Electrical Characteristics 0.7 x V 0.3 x V 0.3 x V 5 x t Loop(H,L) Bit(Bus) Diff CANH CANL Diff 0.9 V 0.5 V Loop(L,H) Bit(RxD) 0.7 x V 0.3 x V...
-
Page 26: Application Information
TLE8251V High Speed CAN Transceiver with Bus Wake-up Application Information Application Information ESD Robustness according to IEC61000-4-2 Tests for ESD robustness according to IEC61000-4-2 “Gun test” (150 pF, 330 Ω) have been performed. The results and test conditions are available in a separate test report. -
Page 27: Application Example
TLE8251V High Speed CAN Transceiver with Bus Wake-up Application Information Application Example 22 uF TLE4476D 100 nF CANH CANL 100 nF 100 nF 22 uF TLE8251VSJ CANH Microcontroller e.g. XC22xx CANL optional: common mode choke 22 uF TLE4476D 100 nF... - Page 28 TLE8251V High Speed CAN Transceiver with Bus Wake-up Application Information Mode changes are triggered by the STB pin when the device TLE8251VSJ is fully supplied. Setting the STB pin to logical “low” changes the mode of operation to normal-operating mode: •...
-
Page 29: Mode Change To Stand-By Mode During A Dominant Bus Signal
TLE8251V High Speed CAN Transceiver with Bus Wake-up Application Information 8.3.1 Mode Change to Stand-by Mode during a dominant Bus Signal Figure 15 shows an example of mode change from normal-operating mode to stand-by mode while the signal on the HS CAN bus is dominant. -
Page 30: Mode Change From Stand-By Mode To Normal-Operating Mode
TLE8251V High Speed CAN Transceiver with Bus Wake-up Application Information 8.3.2 Mode Change from Stand-by Mode to Normal-operating Mode 8.3.2.1 Mode Change while the TxD Signal is “low” Figure 16 shows an example of mode change to normal-operating mode while the TxD input is logical “low”. -
Page 31: Mode Change While The Bus Signal Is Dominant
TLE8251V High Speed CAN Transceiver with Bus Wake-up Application Information 8.3.2.2 Mode Change while the Bus Signal is dominant Figure 17 shows an example of mode change while the bus is dominant and the TxD input signal is set to logical “high”. -
Page 32: Further Application Information
TLE8251V High Speed CAN Transceiver with Bus Wake-up Application Information Further Application Information • Please contact us for information regarding the pin FMEA. • Existing application note. • For further information you may visit: http://www.infineon.com/transceiver Data Sheet Rev. 1.0 2016-07-15... -
Page 33: Package Outline
TLE8251V High Speed CAN Transceiver with Bus Wake-up Package Outline Package Outline 0.35 x 45˚ -0.2 1.27 0.64 ±0.25 +0.1 0.41 ±0.2 -0.06 -0.2 Index Marking 1) Does not include plastic or metal protrusion of 0.15 max. per side 2) Lead width can be 0.61 max. in dambar area... -
Page 34: Revision History
TLE8251V High Speed CAN Transceiver with Bus Wake-up Revision History Revision History Revision Date Changes 2016-07-15 Data Sheet created. Data Sheet Rev. 1.0 2016-07-15... - Page 35 Infineon Technologies, customer's products and any use of the product of Infineon Technologies’ products may not be used in Infineon Technologies in customer's applications. any applications where a failure of the product or any...
