ESENER LITHIUM
51.2V 100Ah
• Advanced BMS with current limiting function
• CAN Bus, fully integrates and communicates with leading Inverter brands(Growatt,SOLAX,LUXPower,DEYE,MUST,
Voltronic,Victron,SMA...etc. )
• Excellent high temperature performance
• High Cycle Life and Service Life
• 1C High Performance Lithium battery
• High Energy Density and conversion efficiency
• Complete with integrated Battery Management System
• Compatible with most Inverters and chargers
• Low self discharge
• Easy wall mount or shelf rack installation
• Heavy duty side handles for easy handling and mounting on the wall
• Built in protection for over-charge, over-discharge & over-temperature
ESENER LITHIUM
51.2V 100Ah
• Advanced BMS with current limiting function
• CAN Bus, fully integrates and communicates with leading Inverter
brands(Growatt,SOLAX,LUXPower,DEYE,MUST, Voltronic,Victron,SMA...etc. )
• Excellent high temperature performance
• High Cycle Life and Service Life
• 1C High Performance Lithium battery
• High Energy Density and conversion efficiency
• Complete with integrated Battery Management System
• Compatible with most Inverters and chargers
• Low self discharge
• Easy wall mount or shelf rack installation
• Heavy duty side handles for easy handling and mounting on the wall
• Built in protection for over-charge, over-discharge & over-temperature

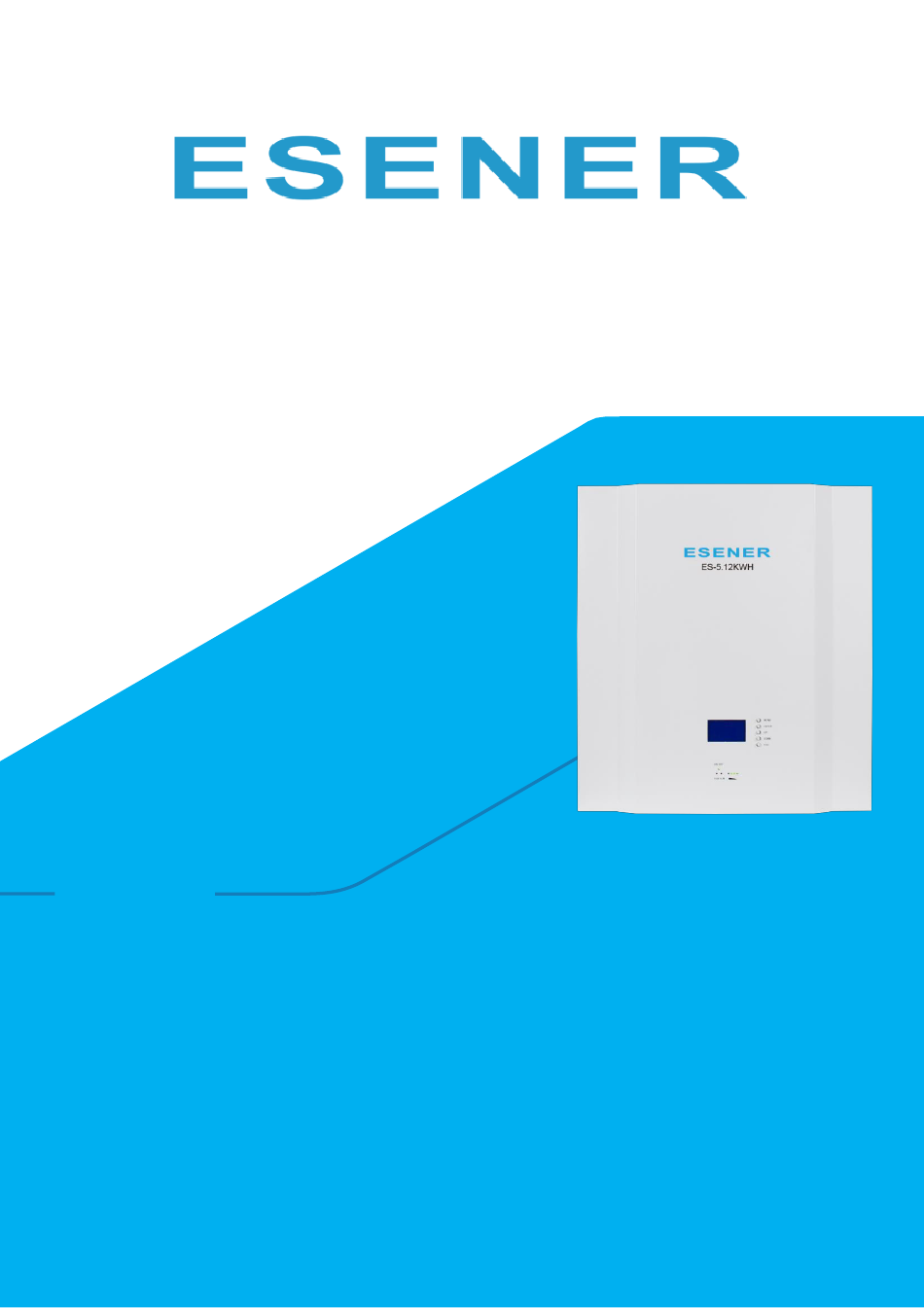

ES-5.12KWH User Manual
Advertisement
Table of Contents
Related Manuals for ESENER ES-5.12KWH
Summary of Contents for ESENER ES-5.12KWH
- Page 1 ES-5.12KWH User Manual ESENER LITHIUM 51.2V 100Ah • Advanced BMS with current limiting function • CAN Bus, fully integrates and communicates with leading Inverter brands(Growatt,SOLAX,LUXPower,DEYE,MUST, Voltronic,Victron,SMA...etc. ) • Excellent high temperature performance • High Cycle Life and Service Life • 1C High Performance Lithium battery •...
-
Page 2: Table Of Contents
ES-5.12KWH User Manual Content Statement of Law .............................1 Safety Precautions............................2 Preface..............................3 1 Introduction............................4 1.1 Brief Introduction...........................4 1.2 Product Properties.........................4 1.3 Product identity definition......................5 2 Product Specification..........................6 2.1 Size and Weight ..........................6 2.2 Performance Parameter .......................6 2.3 Interface Definition........................6 2.3.1 DIP switch definition and description ..................7 2.4 Battery Management System(BMS) ...................10... -
Page 3: Statement Of Law
ES-5.12KWH User Manual Statement of Law Copyright of this document belongs to ES Energy Pty Ltd. No part of this documentation maybe excerpted, reproduced, translated, annotated or duplicated in any form or by any means without the prior written permission of ES Energy Pty Ltd. All Rights Reserved. -
Page 4: Safety Precautions
ES-5.12KWH User Manual Safety Precautions Warning Please do not put the battery into water or fire, in case of explosion or any other situation that might endanger your life. Please connect wires properly while installation, do not reverse connect. -
Page 5: Preface
Preface Manual declaration The ES-5.12KWH lithium iron phosphate battery energy storage system can provide energy storage solutions for photovoltaic power generation users through parallel combination. During the day, the excess power of photovoltaic power generation can be stored in the battery. At... -
Page 6: Introduction
1.1 Brief Introduction ES-5.12KWH lithium iron phosphate battery system is a standard battery system unit, customers can choose a certain number of ES-5.12KWH according to their needs, by connecting parallel to form a larger capacity battery pack, to meet the user's long-term power supply needs. -
Page 7: Product Identity Definition
ES-5.12KWH User Manual 1.3 Product identity definition Be careful with your actions and be aware of the dangers. Read the user manual before using. The scrapped battery cannot be put into the garbage can and must be professionally recycled. After the battery life is terminated, the battery can continue to be used after it recycled by the professional recycling organization and do not discard it at will. -
Page 8: Product Specification
ES-5.12KWH User Manual 2 Product Specification 2.1 Size and Weight Table 2-1 ES-5.12KWH Device size Nominal Nominal Product Dimension Weight Voltage Capacity ES-5.12KWH DC51.2V 100Ah 505×543×162mm ≈46kg 2.2 Performance Parameter Table 2-2 ES-5.12KWH performance parameter Item Parameter value Nominal Voltage(V) 51.2... -
Page 9: Dip Switch Definition And Description
ES-5.12KWH User Manual Item Name Definition OFF/ON, Power switch must be in the "ON" state when in use DRY CONTACT Reset Restart all battery settings DIP switch RS485 Communication cascade port, support RS485 communication Communication cascade port, support CAN communication... - Page 10 ES-5.12KWH User Manual...
- Page 11 ES-5.12KWH User Manual Table 2-4 Pin Definition Table 2-5 LED status indicators...
-
Page 12: Battery Management System(Bms)
ES-5.12KWH User Manual 2.4 Battery Management System(BMS) 2.4.1 Voltage Protection Discharging Low Voltage Protection： When any battery cell voltage is lower than the protection value during discharging, The over-discharging protection starts, and the battery buzzer makes an alarm sound. Then battery system stops supplying power to the outside. -
Page 13: Other Protection
ES-5.12KWH User Manual 2.4.4 Other Protection Short Circuit Protection： When the battery is activated from the shutdown state, if a short circuit occurs, the system starts short-circuit protection for 30 seconds. Self-Shutdown： When device connects no external loads and power supply and no external communication for over 72 hours, device will dormant standby automatically. -
Page 14: Installation And Configuration
ES-5.12KWH User Manual 3 Installation and Configuration 3.1 Ready for installation Safety Requirement This system can only be installed by personnel who have been trained in the power supply system and have sufficient knowledge of the power system. The safety regulations and local safety regulations listed below should always be followed during the installation. -
Page 15: Technical Preparation
ES-5.12KWH User Manual Name Clip forceps Wrist strap Wire stripper AVO meter Electric drill Tape 3.1.3 Technical preparation Electrical interface check Devices that can be connected directly to the battery can be user equipment, power supplies, or other power supplies. -
Page 16: Engineering Coordination
ES-5.12KWH User Manual 3.1.5 Engineering coordination Attention should be paid to the following items before construction: Power line specification. The power line specification shall meet the requirements of maximum discharge current for each product. Mounting space and bearing capacity. -
Page 17: Communicate Inverter
Step 2:Turn on the battery and inverter and wait until they are working properly. The battery is configured by factory default to communicate with the Voltronic/Victron (RS485) inverters and DEYE,Sunsynk, ESENER(Hybrid),Luxpower,Sofar, TBB(CAN)inverters, the battery will automatically select and communicate with one of these inverters. - Page 18 ES Eener Pty Ltd. Address: Unit 9, Summit Square 1, Corporate Park North, 347 Roan Crescent, Midrand, Gauteng, South Africa, 1685. Email: info@esener.co.za Website: www.esener.co.za...
Need help?
Do you have a question about the ES-5.12KWH and is the answer not in the manual?
Questions and answers
I have 2 Essener 5.12V 100Ahr wall mount units. I need to parralell them with coms and dip switches and then the master need to comunicate with a Sunsynk 5KW Inverter. Can you give me the correct dip settings for master and slave and the parrallel coms cable between the two batteries must plug in where?
