ESENER LITHIUM
51.2V 100Ah
• Advanced BMS with current limiting function
• CAN Bus, fully integrates and communicates with leading Inverter brands(Growatt,SOLAX,LUXPower,DEYE,MUST,
Voltronic,Victron,SMA...etc. )
• Excellent high temperature performance
• High Cycle Life and Service Life
• 1C High Performance Lithium battery
• High Energy Density and conversion efficiency
• Complete with integrated Battery Management System
• Compatible with most Inverters and chargers
• Low self discharge
• Easy wall mount or shelf rack installation
• Heavy duty side handles for easy handling and mounting on the wall
• Built in protection for over-charge, over-discharge & over-temperature
ESENER LITHIUM
51.2V 200Ah
• Advanced BMS with current limiting function
• CAN Bus, fully integrates and communicates with leading Inverter
brands(Growatt,SOLAX,LUXPower,DEYE,MUST, Voltronic,Victron,SMA...etc. )
• Excellent high temperature performance
• High Cycle Life and Service Life
• 1C High Performance Lithium battery
• High Energy Density and conversion efficiency
• Complete with integrated Battery Management System
• Compatible with most Inverters and chargers
• Low self discharge
• Easy wall mount or shelf rack installation
• Heavy duty side handles for easy handling and mounting on the wall
• Built in protection for over-charge, over-discharge & over-temperature
ES-10.24KWH User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ES-10.24KWH and is the answer not in the manual?

Questions and answers

Related Manuals for ESENER ES-10.24KWH

Summary of Contents for ESENER ES-10.24KWH

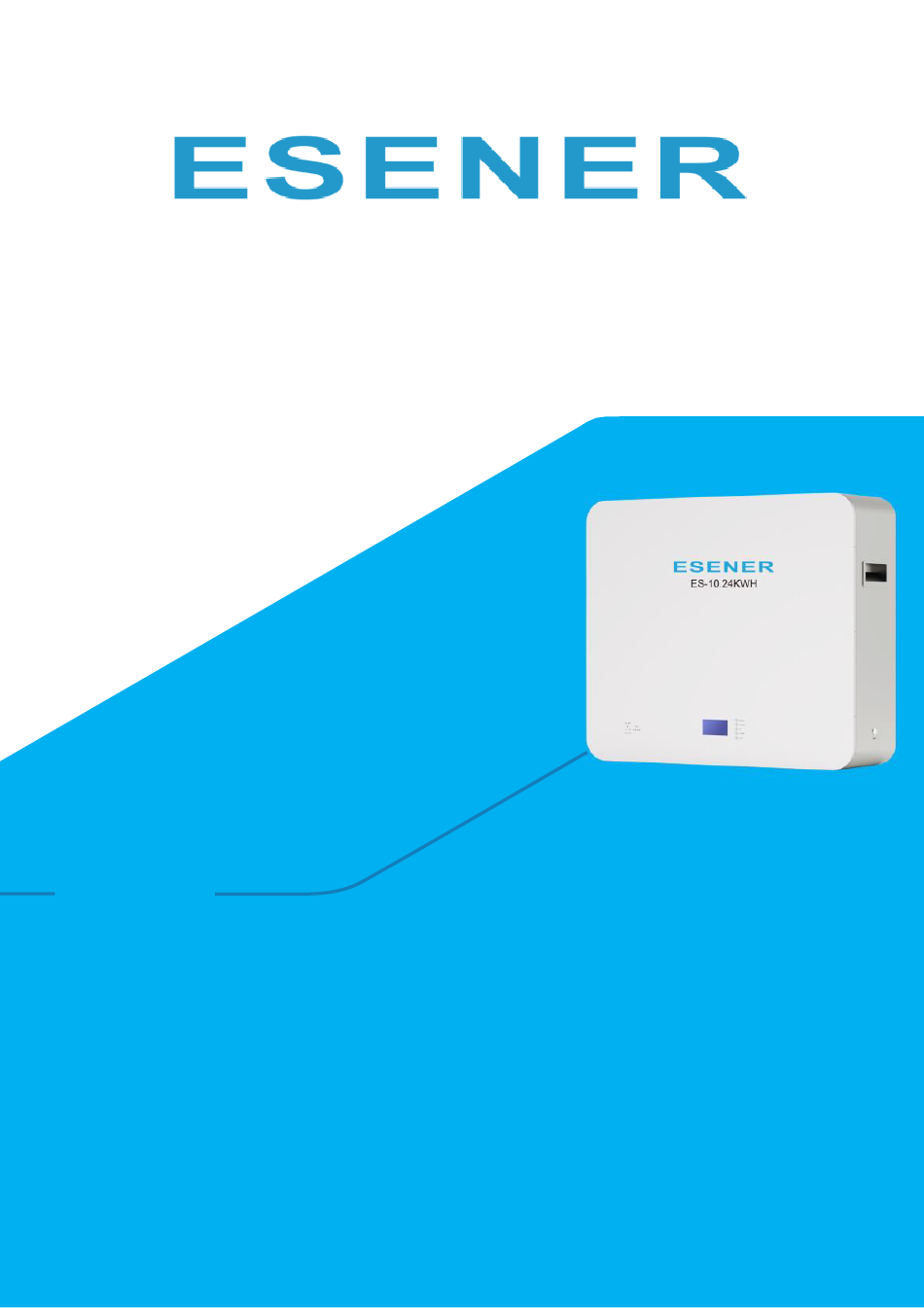

  • Page 1 ES-10.24KWH User Manual ESENER LITHIUM 51.2V 100Ah • Advanced BMS with current limiting function • CAN Bus, fully integrates and communicates with leading Inverter brands(Growatt,SOLAX,LUXPower,DEYE,MUST, Voltronic,Victron,SMA...etc. ) • Excellent high temperature performance • High Cycle Life and Service Life • 1C High Performance Lithium battery •...

  • Page 2: Table Of Contents

    ES-10.24KWH User Manual Content Statement of Law .............................1 Safety Precautions............................2 Preface..............................3 1 Introduction............................4 1.1 Brief Introduction...........................4 1.2 Product Properties.........................4 1.3 Product identity definition......................5 2 Product Specification..........................6 2.1 Size and Weight ..........................6 2.2 Performance Parameter .......................6 2.3 Interface Definition........................6 2.3.1 DIP switch definition and description ..................7 2.4 Battery Management System(BMS) ...................10...

  • Page 3: Statement Of Law

    ES-10.24KWH User Manual Statement of Law Copyright of this document belongs to ES Energy Pty Ltd. No part of this documentation maybe excerpted, reproduced, translated, annotated or duplicated in any form or by any means without the prior written permission of ES Energy Pty Ltd. All Rights Reserved.

  • Page 4: Safety Precautions

    ES-10.24KWH User Manual Safety Precautions Warning  Please do not put the battery into water or fire, in case of explosion or any other situation that might endanger your life.  Please connect wires properly while installation, do not reverse connect.

  • Page 5: Preface

    Preface Manual declaration The ES-10.24KWH lithium iron phosphate battery energy storage system can provide energy storage solutions for photovoltaic power generation users through parallel combination. During the day, the excess power of photovoltaic power generation can be stored in the battery. At...

  • Page 6: Introduction

    1.1 Brief Introduction ES-10.24KWH lithium iron phosphate battery system is a standard battery system unit, customers can choose a certain number of ES-10.24KWH according to their needs, by connecting parallel to form a larger capacity battery pack, to meet the user's long-term power supply needs.

  • Page 7: Product Identity Definition

    ES-10.24KWH User Manual 1.3 Product identity definition Be careful with your actions and be aware of the dangers. Read the user manual before using. The scrapped battery cannot be put into the garbage can and must be professionally recycled. After the battery life is terminated, the battery can continue to be used after it recycled by the professional recycling organization and do not discard it at will.

  • Page 8: Product Specification

    ES-10.24KWH User Manual 2 Product Specification 2.1 Size and Weight Table 2-1 ES-10.24KWH Device size Nominal Nominal Product Dimension Weight Voltage Capacity ES-10.24KWH DC51.2V 200Ah 673×618×193mm ≈98kg 2.2 Performance Parameter Table 2-2 ES-10.24KWH performance parameter Item Parameter value Nominal Voltage(V) 51.2...

  • Page 9: Dip Switch Definition And Description

    ES-10.24KWH User Manual Item Name Definition OFF/ON, Power switch must be in the "ON" state when in use DRY CONTACT Reset Restart all battery settings DIP switch RS485 Communication cascade port, support RS485 communication Communication cascade port, support CAN communication...
  • Page 10 ES-10.24KWH User Manual...
  • Page 11 ES-10.24KWH User Manual Table 2-4 Pin Definition Table 2-5 LED status indicators...

  • Page 12: Battery Management System(Bms)

    ES-10.24KWH User Manual 2.4 Battery Management System(BMS) 2.4.1 Voltage Protection Discharging Low Voltage Protection： When any battery cell voltage is lower than the protection value during discharging, The over-discharging protection starts, and the battery buzzer makes an alarm sound. Then battery system stops supplying power to the outside.

  • Page 13: Other Protection

    ES-10.24KWH User Manual 2.4.4 Other Protection Short Circuit Protection： When the battery is activated from the shutdown state, if a short circuit occurs, the system starts short-circuit protection for 30 seconds. Self-Shutdown： When device connects no external loads and power supply and no external communication for over 72 hours, device will dormant standby automatically.

  • Page 14: Installation And Configuration

    ES-10.24KWH User Manual 3 Installation and Configuration 3.1 Ready for installation Safety Requirement This system can only be installed by personnel who have been trained in the power supply system and have sufficient knowledge of the power system. The safety regulations and local safety regulations listed below should always be followed during the installation.

  • Page 15: Technical Preparation

    ES-10.24KWH User Manual Name Clip forceps Wrist strap Wire stripper AVO meter Electric drill Tape 3.1.3 Technical preparation Electrical interface check Devices that can be connected directly to the battery can be user equipment, power supplies, or other power supplies.

  • Page 16: Engineering Coordination

    ES-10.24KWH User Manual 3.1.5 Engineering coordination Attention should be paid to the following items before construction:  Power line specification. The power line specification shall meet the requirements of maximum discharge current for each product.  Mounting space and bearing capacity.

  • Page 17: Communicate Inverter

    Step 2:Turn on the battery and inverter and wait until they are working properly. The battery is configured by factory default to communicate with the Voltronic/Victron (RS485) inverters and DEYE,Sunsynk, ESENER(Hybrid),Luxpower,Sofar, TBB(CAN)inverters, the battery will automatically select and communicate with one of these inverters.
  • Page 18 ES Eener Pty Ltd. Address: Unit 9, Summit Square 1, Corporate Park North, 347 Roan Crescent, Midrand, Gauteng, South Africa, 1685. Email: info@esener.co.za Website: www.esener.co.za...
