Moso Canopy 4G Outdoor
Model: SCO4255P
(with PoE Injector)
Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SCO4255P and is the answer not in the manual?

Questions and answers

Related Manuals for Mosolabs SCO4255P

Summary of Contents for Mosolabs SCO4255P

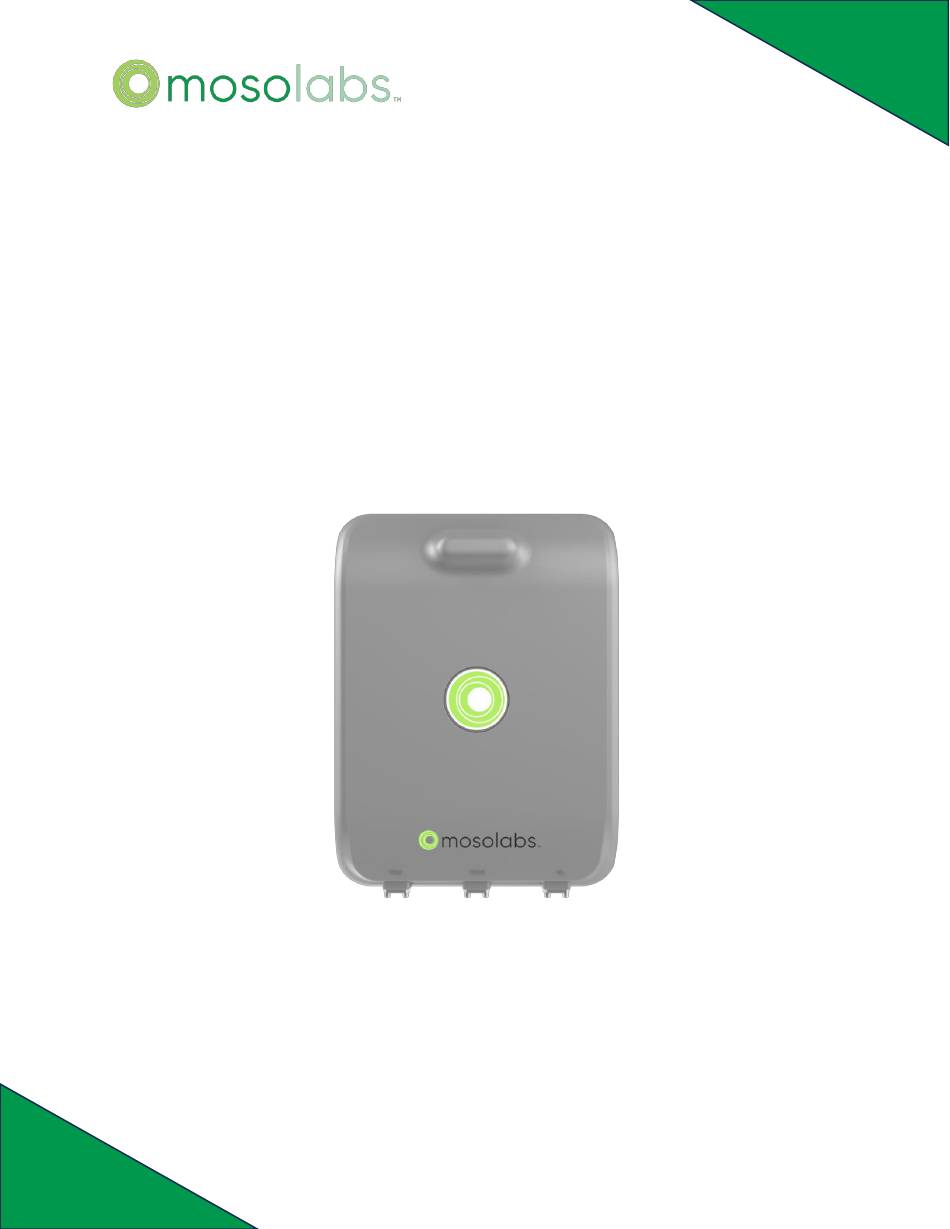

  • Page 1 Moso Canopy 4G Outdoor Model: SCO4255P (with PoE Injector) Installation Guide...

  • Page 2: Table Of Contents

    EVICE ON THE RACKET NSTALLED IN 4: I RJ45 C (45W / 1 G ) ..................... 12 NSTALL THE ABLE 5: I ........................... 12 NSTALL THE ROUNDING ABLE 6: F .............................. 14 UNCTIONAL ..............................15 AFETY NFORMATION Copyright MosoLabs Inc. 2023...

  • Page 3: Introduction

    Introduction Moso Canopy 4G Outdoor (model SCO4255P) is an outdoor radio designed to improve coverage and capacity, enabling you to build a secure and resilient private network. General Installation Overview 1. Survey the installation site and develop an installation plan.

  • Page 4: Bracket (Pole Mount)

    Bracket (Pole Mount) Pole Diameter: 50120mm Copyright MosoLabs Inc. 2023...
  • Page 5 M12 Screw Pack: 1 – M12X130mm bolt 3 – M12 nut 3 – M12 flat washer 3 – M12 spring washer Copyright MosoLabs Inc. 2023...

  • Page 6: Grounding Cable And Fixing Bracket

    Grounding Cable and Fixing Bracket M8 Screw Pack: 5 – M8X16mmHexagon socket screw 5 – M8 flat washer 5 – M8 spring washer I/O Interfaces PoE++ (WAN) DC Power Copyright MosoLabs Inc. 2023...

  • Page 7: Dimensions

    Dimensions 286.2mm 115mm 410mm Copyright MosoLabs Inc. 2023...

  • Page 8: Initial Installation

    If you have the optional Power Adapter and Power Bracket, instructions are below. If you DO NOT have the optional accessories, skip to section titled “Step 1: Assemble the Pole Mount Bracket.” Power and Power Bracket Copyright MosoLabs Inc. 2023...
  • Page 9 Step 1: 4 screws are attached to the lock, fix the bracket on the bottom shell. Step 2: Place the power adapter on the bracket. NOTE: The connector for the Power adapter corresponds with the power port. Copyright MosoLabs Inc. 2023...

  • Page 10: Step 1: Assemble The Pole Mount Bracket

    Step 1: Assemble the Pole Mount Bracket The positioning hole faces down Note the sequence of screw and washer (From M12 Screw pack) Copyright MosoLabs Inc. 2023...

  • Page 11: Step 2: Mount The Bracket On The J-Pole Or Other Mounting Pole

    Step 2: Mount the Bracket on the J-Pole or Other Mounting Pole Note the sequence of screw and washer (From M12 Screw pack) Copyright MosoLabs Inc. 2023...

  • Page 12: Step 3: Mount The Device On The Bracket Installed In Step 2

    Step 3: Mount the Device on the Bracket Installed in Step 2 Align the positioning pole Lock with M8 screws Adjust the tilt head required by the device Copyright MosoLabs Inc. 2023...

  • Page 13: Step 4: Install The Rj45 Cable, Poe++ In (45W / 1 Gbps)

    Step 4: Install the RJ45 Cable, PoE++ in (45W / 1 Gbps) Assemble waterproof cover Copyright MosoLabs Inc. 2023...
  • Page 14 Assemble WAN/PoE ports Copyright MosoLabs Inc. 2023...

  • Page 15: Step 6: Functional Test

    Step 6: Install the PoE Injector Install the PoE injector. 1. Connect the device WAN/PoE port to PoE injector POE port through Ethernet cable. 2. Connect the PoE injector power port to the power socket through power cord. Copyright MosoLabs Inc. 2023...

  • Page 16: Safety Information

    Disconnect power from the unit when performing a maintenance task. When powered by a power adapter, the adapter should be properly grounded. Copyright MosoLabs Inc. 2023...
