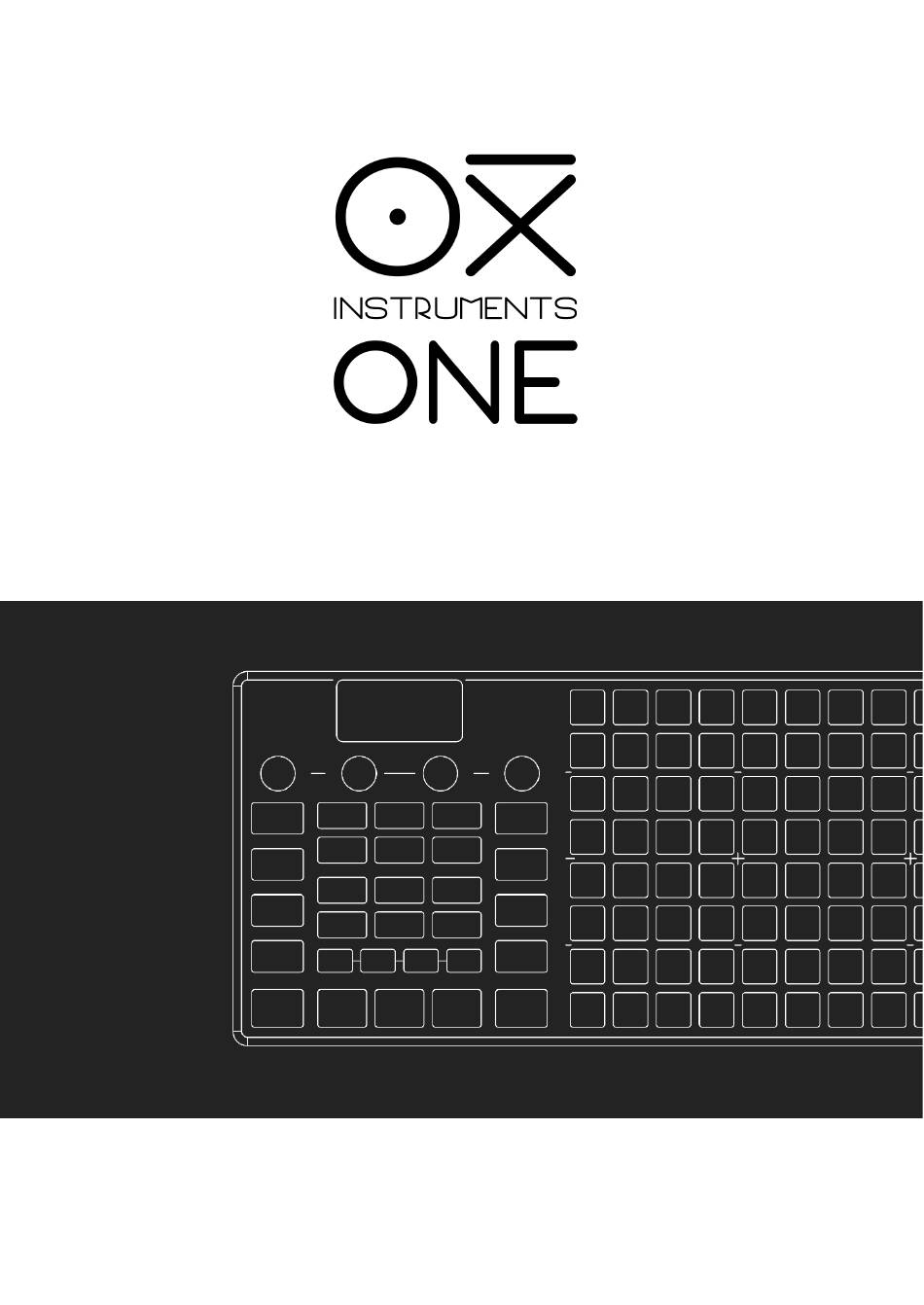

Page 1 USER GUIDE V 3.8...
Page 2 Information contained in this manual is subject to change without notice and does not represent a commitment on the part of OXI ELECTRONIC INSTRUMENTS SLU, hereby OXI Instruments. The software described in this manual is provided under the terms of a license agreement or non-disclosure agreement.
Page 3 Thank you for purchasing OXI One. The Oxi One is the result of a couple of musicians in need of a more inspiring sequencer. By supporting us, you are helping to keep this instrument up to date, to bring new features over a long period of time and to develop other instruments and tools in the near future.
Page 4: Please Read Carefully Before Proceeding
● speciﬁcations) to plug your OXI One to a computer or to charge OXI One’s battery. Use only a 5V supply to power or charge your OXI One. Using the wrong power supply will ● damage your OXI One and it won’t be covered by the product warranty.
Page 5 Always turn the power oﬀ when the instrument is not in use. ● The OXI One should not be exposed to water (dripping or splashing) and no objects ﬁlled with ● liquids, such as vases, should be placed on the apparatus.
Page 6 Exploring a new instrument and manual for the ﬁrst time can be very fun and informative, but take your time! There’s a lot going on in the OXI One and attempting to master every aspect of it should not be the goal ‘right oﬀ the bat’. Feel free to gloss over this manual in its entirety or jump straight to the chapters that excite you the most.
Page 7: Specifications
SPECIFICATIONS Electrical speciﬁcations: 5V DC 1.7A (USB type C supply) Li-Po Battery 2200mAh Radio equipment: Bluetooth 5.0, 2.4GHz, Tx Max: 4 dBm Mechanical speciﬁcations: Aluminum chassis & Silicone buttons Dimensions: 36 x 13 x 3 cm Weight: 890 gr. Operating temperature: 10 ºC to 36 ºC INPUTS AND OUTPUTS ·...
Page 8 NOT INCLUDED · TRS to DIN5 Clock adaptor (Grey color): Exposes One's Clock and Start-Stop IN and OUT to other gear’s DIN SYNC ports · TRS to TR-TR stereo splitter (Pink color or Black and Red): Splits the Clock and Reset outputs of the OXI One in two mono outputs.
Page 9 INDEX WELCOME PRECAUTIONS INTRODUCTION SPECIFICATIONS INDEX VERY QUICK START · BATTERY BATTERY CHARGE SIGHT AND TOUCH · GRID · SCREEN · SEQUENCERS SEQUENCER SETTINGS GLOBAL MIDI CHANNEL MIDI OUTPUT PROGRAM CHANGE SEQUENCER MODE SEQUENCER SETTINGS PAGE 2 PUNCH-IN QUANTIZATION RESET BANK COLOR STEP PARAMETERS...
Page 10 · TRANSPORT RECORDING MENU COUNTDOWN STEP RECORDING / EXT. INPUT CAPTURE RECORDING QUANTIZATION OTHER TRANSPORT COMMANDS TRANSPORT CC COMMANDS · NUDGE · KEYBOARD - PREVIEW · PAGES ARROW MOVEMENTS · LOAD AND SAVE MEMORY ACCESS QUICK LOAD QUICK SAVE QUICK ERASE NOTES ABOUT PATTERN STORAGE LOAD SAVE MENUS PATTERN MENUS...
Page 11 SCALE QUANTIZATION · ARP · ROLLER MOD LANES LANE SELECTION MULTITRACK LANE SELECTION MOD LANE ON - OFF LANE SETTINGS MOD EDITING MOTION RECORDING DRAWING MODULATIONS MOD CV IN CV TO MIDI CV AS INTERNAL MODULATION LFOs LFO RANGE CC Destinations PITCH BEND INTERNAL Destinations CV LFO Output...
Page 12 CHORD BANKS RECORDING CHORDS CHORDS INTERNAL MODULATION · MULTITRACK SELECTED TRACK & MULTITRACK EDITING CLEAR SINGLE OR ALL TRACKS TRACK SELECTION TRACK PARAMETERS DIVISION (Y Div) STEP PARAMETERS MULTI KEYBOARD update! · POLYPHONIC STEP PARAMETERS · STOCHASTIC GENERAL CONTROLS TIPS STOCHASTIC &...
Page 13 SONGS CLIP LAUNCH PATTERN OVERRIDE MASTER LANE CV GATE conﬁguration WORKFLOW CV ROUTING PITCH VOICE PITCH ALLOCATION NOTE VELOCITY TRIG ENVELOPE LFO - MOD GATE ROUTING GATE CLOCK CV GATE STATUS MIDI to CV conversion CV INPUT SHORTCUTS AUTO SYNC INTERNAL CLOCK FALLBACK ANALOG CLOCK CONFIGURATION...
Page 14 Turn ON your OXI One by pressing the power button on the left side. OXI One will show you the main view: the Sequencer Layout. To start playing, press the Play button. The transport bar will start moving and loop on the grid.
Page 15: Battery Charge
4 available sequencer slots. ––––––––––––––––––––– Turn OFF OXI One by holding the power button for at least 2 seconds. It will remember its last state after the next startup: loaded project and conﬁguration. Clock settings won’t be remembered.
Page 16 SIGHT AND TOUCH ––––––––––––––––––––– The information displayed by the following elements refers to the selected Sequencer. ––––––––––––––––––––– · GRID The grid has 128 RGB LED lit pads. On power up, the Sequencer View is displayed. Here, each column of pads represents a step of the sequence and each row represents a note (depending on the selected scale) or a track (in Multitrack mode).
Page 17: Sequencer Settings
MIDI channel and output. See the Multitrack Mode section for details. NOTE: The MIDI In Channel Filtering setting deﬁnes how OXI One routes the input MIDI data to the diﬀerent sequencers. MIDI OUTPUT Deﬁnes where the Sequencer MIDI data is through: ALL, TRS, USB or BLE destinations.
Page 18: Step Parameters
In Gate values, after the maximum value of 100 you have TIE, to set two steps as a tied notes. After TIE there’s LEGato, in which the Note ON message of the next note is sent before the Note OFF of the previous one to enable the legato behavior on the synth, for example for glides. MODULATION PARAMETER Every Sequencer has 4 Modulation Lanes except for Multitrack that has 8 (1 per track in 2 banks of 4), to access them press the MOD button.
Page 19 ADDITIONAL STEP PARAMETERS There are extra step parameters that can be accessed by holding SHIFT and pressing any grid pad or toggling the Step-Chord button. This is an overview of these parameters, all the information can be found in the Sequencer Modes section. Glide, it sets the time of the pitch to change continuously between two consecutive notes.
Page 20: Primary Functions
· GATE (secondary function: Scale) · MODulation (secondary function: Root) The encoder values appear as a pop-up on the screen. For most of the function buttons and secondary functions, the screen will display 4 parameters, as shown on the right. The encoders modify the corresponding parameter position on the screen.
Page 21 Gate aﬀects directly the Decay time of the AD Trig envelope in CV Out. One click of the MOD encoder displays the modulation values of the active lane in column chart form. The screen shows the MIDI parameter destination. Turn the encoder to change the selected modulation lane.
Page 22: Secondary Functions
Tempo aﬀects all the Sequencers. To modify it, press Shift + turn the 1st encoder. The default tempo value can be modiﬁed in the conﬁg menu. It only works when the OXI One is in INT (internal) synchronization mode (see Synchronization section).
Page 23 ROOT NOTE The default root note is C2, but we can easily change it by pressing SHIFT and rotating encoder 4. As with the previous parameters, by pressing SHIFT and the encoder button, the root note is set to the default value, C2. Both Scale and Root can be locked on the Conﬁguration menu to prevent any unwanted modiﬁcation during a performance.
Page 24: Function Buttons
FUNCTION BUTTONS TIP: Jump to the Sequencer Mode section and skip the Function Buttons section if you want to start working with Mono, Chord, Multitrack or Polyphonic sequences right away. There are links to bookmarks to help you navigate when a Function Button is mentioned. However, reading the function buttons section ﬁrst helps to get familiar with the general workﬂow through all the sequencers.
Page 25: Recording Menu
STEP RECORDING / EXT. INPUT CAPTURE When the OXI One is stopped, press the Rec button and the step recording will be enabled. Then, in the sequencer view, keep any step pressed and any input MIDI note from an external source (MIDI keyboard or controller) will be recorded into the pattern.
Page 26 TRANSPORT CC COMMANDS In order to control the Transport of a DAW or any other device when OXI One is not the Master (thus realtime messages are ignored by the master), you can assign a MIDI CC message to Stop, Play and Rec.
Page 27 16 will show 80, 32 will show 96 and so on. The page button will be lit up in blue in this case. OXI One makes it more ﬂuent to navigate between the 4 ﬁrst pages or the last 4 pages, since it takes into account which of them you are on before switching to another block.
Page 28: Load And Save
To save a sequence, hold the Save button, Memory Access view for the current project will show up on the grid. This layout is independent of the Sequencer you have selected. The 4 top rows of pads of the grid show the Patterns, one row per Sequencer. Each slot contains one pattern of one single sequencer.
Page 29: Quick Save
(when the arranger is OFF) or immediately if OXI One is stopped. If the load quantization is OFF, the new pattern will be instantly loaded in sync with the previous one, and the playhead will keep its previous position. Otherwise, the pattern will be loaded when the quantization happens, and the playhead resets from the beginning.
Page 30: Quick Erase
· Every slot can store one pattern. The sequencer MODE (Mono, Chord, etc.) is part of the stored data, so diﬀerent patterns of the same sequencer could be of diﬀerent modes. The sequencer will automatically change its mode when the pattern is loaded.
Page 31: Pattern Menus
”) to a couple of hundred (“Duplic proj here ”). This means that if you do it when the OXI One is playing, it may have a negative impact on your performance. PATTERN MENUS Some menus diﬀer if the selected slot is the loaded one or not.
Page 32: Copy And Paste
Multitrack as a storage to free up a Sequencer slot. · Copy/paste one Multitrack track into another. Press Copy and tap the ﬁrst pad of the source track, then press Paste and tap the ﬁrst pad of the destination track.
Page 33 · Pasting from a Stochastic sequencer will overwrite the sequencer mode except pasting in Mono, where the notes of the stochastic buﬀer will be translated to the monophonic sequence. · Copy/paste pages of 16 steps (32, 48, etc.) onto another page. ·...
Page 34: Undo And Redo
· CLEAR Shift + Paste activates Clear. In the sequencer view, press SHIFT + Clear to erase all the note events of the sequencer or selected track in Multitrack mode. Press SHIFT and long press Clear to Full Clear the sequencer. Steps information, time division, pattern length, note oﬀset, randomization settings, etc.
Page 35 Sequencer number button + Init or End and the desired step. In order to improve the workﬂow, setting the pattern start step further than the current ﬁnal one will oﬀset both positions in an amount equal to the pattern length.
Page 36 ––––––––––––––––––––– You can also Press and Turn 2nd Encoder (Oct) to quickly perform Vertical Scroll or Track selection ––––––––––––––––––––– Playback direction being forward, backward, pendulum and random. In Multitrack mode, this parameter is independent for each track. Random Time Division introduces division changes to give more or less unpredictable rhythms to your sequence.
Page 37 probability of playing the note in diﬀerent octaves, but also increases the octave range of the randomization. Rand Probability of notes being triggered, 100% means no randomization. Rand Retrigger probability, which introduces ratcheting eﬀect on steps. In Mono and Multitrack modes it also aﬀects Skip (step parameter) the following way: With negative values, add skips to the steps.
Page 38 Random scale: if “Yes”, it randomizes the scale and root note of the sequencer. Humanize introduces time oﬀset, gate and velocity variations on the generated pattern. Ties: sets the probability amount of TIED notes appearing. Random Generator is destructive, it works from the start to the end points of the pattern, overwriting what is there.
Page 39 To activate any of the three lanes, hold button and tap any of the 3 pads (second column) in dimmed blue color, one for each lane. A tooltip in the screen should appear indicating the status of the engine in the corresponding track.
Page 40 · LFO - CV GATE There are 2 LFOs per Sequencer and both can modulate one internal and one MIDI parameter. A quick tap will open the menu, a long press will open it momentarily until button release. Tap again to enter in the second LFO menu.
Page 41 · BACK - CONFIG Back gets you back to the previous screen. Keep it pressed to go to the main sequencer view. Shift + Back opens the Conﬁguration menu. Go to the Conﬁguration section to learn more.
Page 42 The isomorphic layout has been added in the 3.0 update. The main diﬀerence with the classic layout is that there is a ﬁxed interval between one pad and the one just above it. This interval can be a perfect 4th or a perfect 5th. This rule makes sure that the notes are arranged in a completely diﬀerent way.
Page 43 Isomorphic layout in 4ths, C Chromatic Scale. Isomorphic layout in 5ths, Major Scale. In isomorphic layout the base note is Highlighted (except in chromatic scale). The encoders in this mode modiﬁes: Velocity of the notes triggered from the keyboard. Pitch Bend. Works as a pitch bend of a keyboard. Press the encoder to set it to 0.
Page 44 You can choose from a wide range of arpeggiator modes and we encourage you to test them all! 8 Patt is an interesting one where a predeﬁned rhythm is applied to the incoming notes before the arp engine (up, down, In, Out) decides which note to play. The rhythm depends on the number of active notes.
Page 45 1/4 , 1/4T, 1/8 , 1/8T , 1/16 , 1/16T, 1/32, 1/32T The roller will work with one (mono) or several notes (polyphonically) at once. Press SHIFT + Hold to hold the notes of the keyboard and you will have the roller working on top of...
Page 46 If the selected track is one of the ﬁrst four (1 - 4), the MOD menu will show the modulation lanes of tracks 1 to 4. And if the selected track is one of the last four (5 - 8), it will show the information of...
Page 47 Since there are 8 modulation lanes available, 2 diﬀerent ways of toggling from the 4 ﬁrst lanes and the 4 later ones have been implemented. 1- Hold the MOD button and tap any of the rows of the grid. This will automatically show the modulation lane of the new selected track.
Page 48: Motion Recording
0 means the smooth factor is ‘Oﬀ’ and the modulation instantly jumps from one step value to the next one. This parameter aﬀects the CV outputs as well when a MOD Lane is assigned to a LINKED: MOD Lanes are by default linked to the note pattern, this means that any change applied outside the MOD view (start/end points, division, clear, expand, condense, etc.) will also...
Page 49 If you press any step, the modulation value will be automatically set. For ﬁner adjustments you can hold any pad of the grid and use the encoders. When doing so, the screen will show the 4 modulation values of that step, you can modify any of them with the encoders. Click the encoder button to reset the modulation value to 0.
Page 50 MOD CV IN OXI One has one CV input (which also acts as Start-Stop / Reset In) that can be routed to either internal parameters or be sent to external CC. Double tap the MOD button to enter this menu. You can conﬁgure 2 internal and 2 external destinations PER SEQUENCER.
Page 51: Pitch Bend
LFOs Another great way to create variation on your sequences is to automate parameters with the LFOs. There are 2 LFOs per Sequencer and both can modulate one internal and one MIDI parameter. LFO RANGE The LFO output range depends on the chosen destination. It has been adjusted to get the optimal control for each use case.
Page 52 Press Shift + click 3th encoder to toggle the 3th parameter between Amount and Oﬀset. Internal Destination. The number of internal destinations depends on the sequencer mode. Some examples are Velocity, Note (quantized to scale), Octave, Gate, CV Pitch Bend, Time Division, etc. The full list of available parameters for each mode can be found in the Internal Destinations Table.
Page 53 INTERNAL DESTINATIONS TABLE Depending on the sequencer mode, there are diﬀerent internal destinations available. Remember: LFOs and Ext CV are bipolar while MOD lanes are unipolar (unless oﬀset is applied). COMMON OPTIMAL RANGE CHORD OPTIMAL RANGE Velocity 0 - 100 Chord Root 0 - 7 Pitch (scale quantized)
Page 54 HOW MODULATIONS ARE APPLIED Amount is not normalized between destinations. It depends on how many values the parameter has. For example 1 amount is 1 semitone or 1 octave. LFO waves have 23 or so values, so once you reach that value increasing the amount, you are maxing out the modulation and whatever portion of the wave that goes above will keep the maximum parameter.
Page 55: Sequencer Modes
+ turn the 2nd encoder. The row being highlighted is your root note. When one note is on a higher or lower octave, a led will light up on the top or bottom row indicating the higher or lower pitch, the note will be also visible on its respective row, so it helps you to have all the notes at sight and controlled.
Page 56 STEP PARAMETERS Hold one or more notes at the same time (active or not) to see their step parameters and the note information. You can change with each encoder the Velocity, Octave (a pad will light up on the edge of the column as indication of the octave positive or negative oﬀset),...
Page 57 You can quickly transpose the whole chord progression by holding the respective Sequencer button and pressing an empty pad higher or lower than an active one. The distance from the active note to your pressed pad in the column will dictate the transposition direction and distance.
Page 58 A double tap on the Step-Chord button (steady white light) will enable the step submenu, which can be seen by holding one or several steps at once. You can also press SHIFT + hold a step to access this second layer of step parameters.
Page 59 The chord mode has a built-in arpeggiator which takes the notes from the chords as an input. These arpeggiator parameters are equivalent to the ones shown in the ARP screen with one exception, OctOfs or Octave Oﬀset instead of Gate. OctOfs sets the number of steps before there’s any octave switch when Oct (octavation) is diﬀerent to 0.
Page 60 After playing any chord on the keyboard, getting back to the sequencer view, the next chord you enter in the grid will be exactly the same as the one you last played. This function is called Pick and Place. GLOBAL CHORD MENU...
Page 61 Minor, Harmonic Minor and Melodic Minor (ascending). RECORDING CHORDS Chords can be recorded per step, one chord per step that contains the chord info. Chords can also be recorded using the Chord modiﬁers of the Chord built-in keyboard: Chord Type, Voicing and Spread.
Page 62 · MULTITRACK The Multitrack Sequencer is one of the biggest values of the OXI ONE, with its 8 separate tracks it's perfect for drawing drum patterns or monophonic melodies as well to have direct control of them in one layout.
Page 63 In Multitrack mode instead of Random Octave you have Random Gate, it doesn’t aﬀect the TIEs. For example, this is handy to use the LFO to send velocity modulation on a hi-hat track and not aﬀect other tracks. SELECTED TRACK & MULTITRACK EDITING In Multitrack mode, the function buttons aﬀect by default the selected track.
Page 64: Track Selection
CLEAR SINGLE OR ALL TRACKS Press SHIFT + Clear to erase all the note events of the selected track. Or press SHIFT and long press Clear to fully reset all tracks. Steps information, time division, length and note oﬀset will be set to default values but MIDI channels and MOD destinations of every track won’t be aﬀected.
Page 65 DIVISION (Y Div) In Multitrack, Division menu parameters are set per track. This means you can select: Track Selection to choose which track you are editing on the same screen. Playback Direction of the track, being Forward, Backward, Pendulum and Random. Division Randomization of the track, from 0 to 100% of probability each step that the track’s Time Division is going to change.
Page 66 14th column selects Arm Track. Without any selection and by default, the 8 highlighted pads play each track (track trigger). If you select one track in this column, the keyboard will play as a regular full keyboard on that track (remember MIDI channel can be set diﬀerently per track).
Page 67 ––––––––––––––––––––– With HOLD active, you can arpeggiate notes independently of each sequencer at the same time. –––––––––––––––––––––...
Page 68 · POLYPHONIC Polyphonic allows you to have total freedom of up to 7 notes per step and up to 128 steps. STEP PARAMETERS ● Glide (only aﬀects the cv outputs set to pitch) ● Probability and logic conditions per note ●...
Page 69: General Controls
· STOCHASTIC The stochastic mode is a generative mode to generate rhythmic and melodic ideas in a controlled random way. In this mode, the grid acts as an interface to parametrize a stochastic pattern generator. Although the playhead movement is shown on the grid, it has no positional relation to the controls of the generator. It is, in fact, playing an invisible evolving pattern that you can lock if you choose to.
Page 70 Many existing functions in the OXI One work in this mode as well, like Random Perform, Time division settings, CV-Gate layout, MOD lanes, etc. TIPS ● Set 0% on those last two columns to instantly capture the current sequence, and then low % to make the rhythm evolve a little bit over time ●...
Page 71: Track Settings
Assigning diﬀerent lengths and speeds to diﬀerent parameter lanes can create evolving and complex patterns with very few steps; this is the magic of the Matriceal mode. And you have 4 tracks in one single sequencer to experiment with!
Page 72 Track time division. It deﬁnes the speed of the trigger lane. Note that the main sequencer screen shows the division of the selected track. Transport direction of the trigger track. The transport direction of the selected track is also shown in the main sequencer screen. TRIGGERS When starting working with Matriceal mode, there is no parameter page selected, all parameter LEDs are lit in bright color and the steps area shows the triggers.
Page 73 If any parameter is selected, the parameter page button has a brighter color (the others have a softer one) and the steps area indicates the parameter values. How the values are shown in the grid depends on the selected parameter.
Page 74 INTERVAL (salmon pink) The interval lane is one of the most interesting features of this mode. Instead of deﬁning a static pitch value, it is an accumulative value that deﬁnes the next interval or position of the selected scale.
Page 75 summed. Once the accumulated value reaches the Minimum value (Min) deﬁned in the Interval lane settings, it goes back to the Maximum value (Max); and vice versa. The interval is also evaluated between ratchets/step repeats. Interval lane settings The Interval step screen is equivalent to the note step screen. Interval step options TIP: Play with subtle interval variations mixed with simple pitch sequences with diﬀerent speed and length to get a simple but evolving melodic idea.
Page 76 ﬁnal pitch is based on the active chord progression of the “Leader” HARMO SETUP Set at least one of the sequencers in Chord or Poly modes. When there is one sequencer in Chord or Poly mode, the other sequencers (in Mono, Poly, Multitrack or Stochastic modes) will have a new scale option available: HARMON.
Page 77 So, if there’s a step in C3 and another in C2 in the Follower sequencer, the resulting notes after the harmonizer engine are one octave from each other (not necessarily a C, it depends on the chord). But if instead of a C2 or a D2, a B2 is set (still lower than C2), the resulting note depends on the chord that the master is playing at that moment, and it can result in a higher pitch note.
Page 78: Grid Layout
ARRANGER This is the place to create your Songs, link several patterns or launch them manually. To activate the Arranger playback hold Shift + Arranger, you'll see “Arranger ON” on the screen. The Arranger is then ready for playback. Turn OFF Arranger from playing with the same command. The Arranger is deactivated once you play Stop.
Page 79 When the pattern playhead has met the launch quantization settings, the play count decreases by one. When the repetition count reaches 0 the next pattern is loaded. In case of the Multitrack mode, track number 1 is taken as the reference one.
Page 80: Important Note
On the main screen you can see on the right the countdown for each arrangement track pattern to change to the next one and a progress bar of it. If the current pattern is looped a round arrow will indicate this.
Page 81 Press LOAD + any arranger slot. MASTER LANE The master lane is the one that controls the progression of the arrangement. Any of the 4 sequencers can act as the master. The sequencer set to master will carry the progression of the arrangement, so the other sequencers move to the same slot of the master independently of the pattern length and slots repetitions.
Page 82 CV GATE conﬁguration Shift + LFO opens the CV Gate grid layout. This mode is shared by all Sequencers to avoid overlapping routings. There’re 8 cvs and 8 gates that can be fully conﬁgurable in real time with playback on, this means you can use this layout as an innovative tool for performance.
Page 83 · Matriceal up to 4 voices (1 per track) Pitch, Gate, Velocity and Trig Envelopes modulation sources are correlated by voice number. After selecting one of these sources you can choose which voice it reads from with the ﬁrst encoder, for example: PITCH If the cv is set to pitch, ﬁrst parameter is the voice index.
Page 84 Conﬁguration example CV Settings CV 1 set to Pitch and assigned to SEQ 1 CV 2 set to Pitch and assigned to SEQ 2 CV 3 set to Vel and assigned to SEQ 2 CV 4 and CV 5 set to pitch Voice 1 and Voice 2 assigned to SEQ 3 CV 6 set to Pitch and assigned to SEQ 4 CV 7 and CV 8 set to TrigEnv and assigned to Track 1 and Track 2 respectively of SEQ 4 GATE Settings:...
Page 85: Note Velocity
Not Gated: the voltage of this output is always proportional to the velocity of the last note. TRIG ENVELOPE In OXI One we have introduced Trig Envelopes, an Attack-Decay envelope that changes dynamically with the Velocity and Gate of the step.
Page 86 LFO - MOD The last sources for modulation, at the bottom row, are the LFOs and the Modulation Lanes. When selected, the 1st encoder lets you choose from LFO 1 or 2 or Mod Lanes from 1 to 4 (1 to 8 on Multitrack sequencers) as source.
Page 87: Analog Clock
To do so, just conﬁgure the MIDI channel of the Sequencer routed to the CV and Gate outputs you want to use. OXI One can currently convert Note On, Note Oﬀ and Pitch Bend messages to CV. For this purpose you need to assign one or more CVs to pitch, allowing you to play polyphonically.
Page 88 SHORTCUTS Turquoise represents the secondary color, all secondary functions are triggered/accessed with SHIFT button. GENERAL SHIFT + Sequencer 1-4: Sequencer conﬁguration screen - MUTE + Sequencer 1-4: Turn On/Oﬀ the sequencer for playback - MUTE + 1st column pad: Mute/Unmutes the sequencer or track in Multitrack - SHIFT+ MUTE + Sequencer 1-4: Restart the sequencer playhead according to the punch in settings SHIFT + Keys (Preview): Turn On/Oﬀ...
Page 89 distance and direction set by the pad pressed - Init + End + two steps: LOOP activated between the pressed steps. - Double click Page number: Access to 80, 96, 112 and 128 Pages respectively - Init + Page button (16, 32…, press twice to access longer Pages; 80, 96...): Select the ﬁrst step of the selected page as the initial step of the sequencer.
Page 90 MIDI: OXI One follows the clock timing received through the MIDI TRS jack or MIDI Bluetooth. CLK: OXI One follows the clock timing received through the clock input. OXI One reads and outputs MIDI clock according to a 24 ppq timing. The analog clock input and output resolutions can be changed in the Conﬁg menu.
Page 91 OXI One is playing and low when stopped. On the other hand, when Sync is set to Clk the OXI One will only play if the run-stop or start-stop input signal is high and stop otherwise.
Page 92 CONFIGURATION This menu shows global parameters that aﬀect OXI One as a whole. Some of them are presented as customization options so the user has the best experience with the instrument. You can choose what options adapt best to you.
Page 93 OXI One is playing and low when stopped. On the other hand, when Sync is set to Clk the OXI One will only play if the Reset input signal is high and stop otherwise.
Page 94 ○ Host+Power: OXI One acts as a USB MIDI Host providing power to other USB devices. ○ Host No Power: OXI One acts as a USB MIDI Host without providing power. Required by some USB adaptors. ○ Device Self Powered: OXI One acts as a USB MIDI Device without getting power from the USB outlet.
Page 95: Midi Routing
MIDI ROUTING By default OXI One will MIDI Thru messages from one source to another. For example, the MIDI data received via Bluetooth MIDI (BLE MIDI) will be output through USB MIDI, TRS MIDI output and, if any CV/gate assigned to a sequencer, to the respective CVs or gates.
Page 96 To use your OXI Split, ﬁrst you have to enable it in the Conﬁg menu. Go to the “OXI Split selection” option and choose “Enable”. When the OXI Split is connected and set up, you can choose from the OXI One which port of the Split the messages will be sent to.
Page 97 CV/Reset inputs of the OXI One. It doesn’t add any extra signal to the OXI One. Both Pipe and One’s outputs can be used simultaneously (like a passive Mult), but inputs should not be used at the same time on the One itself and the Pipe.
Page 98 MIDI BLUETOOTH OXI One incorporates MIDI over Bluetooth (BLE) and it is a dual role device. There are two ways of using it. For optimal performance, we recommend using any kind of dongle like the WIDI Master or the WIDI Jack.
Page 99 Press the Bluetooth icon and press “connect” on the Bluetooth Conﬁguration Window and that’s it. Your OXI One will be shown in your audio-MIDI apps as a MIDI device like OXI ONE BLE. WINDOWS (Windows 8.1 or above) First you must connect Windows with the Bluetooth MIDI device.
Page 100 Select OXI ONE BLE and give it a few seconds to establish the connection. It will be ready to use! ANDROID The process is equivalent to the one described for iOS. You can try with a free app like FluidSynth MIDI for Android. Once in the app, click in the menu (dots icon), open MIDI Bluetooth and select OXI ONE BLE.
Page 101 Adaptors like the following allow setting the OXI One in “Host No Power”. It can provide power to the OXI One and the other MIDI USB devices. The USB C male port should be connected to the OXI One and the USB MIDI device should be connected to the USB A...
Page 102 Found in Amazon A simple USB C to A adaptor is another great solution to use the OXI One as a USB Host and power supply. The OXI One has to be set in “Host + Power” in this case.
Page 104: Design Notes
Both have 4 modulation lanes. Mono can only have one active note per step meanwhile Poly can have up to 7 active notes per step. Then, why would you use a Mono track? Since a mono track can only have one active note per step at a time, it is convenient for quick changes on the melody, when for example you have a one-voice lead or when you are sequencing a mono synth.
Page 105 MONOME GRID Keep the SHIFT button pressed when powering on your OXI One to enable the operation as a 128 GRID device. To go back to normal operation, restart your OXI One by pressing the power button.
Page 106: Firmware Update
FIRMWARE UPDATE The App allows you to update to a newer ﬁrmware. Make sure your OXI One is in USB Device Mode. Check the USB Host section in Conﬁg, otherwise your OXI One won’t be recognized by your computer. The APP will automatically detect the ﬁrmware version of your device and check if there’s a newer version available on the server.
Page 107 It is also possible to back up your projects on your computer and send them back later to the OXI One. STOP THE PLAYBACK IN THE OXI ONE AND AVOID SENDING ANY MIDI DATA TO IT FROM ANY SOURCE !! Select the project you want to backup and press GET PROJECT.
Page 108: Calibration Table
Make sure to use a good reference like a 5 digit multimeter or a well tuned VCO (with V/Oct CV input) along with a Tuner. To enter calibration mode, press SHIFT + cv gate for more than 2 seconds until OXI One switches to calibration mode indicated in the screen.
Page 109 Press it repeatedly until the voltage oﬀset is +-0.003V (+-3mV) oﬀ the expected value. Once you have ﬁnished with all the points of the calibration curve, press C8 to save. _______________________________________________ You have to repeat the process with all the CV outputs. Every CV listens to a diﬀerent MIDI channel, CV1 listens to MIDI Channel 1 and CV2, to the MIDI channel 2 and so on, until CV8 in channel 8.
Page 110: What's New
3.0 WHAT’S NEW NEW MATRICEAL MODE A new generative mode with 4 independent sequencing tracks each of which have 9 diﬀerent and independent parameters lanes. ● TRIGGER ● GATE ● PITCH + Per step chance ● INTERVAL with MIN and MAX settings and Per step chance ●...
Page 111: Auto Clock
● chord arp div, oct, type Spread value per step Pick and Place chords: Press one chord in keyboard view or external keyboard, switch to sequencer view, tap a step and the last played chord will be entered. Fully independent and modulable chord arpeggiator built into the sequencer.
Page 112 NUDGE MENU ● Time bend increases or decreases the playback speed of any sequencer in a % of the global tempo. Independent per sequencer ● Time oﬀset time oﬀset in milliseconds for each sequencer. Cool to create delay eﬀects or compensate latency issues between synths ISOMORPHIC KEYBOARD LAYOUT The isomorphic layout has been a very requested feature.
Page 113: Declaration Of Conformity
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment oﬀ and on, the user is encouraged to try to correct the interference by one or more of the following measures:...
Page 114: Environmental Issues
• Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit diﬀerent from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help.devices. DECLARATION OF CONFORMITY The full text of the US declaration of conformity is available at the following internet address: www.oxiinstruments.com/...
Page 115: Serial Number Location
These symbols indicate that this product contains batteries and cannot be disposed as domestic waste. Once its useful life has ended, it must be taken to a relevant collection point for the correct recycling of its batteries. This product is classiﬁed as Radio Equipment. SERIAL NUMBER LOCATION: The serial number is located on the instrument body, in the label placed in the bottom side.
Page 116: Terms Of Warranty
REFUND POLICY (only in European Union) The consumer has a total of 14 days from the acquisition of the OXI One to be able to return the product thus receiving a full refund of the price of it. The product must be in the same state and with all the original content in order to receive a full refund.
Page 117 OXI INSTRUMENTS in the UE and registered in many other countries. OXI ONE is a trademark of OXI INSTRUMENTS. Design and speciﬁcations subject to change without notice. The OXI ONE may not be authorized for use in some countries.
