Draper GT7 Original Instructions

Read this manual in full before using this product and
retain it for future use. Always use the latest version of the
manual. Please visit drapertools.com/manuals for the
latest version of this manual.
1. Specification
Stock No.
Part No.
Fuel type
Approx. temperature
Operating time (one gas
filling)
Dimensions
Weight (80% gas fill)
2. Health and Safety Warnings
• Observe all standard safety precautions and good
practices when working with naked flames and
flammable fuels.
• Keep the work environment clear and well-lit, with
bystanders at a safe distance.
• Keep this product out of reach of children at all times.
• ALWAYS wear appropriate eye and face protection and
protective gloves when using this product.
• Check the torch for damaged, clogged or corroded parts
and leaks before every use.
− DO NOT use the product if it is damaged or leaking
in any way; contact Draper Tools for repair and
replacement options.
− If you suspect that the product is leaking gas, move
it to an external environment immediately.
Important: The product can be tested for leaks by
dabbing soapy water solution on joints and
connections while gas is added to or stored in the
product. Leaks will create a steady feed of soapy
bubbles at the breach point.
• Use ONLY in well-ventilated environments.
• DO NOT use this product in environments where paint
fumes, solvents and other flammable materials are
present.
• Use only good quality butane gas.
W ARNING! Butane gas is highly flammable; handle
it carefully and in accordance with the
instructions on the canister.

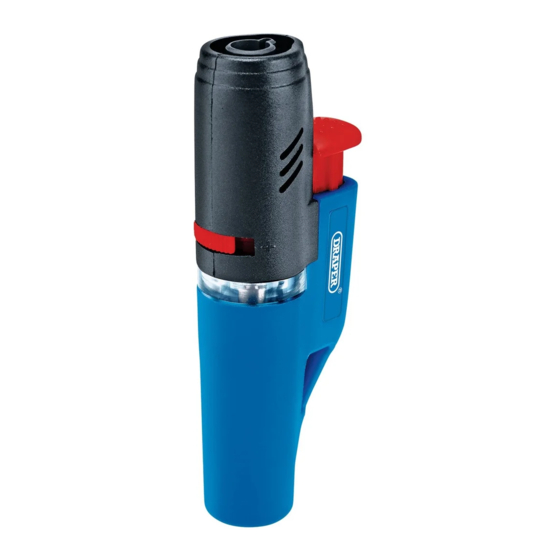

MICRO BUTANE
BLOW TORCH
78773
78773
GT7
Butane
Up to 13,00°C
20 mins approx. at mid
setting
W 90 × H 35 × Ø 20mm
36g
• During first use, allow a few minutes for the product to
settle once ignited before directing it towards the
workpiece.
W ARNING! The metal parts of the torch become
very hot during use. DO NOT touch the barrel or
workpiece until they have cooled thoroughly.
W ARNING! Avoid contact with skin, clothing or
other flammable materials.
• DO NOT leave the product running while unattended.
• DO NOT expose the product to temperatures above 49°C
(120°F) or to prolonged periods of sunlight.
• ALWAYS switch off the product while it is not in use and
ensure that the control lever remains in its lowest
position.
• After each use, ensure that the flame is fully
extinguished, the control lever is in its lowest position
and the product has completely cooled before storing.
• DO NOT attempt to disassemble or modify this tool in
any way.
• ALWAYS refuel outside.
• NEVER smoke while refuelling.
W ARNING! This product is not insulated against
electricity. NEVER use this product on workpieces
that are connected to electrical power.
3. Refuelling
W ARNING! Before filling the product, ALWAYS
ensure that the control lever is in its lowest
position. ONLY use butane gas to fuel the product.
Important: This product is not shipped with butane gas
and MUST be fuelled before use.
(A)
Fig. 1
1. Turn the torch upside-down and push the butane
can nozzle firmly into the filling valve (A).
EN
Original Instructions
Version 2 – March 2023
