Proactive Air and
Surface Sanitization
ProGuard
Defender
TM
Models: DXB Mini, DXB Mini ca
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProGuard Defender DXB Mini and is the answer not in the manual?

Questions and answers

Summary of Contents for Innovative Solutions ProGuard Defender DXB Mini

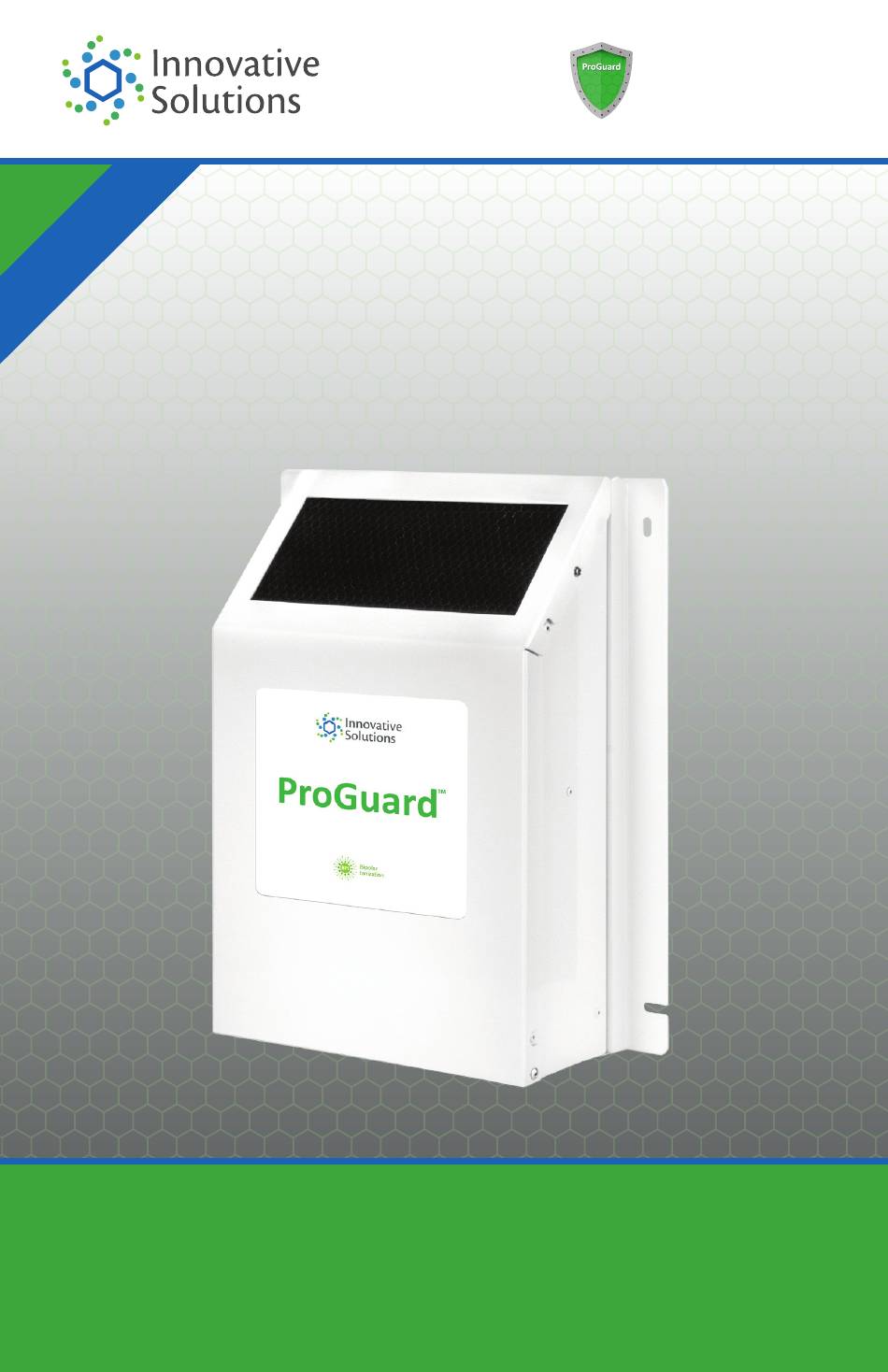

  • Page 1 Proactive Air and Surface Sanitization ProGuard Defender Models: DXB Mini, DXB Mini ca Owner’s Manual...
  • Page 2: Table Of Contents

    Read all instructions carefully in user manual before operating air purifier. About DXB Mini This unit is designed to be permanently mounted to a wall surface in several different applications. DXB Mini is ideal for purifying small rooms up to 250 sq. ft. DXB Mini is perfect for use as a wall mounted air purifier in large rooms, small offices, or similar spaces without ductwork that already provides air purification.
  • Page 3: Specifications

    Specifications Models ..........DXB Mini (1X5800) .
  • Page 4: Unit Diagrams

    Unit Diagrams Unit Front Air Outlet Unit Cover Unit Rear Mounting Bracket Power Outlet DC Power Plug Unit Internals Unit Bottom Bipolar Ionization Module ARC Cell Pre-Filter Power Compartment Air Intake...
  • Page 5: Installation

    Installation STEP 1 Determine location for desired placement of unit close enough to a power outlet to allow the included 120/240 VAC to 24 VDC power adapter to be plugged in. Typically, the angled grille should be pointed upward and mounted as high on the wall as practical, within 18 inches of the ceiling if possible.
  • Page 6: Cleaning The Unit

    Cleaning the Unit The unit will need to be cleaned inside from time to time as well. Be sure to use extreme caution when doing this in order to avoid any damage to the unit or harm to yourself. WARNING: Make sure to disconnect the unit from its power source before any maintenance or cleaning is done.
  • Page 7: Arc Cell Replacement

    ARC® Cell Replacement See Page 9 for Replacement Part Numbers. WARNING: Make sure to disconnect the unit from its power source before any maintenance or cleaning is done. WARNING: Please do not throw a used ARC Cell in the garbage. ®...
  • Page 8: Bpi Module Replacement

    BPI Module Replacement See Page 9 for Replacement Part Numbers. WARNING: Make sure to disconnect the unit from its power source before any maintenance or cleaning is done. Your BPI Module should be replaced every year. Disconnect unit from power source. Remove the Cover’s two screws along the top edge using a T-10 security screw driver.
  • Page 9: Replacement Part Numbers

    Replacements Part Numbers Please reference these part name and numbers when contacting your dealer or Innovative Solutions for replacement parts. DXB Mini Replacement ARC Cell ........1X5590 ®...
  • Page 10: Troubleshooting

    Troubleshooting ARC® Cell Doesn’t Turn On • Check for secure electrical connections • Try another ARC Cell ® • Ballast needs replaced (Visit www.Innovative-Solutions.org for contact information) Fan Doesn’t Turn On • Check for secure electrical connections • Fan needs replaced (Visit www.Innovative-Solutions.org for contact information)
  • Page 11: Warranty Information

    Genuine Innovative Solutions Parts are not covered. Innovative Solutions will, at its option, repair or replace a defective Product or part(s) for the Product that is/are covered by this warranty. As a matter of warranty policy, Innovative Solutions will not refund the customer’s purchase price.
  • Page 12 www.Innovative-Solutions.org OM REVISION: Innovative-Solutions-ProGuard-Defender-DXB-Mini-Mini-ca-Owners-Manual-211021...
