Xantech XT1 User Manual

Am fm rds / rbds tuner
Hide thumbs Also See for XT1:

Advertisement

Quick Links

Download this manual
®
XT1
AM FM RDS / RBDS Tuner
User Manual
www.xantech.com
1/16
XT1

Advertisement

loading
Need help?

Need help?

Do you have a question about the XT1 and is the answer not in the manual?

Questions and answers

Related Manuals for Xantech XT1

Summary of Contents for Xantech XT1

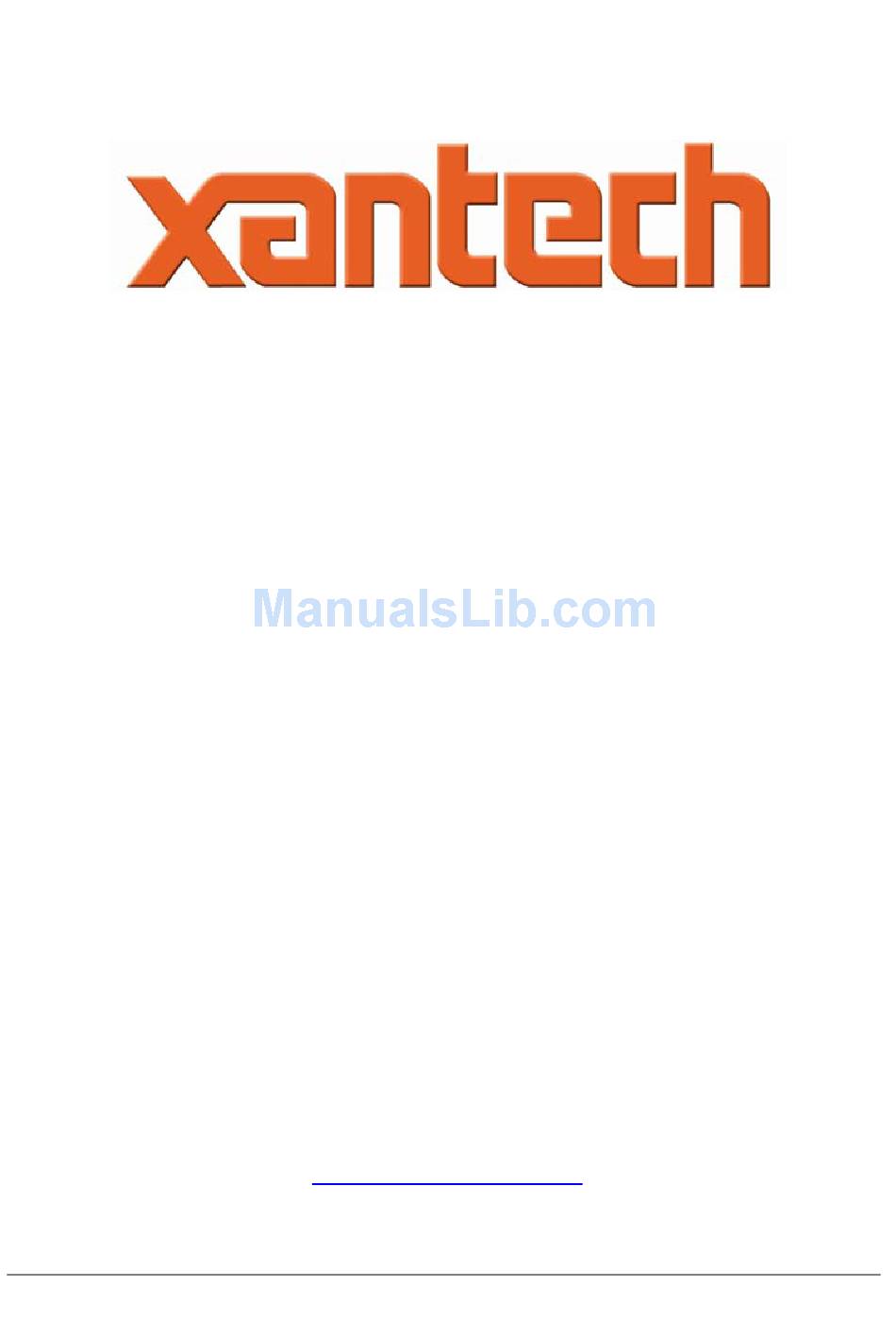

  • Page 1 ® AM FM RDS / RBDS Tuner User Manual www.xantech.com 1/16...
  • Page 2 2/16...
  • Page 3 2. Heed all warnings and follow all operating instructions. 3. Warning: To assure safety during a lightening storm, the XT1 must be grounded, refer to the diagrams on page 4. Also, if the unit is left unattended and unused for long periods of time, it is recommended that you unplug the unit from the wall AC outlet.

  • Page 4: Power Supply

    IR Receiver input To control the XT1 via IR, an IR extender system needs to be used. There is no IR receiver inside the LCD display. To connect an industry standard IR extender system, use the supplied IR cable and plug the stereo jack of this cable into the IR sensor input of the XT1, and use the mono socket to attach the IR extender output to.

  • Page 5: Lcd Display

    Front Panel Controls (1) MENU Pressing this button allows you access to the following functions: AM/FM band selection Auto/Manual tuning selection Scan the preset stations Memorize a station Set the IR Code. (2) ENTER (Power) When plugging in the power transformer the first time, the tuner will automatically turn on. Pressing this button for 4 seconds will turn the unit ON from standby (sleep mode), or put the unit into standby from its ON state.
  • Page 6 Tuner Operation MAKE AM/FM BAND SELECTION Press and release the MENU button until either the ENTER and MHz characters flash, or the ENTER and kHz characters flash. Press the ENTER button until either MHz or kHz stops flashing. Press either UP or DOWN button to obtain MHz or kHz. (note – MHz is the FM band and kHz is the AM band) Either wait until the ENTER stops flashing or depress the ENTER button.
  • Page 7 Select desired PRESET number by pressing UP or DOWN button. Press ENTER button. EZ Steps: Select desired station Press MENU four times Press UP or Down Press ENTER button RDS/RBDS INFORMATION RDS/RBDS information is not shown on the XT1 display and is only available through its RS232 connection. 7/16...
  • Page 8 RA number, prepaid and insured to Xantech. Freight collect shipments will be refused. Risk of loss or damage in transit is borne by the sender. Xantech's warranty does not cover Products which have been received improperly packaged, altered, or physically damaged.
  • Page 9 Xantech products (go to xantech.com/warranty for model numbers) IR Receivers and IR emitters Remote Control Switchers Modules and Connecting Blocks Accessories Speakers Volume Controls and Speaker Selectors MRC, BX, ZPR and Commercial Products Amplifiers Control Interfaces Hand Held Remote Controls...
  • Page 10 Zone ID is factory set at "0", but can be reassigned. <Product ID> For the XT1, the factory default setting for product ID is 10 <Command> Is 1 to N, N may be in one or multiple digits as defined in the first column in the table below <Parameter1>...
  • Page 11 Auto Memory RDS Mode Preset Scan Write/Erase a preset Up/Down Tuning Stereo/Mono mode Get frequency Get Preset number Get Tuning mode Get Receving mode Get Operating Status Purge EEPROM MPU Reset Reserved for future use Program T118 Zone ID Start scan from the current frequency and write each station into preset sequentially Start scan from FM 87.5MHZ to 107.95 then AM 530 to 1690, write each station into preset...
  • Page 12 Examples: 01_10_1_1 Instruct Zone 1 T118 to power off 01_10_1_2 Instruct Zone 1 T118 to power on 01_10_1_3 Instruct zone 1 T118 to power on if it is off, or power off if it is on 12_10_3_21 Zone 12 T118 to tune into preset #21 03_10_4_107_50 Zone 3 T118 to tune to FM 107.50 MHZ 03_10_4_99_55...
  • Page 13 Appendix 2 Discrete IR HEX Codes The carrier frequency: 38KHz. IR Code Code AM/FM 0000 006D 0000 0021 0156 00AB 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0040 0015 0040 0015 0040 0015 0040 0015 0040 0015 0040 0015 0040 0015 0040 0015 0040 0015 0015 0015 0015 0015 0040 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0040 0015 0040 0015 0015 0015 0040 0015 0040 0015 0040 0015 0040 0015...
  • Page 14 0000 006D 0000 0021 0156 00AB 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0015 0040 0015 0040 0015 0040 0015 0040 0015 0040 0015 0040 0015 0040 0015 0040 0015 0015 0015 0040 0015 0040 0015 0040 0015 0040 0015 0015 0015 0015 0015 0015 0015 0040 0015 0015 0015 0015 0015 0015 0015 0015 0015 0040 0015 0040 0015 0040 0015 0000 006D 0000 0021 0156 00AB 0015 0015 0015 0015 0015 0015 0015 0015...
  • Page 15 Notes 15/16...
  • Page 16 ® Xantech Corporation 13100 Telfair Avenue Sylmar, CA 91342 Toll Free Number: 800.843.5465 press 2 for Tech Support Email: Tech Support - tech@xantech.com Version: A 16/16...
