WAC CTR-WDMX-24VDC Installation Instruction

INSTALLATION & FUNCTIONAL INSTRUCTION
Wireless DMX Controller for 24VDC Fixture
CTR-WDMX-24VDC
SAFETY INSTRUCTION
IMPORTANT: NEVER attempt any work without shutting off the electricity.
Always turn off power at fuse box prior to installation to prevent electrical shock.
•
Intended for indoor use. Dry and damp locations.
•
• Install in accordance with national electric code, and local regulations.
• Consult with local inspector to assure compliance.
Do not submerge, IP65 wet rated.
•
• Do not connect the unit directly to 120V AC Line
CAUTION – TO REDUCE RISK OF FIRE AND ELECTRICAL SHOCK
• Read all instructions before installing.
Handle product with care.
•
To reduce the risk of overheating and potential fire risk, make sure all connections are tight.
•
• Do not modify or disassemble product beyond instructions or warranty will be void.
Failure to follow safety warnings, and installation instruction will void the warranty
•
ATTENTION - AFIN DE RÉDUIRE LES RISQUES D'INCENDIE ET DE CHOC ÉLECTRIQUE
• Lire toutes les instructions avant d'installer.
• Manipuler le produit avec soin.
• Afin de réduire le risque de surchauffe et d'incendie potentiel, s'assurer que toutes les connexions sont bien serrées.
• Ne pas modifier ou démonter le produit au-delà des instructions sous peine d'annuler la guarantie.
• Ne pas respecter les avertissements de sécurité et des instructions d'installation annulera la garantie.

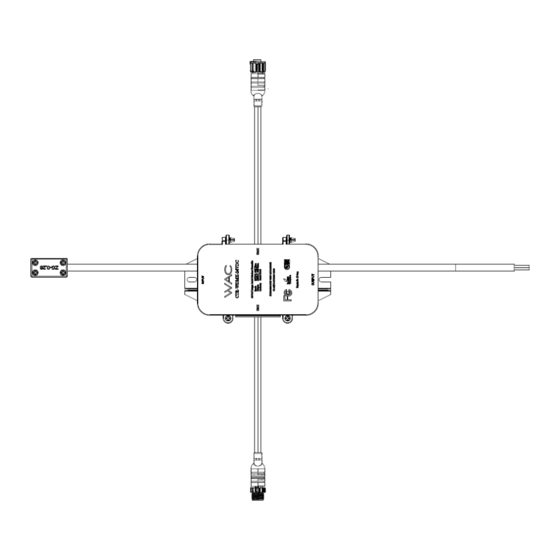

PRODUCT OVERVIEW
Input from 24VDC Power Supply
AiSPiRE.com Headquarters/Eastern Distribution Center
Phone (800) 526.2588 44 Harbor Park Drive
Fax (800) 526.2585 Port Washington, NY 11050
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement
DMX Signal
Wi-Fi Signal
DMX Signal
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Output to 24VDC Fixture
Western Distribution Center
1750 Archibald Ave
Ontario, CA 91761
program. DEC 2023 1.
