INSTALLATION & FUNCTIONAL INSTRUCTION
Wireless DMX LED Controller – 3 CHANNELS
CTR-WDMX-3CH

SAFETY INSTRUCTION

IMPORTANT: NEVER attempt any work without shutting off the electricity.
Always turn off power at fuse box prior to installation to prevent electrical shock.
•
Intended for indoor use. Dry and damp locations.
•
• Install in accordance with national electric code, and local regulations.
• Consult with local inspector to assure compliance.
Do not submerge, or install within 5 feet of a swimming pool.
•
• Do not connect the unit directly to 120V AC Line
CAUTION – TO REDUCE RISK OF FIRE AND ELECTRICAL SHOCK
Read all instructions before installing.
•
Handle product with care.
•
• To reduce the risk of overheating and potential fire risk, make sure all connections are tight.
• Do not modify or disassemble product beyond instructions or warranty will be void.
• Failure to follow safety warnings, and installation instruction will void the warranty
ATTENTION - AFIN DE RÉDUIRE LES RISQUES D'INCENDIE ET DE CHOC ÉLECTRIQUE
• Lire toutes les instructions avant d'installer.
• Manipuler le produit avec soin.
• Afin de réduire le risque de surchauffe et d'incendie potentiel, s'assurer que toutes les connexions sont bien serrées.
• Ne pas modifier ou démonter le produit au-delà des instructions sous peine d'annuler la guarantie.
• Ne pas respecter les avertissements de sécurité et des instructions d'installation annulera la garantie.

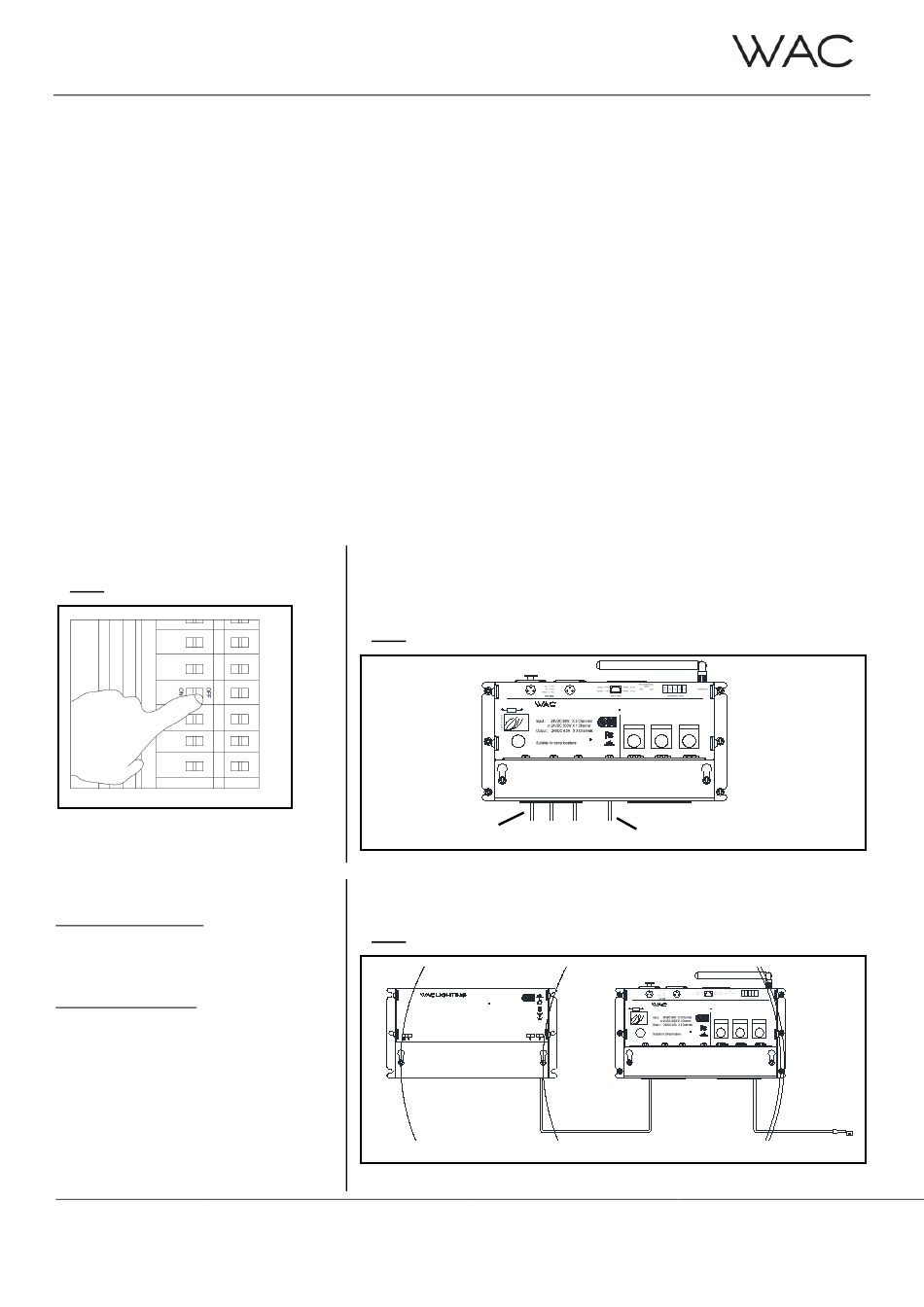

WIRING AND INSTALLATION:

1. Turn Power off at circuit breaker (See FIG. 1)
FIG. 1
3. Pay attention to where input and output are.
Using 300W Power Supply
All output 1-3 will receive power and provide 96W
maximum on each output channel.
Using 96W Power Supply
Output 1 will receive power from Input 1 only.
Output 2 will receive power from Input 2 only.
Output 3 will receive power from Input 3 only.
If the power feeding is on different input, the light
product might not receive power to operate
correctly.
AiSPiRE.com Headquarters/Eastern Distribution Center
Phone (800) 526.2588 44 Harbor Park Drive
Fax (800) 526.2585 Port Washington, NY 11050
WAC Lighting retains the right to modify the design of our products at any time as part of the company's continuous improvement
2. Wireless DMX LED Controller has 2 ways for power feed.
Option A: 3 input power terminals on the left of side. Each input terminal can be
linked with only 24VDC, 96W maximum. (See FIG. 2)
Option B: 1 input power terminal in the center. This center input terminal can be
linked with 24VDC, 300W maximum. (See FIG. 2)
FIG. 2
CCT
RGBWW TUNING
CTR-WDMX-3CH
0 3
9
5 6 7
DMX CONTROL SETTING
CH1 - 96W Max. CH2 - 96W Max.
+ -
3 input of 24VDC.
Each has 96W Max.
4. Mounting remote power supply and Wireless DMX LED Controller at desired
location and wire the power to DMX LED Controller. (See FIG. 3)
FIG. 3
PS-24DC-U96R-S6
Tc
Dimmable Constant Voltage LED Power Supply
Input: 120-277VAC,50/60Hz 1.0A Max PF?0.9
Output: 24VDC 4.0A 96W ( Class 2 )
Dimmable with 0-10V @120-277VAC
Dimmer, if used, must be electronic low-voltage dimmer @120VAC
Made In China
Suitable for Damp Locations
CONVIENT AUX EMPLACEMENTS HUMIDES
Tested To Comply With FCC Standards
0-10V
INPUT Dimmer OUTPUT
For supply connections use wires rated for at least 75?C (167?F)
WT BK PR GY /PI BK RD
GR
LES FILS D'ALIMENTATION 75 ?C MIN
N L
Central Distribution Center
1600 Distribution Ct
Lithia Springs, GA 30122
Reset
DMX ADDRESS SETTING
Digit 1 Digit 2 Digit 3
LED Controller
0-5 0-9 0-9
Tc
INPUT
INPUT
OUTPUT
CH3 - 96W Max. 300W - All CHs
CH1 - 96W Max. CH2 - 96W Max. CH3 - 96W Max.
- - - - - - - -
+ + + - + D + D + D
1 input of 24VDC, 300W Max.
CCT
RGBWW TUNING Reset
CTR-WDMX-3CH
0 3
7 9
5 6
Digit 1
LED Controller
0-5
DMX CONTROL SETTING
Tc
INPUT INPUT
CH2 - 96W Max. 300W - All CHs
CH1 - 96W Max. CH3 - 96W Max. CH1 - 96W Max.
+ - + - + - + - + D -
Western Distribution Center
1750 Archibald Ave
Ontario, CA 91761
program.
DMX ADDRESS SETTING
Digit 2 Digit 3
0-9
0-9
OUTPUT
CH2 - 96W Max. CH3 - 96W Max.
- + D - - + D - -
