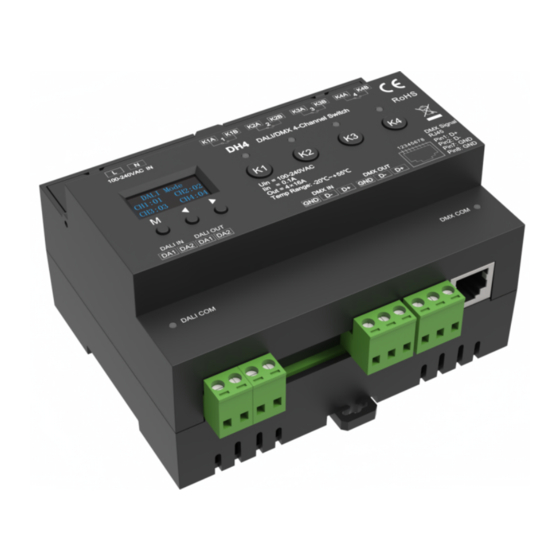

SKYDANCE DH4 Manual

DH4
DALI/DMX 4-Channel Switch
● 4 DALI address, 4 channel 16A
dry contact mains rated relay switch output.
● OLED
dispaly
screen, via button setting
two
work
mode: DALI
mode, DMX
mode.
●
DALI address can be manually assigned and shown in digital display or
automatically assigned by DALI master.
● In accordance with DALI standard protocol IEC 62386-101,102, 208
and in compliance with DALI products from other international incorporation.
● Comply with the DMX512 standard protocols.
● RDM function can realize intercommunication between DMX master and decoder.
● Supports manual switching of individual channels.
● High-inrush specification relays (single pole, normally open).
● Zero cross switching function.
● Can operate as:
4 individual channels (4 × 1)
2 sets of 2 channels (2 × 2)
1 sets of 4 channels (1 × 4)

Technical Parameters

Inpu
t
and
Output
100-240VAC
Input voltage
0.1A
Input current
Input signal
DALI+DMX512
No-load standby
power consumption 0.5W@100V, 1.5W@240V
4W@100V, 4.5W@240V
Full load loss power
High inrush (120 A at 20ms),
Relay contacts
single-pole, single-throw (SPST) relay.
16A resistive load (incandescent lamp)

Max relay
8A Capacitive load (LED dimming driver)
load current
8A inductive load ( uorescent lamp)

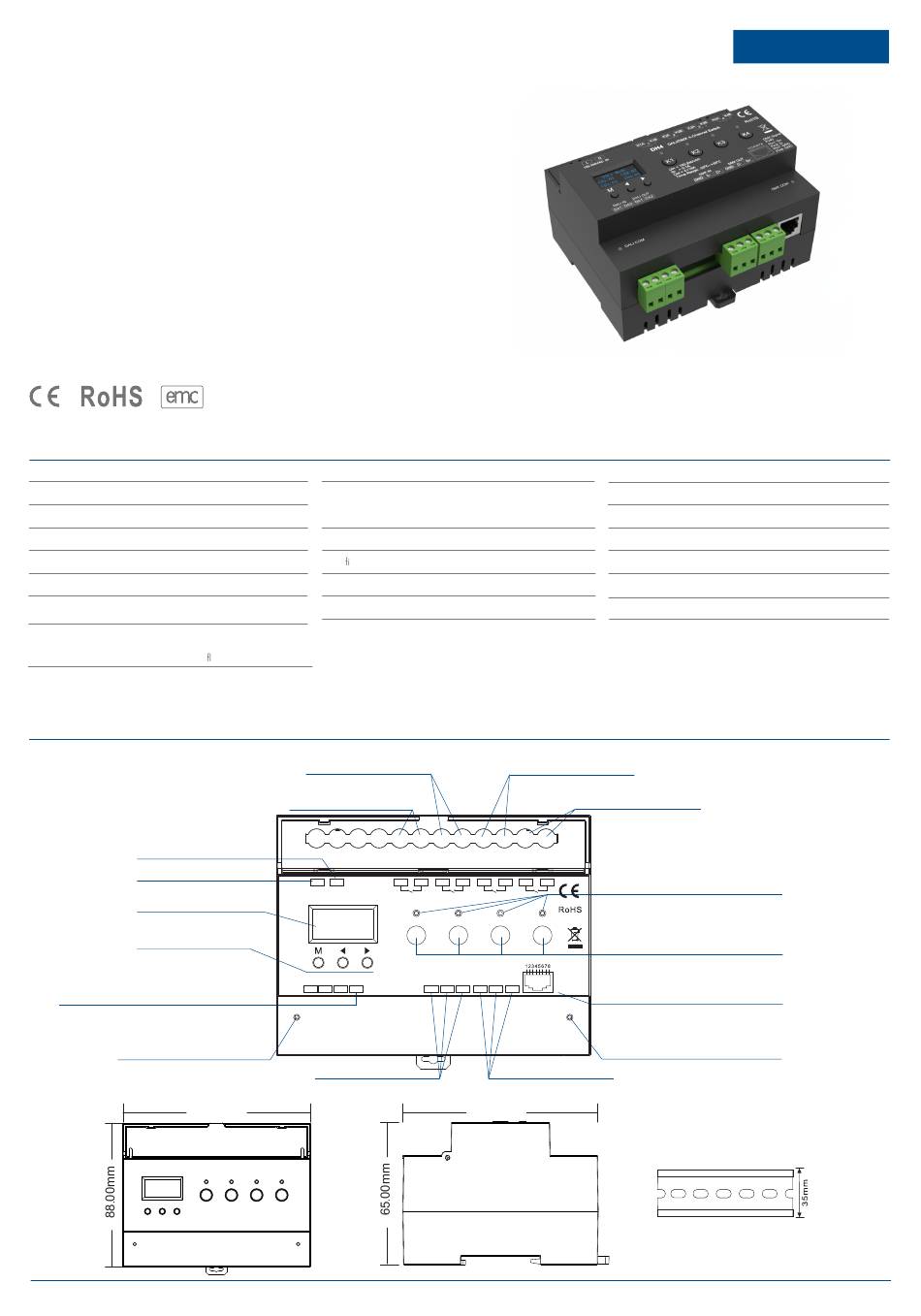

Mechanical Structures and Installations

AC N Input
AC L Input
OLED
dispay screen

Setting
key
Two groups of DALI signal input
DALI bus no need distinguish
plus-minus polarity
DALI
com LED
indicator

115.00mm
User Manual Ver 1.0.0
2023.7
4CH
/ dry contact output / 4 DALI address
/ DMX-RDM / OLED
display / Din Rail
Safety and EMC
ETSI EN 301 489-1 V2.2.3
EMC standard (EMC)
ETSI EN 301 489-17 V3.2.4
Safety standard(LVD)
EN 62368-1:2020+A11:2020
Certi cation
CE,EMC,LVD
Warranty and Protection
Warranty
5 years
2CH dry
contact
output
1CH dry
contact
output
L N K1A K1B K2A K2B
1 2
100-240VAC IN
DH4
DALI/DMX 4-Channel Switch
K1 K2
Uin = 100-240VAC
Iin = 0.1A
Out = 4×16A
Temp Range: -20℃~+55℃
DALI IN DALI OUT DMX IN
DA1 DA2 DA1 DA2 GND D- D+
DALI COM
DMX
input

Environment
Operation temperature
Case temperature (Max.)
IP rating
Package
Size
Gross weight
3CH dry
contact
output
4CH dry
contact
output
4 Channel
ON/OFF
LED
indicator

K3A K3B K4A K4B
3 4
K3 K4
4 Channel manual switch
DMX Signal
RJ45
Pin1: D+
Pin2: D-
DMX OUT
Pin7: GND
GND D- D+
Pin8: GND RJ45 DMX signal input
DMX COM
DMX com
LED
indicator

DMX output
88.00mm
DALI Switch
O O
Ta: -20 C ~ +50 C
O
Tc: +60 C
IP20
W118 x L102 x H71mm
0.345kg
DIN Rail Mounting Size:
TS-35/7.5 or TS-35/15
Page1
