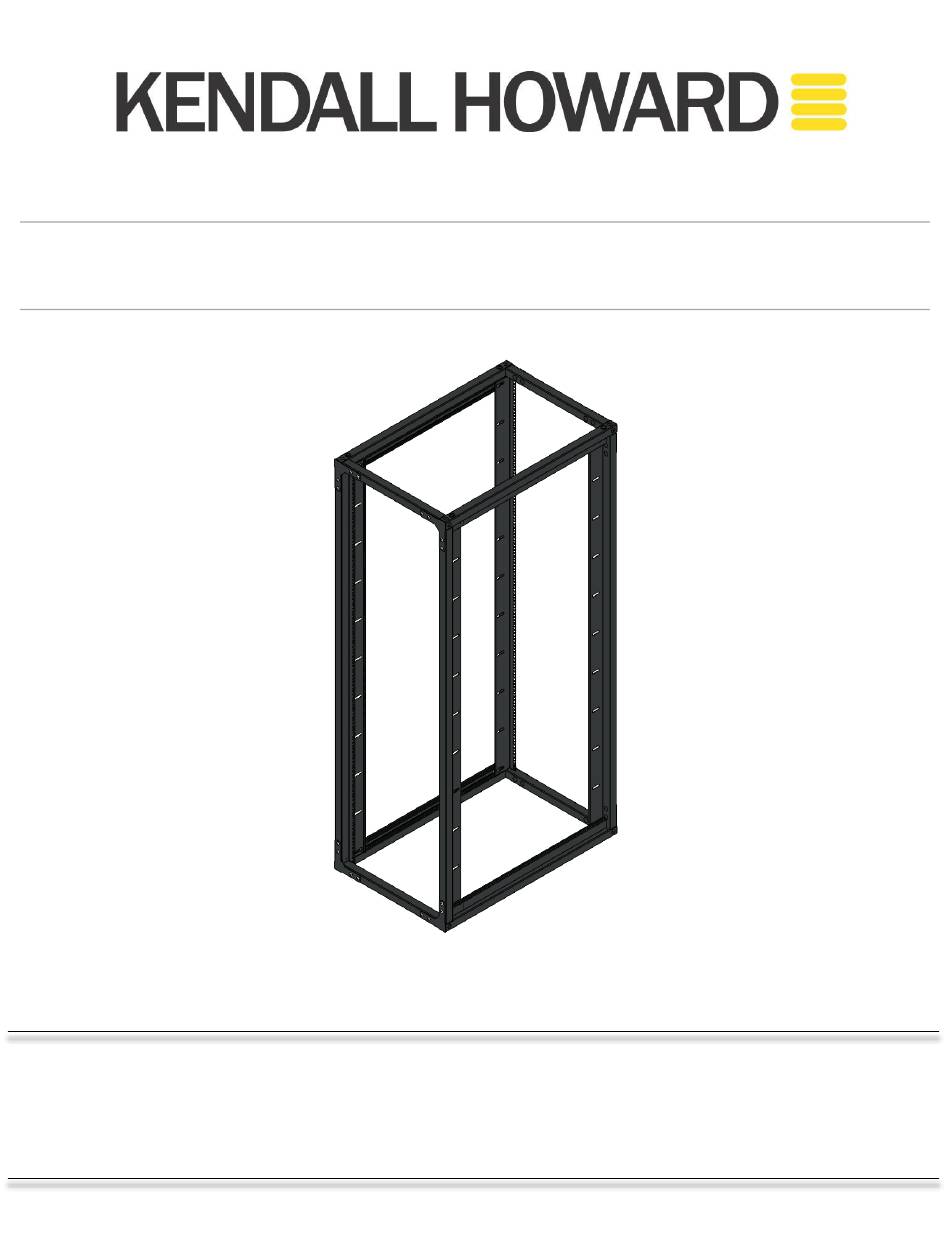

- Page 1 ® 41U KNOCK DOWN 4 POST RACK KIT 1943-3-100-41 For Your Safety Read and understand the entire manual before installing REV A 11/13/2023...
- Page 2 By Web www.kendallhoward.com Disclaimer DISCLAIMER: Kendall Howard LLC. endeavors to make this manual accurate and complete. However, Kendall Howard LLC makes no representations or warranties of any kind, expressed or implied, about whether the use of products contained herein would infringe any rights or the correctness, accuracy or reliability of the information contained herein or that said information covers all details, conditions, or variations.
- Page 3 Kendall Howard LLC assumes no responsibility for the accuracy, completeness or reliability of the information contained in this document. Any reliance placed on the information is therefore strictly at your own risk. Page | 3...
- Page 4 Dimensional Drawing SPECIFICATION Dimensions 23.4 X 36.2 X 75.0 Weight 92 LBS Color BLACK Tools Needed: 1. 3/16” ALLEN KEY WRENCH 3/16” 2. 7/32” ALLEN KEY WRENCH 7/32” Page | 4...
- Page 5 Component Identification Upright Tube (4) Corner Gusset (8) Part Number: A-2901 Part Number: A-2906 Cross Tube (4) Part Number: A-2902 Rack Rail (4) Part Number: A-2907 Side Tube Weldment (4) Part Number: A-2905 3/8-16 X .750 Button Head Screw (8) Part Number: HW-1065 Page | 5...
- Page 6 Component Identification (cont.) 5/16-18 X .750 Button Head Screw (32) 3/8-16 Channel Nut (8) Part Number: H0633 Part Number: hw-cn-001 3/8-16 X 1.00 Button Head Screw (16) Part Number: H0811 Page | 6...
- Page 7 Assembly Instructions Step 1: Attach a side tube weldment to a cross tube as shown using a 3/8-16 X .100 Button Head Screw using a 7/32” Allen wrench. Leave hardware one turn loose. Step 2: Attach the side tube weldment to an upright tube as shown using a 3/8-16 X .100 Button Head Screw using a 7/32”...
- Page 8 Assembly Instructions (cont.) Step 3: Support the tube corner by attaching a corner gusset using four 5/16-18 X .750 Button Head Screws using a 3/16” Allen wrench. Leave hardware one turn loose. Step 4: Repeat steps 1-3 in all eight corners. Once assembled, tighten all hardware using the appropriate Allen wrench.
- Page 9 This Warranty sets forth our responsibilities in the unlikely event of a defect and tells you how to obtain resolution. TERMS OF WARRANTY: Kendall Howard products are warranted to be free of defects in material and workmanship. If any part or portion of the Kendall Howard product fails to conform to the Warranty, Kendall Howard, at its option, will furnish new or factory remanufactured products for repair or replacement of that part.
- Page 10 MISCELLANEOUS: NO SALESPERSON, EMPLOYEE, OR AGENT OF KENDALL HOWARD IS AUTHORIZED TO ADD TO OR VARY THE TERMS OF THIS WARRANTY. Warranty terms may be modified, if at all, only in writing signed by a Kendall Howard officer. This Warranty is effective as of the date of Kendall Howard receipt of full payment and supersedes all previous warranties Kendall Howard reserves the right to supplement or change the terms of this Warranty in any subsequent warranty offering to User or others.
