2.3 Button definition
The main body of the button is made of PC material, and the button part is made
of soft silicone material, all in black. There are three buttons on the K5303 display.
Including power on/mode button , plus button and minus button. In the following
description, button is replaced by the text [MODE]. button is replaced by the text
[UP]. button is replaced by the text [DOWN]
3. User Reminder
Pay attention to safety during use.
1. Do not plug and unplug the display when it is powered on.
2. Avoid bumping the display as much as possible.
3. Avoid looking at buttons or display for long periods while riding.
4. When the display cannot be used normally, it shall be sent for repair as soon as
possible.
4. Installation Instructions
Fix the display on the handlebar and adjust the appropriate angle of view.
When the e-bike is powered off, the display can be completed by inserting the
connector of the display and the connector corresponding to the controller.
5. Operation Introduction
5.1 Power on/off
After hold the [MODE] button, the display starts to work and provides the working
power supply of the controller. In the power on state, hold the [MODE] button
to turn off the power supply of the e-bike. In the power off state, the display no
longer uses the power supply of the battery, and the leakage current of the display
is less than 1uA. If the e-bike is not used for more than 10 minutes, the display will
power off automatically.
3

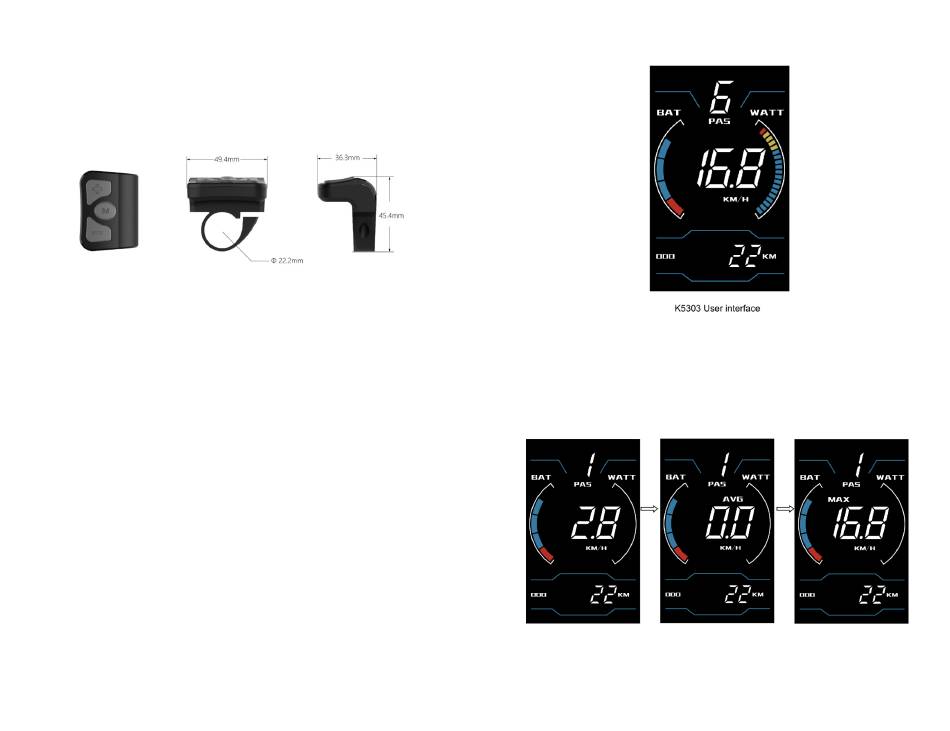

5.2 User interface
5.3 Speed / Single Trip / ODO
5.3.1 Speed
Short press the [MODE] button to switch the speed information, and speed
(real-time speed), AVG (average speed) and max (maximum speed) are displayed
respectively, as shown in the figure.
