Introduction
Dear users, in order to better operate your e-bike, please carefully read the
manual of K5303LCD display before use. We will tell you every detail of display
in the simplest language, including the installation and setting of hardware and
the normal use of the display. At thesame time, it helps you solve the possible
confusion and obstacles.
1.Dimensions
1.1 Material and color
K5303 product housing is made of black Alloy Aluminum & Tempered glass. The
material of the housing is allowed to be used normally at the temperature of - 40
to 80 , and good mechanical properties can be guaranteed.

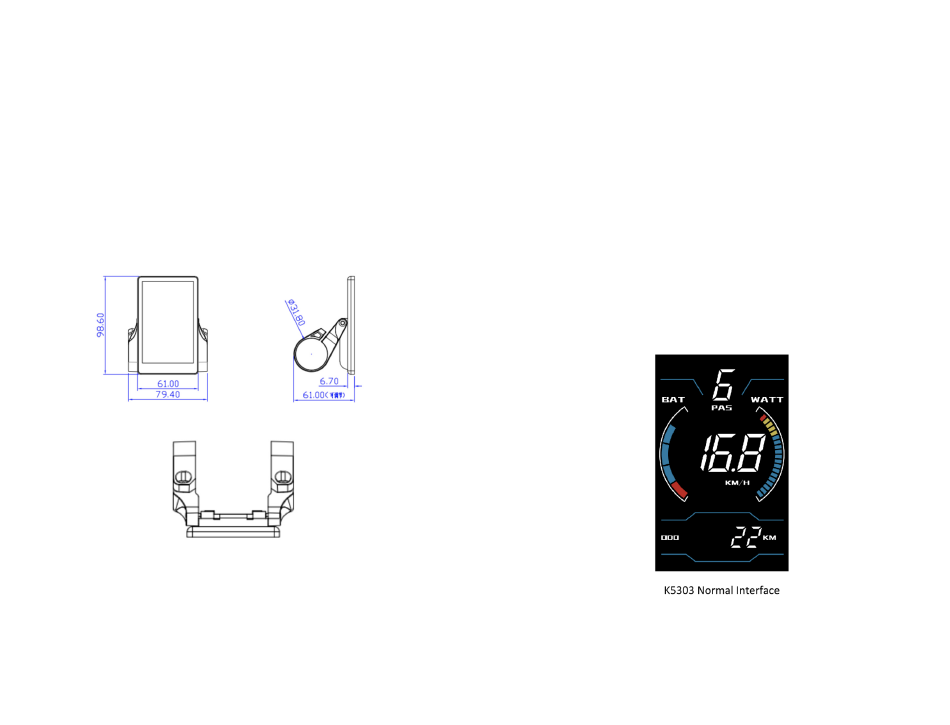

Figure and dimension drawing (unit: mm)
1
2. Function and button definition
2.1 Function description
K5303 provides you with a variety of functions and displays to meet your riding
needs. K5303 displays:
•
Battery capacity
•
Speed (including real-time speed display, maximum speed display and
average speed
•
display),
•
Distance (including trip and ODO),
•
PAS Level selection,
•
Backlight turn on,
•
Headlight turn on / off,
•
6KM/H walk assist
•
Output Power display
•
Error code,
•
Multiple setting parameters. Such as: wheel diameter, speed limit, battery
capacity setting, various PAS level and power assisted parameter setting,
power on password setting, controller current limit setting, etc.
2.2 Display area
2
