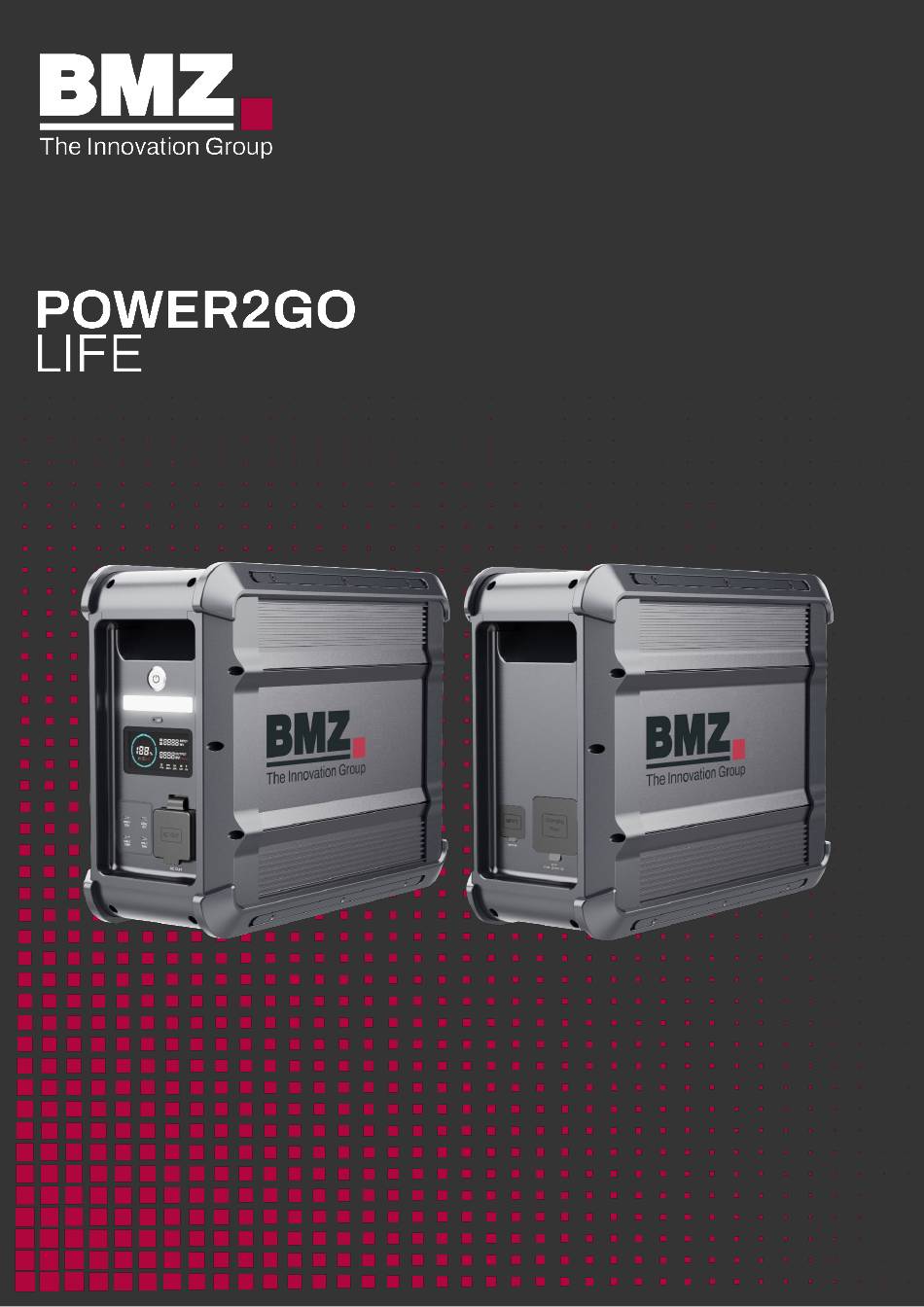

- Page 1 PORTABLE ENERGY STORAGE POWER SUPPLY USER MANUAL V1.0...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. PRODUCT DESCRIPTION ......................3 2. ABBREVIATIONS ........................3 3. TECHNICAL DATA........................4 4.1 Basic parameters .......................... 4 4.2 Working Condition: Discharging ....................4 4.3 Working Condition: Charging ...................... 4 4.4 Connector ............................4 4. PACKAGE CONTENT ........................ 5 5. -
Page 3: Product Description
1. PRODUCT DESCRIPTION POWER2GO is an off-grid portable energy storage power generation system with a built-in long- cycle lithium-ion battery pack and a high-strength aluminum alloy body. POWER2GO is available in two power supply options, either via the matching charging cable or via the MPPT adapter (optional accessories). -
Page 4: Technical Data
3. TECHNICAL DATA 4.1 Basic parameters Capacity 2500 Wh Weight ≈25kg Dimension 475 x 373 x 199 IP Class IP65 – All covers are closed Noise ＜30dB Certification UN38.3, CE ＞3 months Storage 4.2 Working Condition: Discharging AC rated output voltage 230V AC/ 50Hz AC power rating 2500W... -
Page 5: Package Content
4. PACKAGE CONTENT Check the completeness of the goods after receipt and must contain the following parts: ⚫ POWER2GO LIFE ⚫ AC Charging cable ⚫ POWER2GO _LIFE User Manual ⚫ MPPT Adapter ⚫ MPPT Adapter User Manual Note: The MPPT adapter is an optional accessory. -
Page 6: Preliminary Commissioning
5. PRELIMINARY COMMISSIONING Before using POWER2GO for the first time, please do the following: ⚫ Inspect the package for external damage ⚫ Open the top of the package ⚫ Take out the POWER2GO along with the pads ⚫ Check if it is complete or damaged ⚫... -
Page 7: Safety Directives
GENERAL Keep an eye out for these instructions! The focus of BMZ product development is on safety and reliability. Please read this manual for important safety information about your device. This manual is designed to help you be more comfortable and efficient when using this device. Failure to properly set up, use, and care for your device in accordance with these guidelines may result in damage to the device and cause injury to yourself or others. -
Page 8: Operational Instructions
7. Operational Instructions The POWER2GO panel has a total of 4 buttons: 1- the main power button, 2- the AC switch button, 3- the DC switch button, 4- the LED switch button. 7.1 AC Charge In the state of power ON or OFF, you can charge the POWER2GO AC, directly plug in the AC charging cable, the internal circuit starts charging in about 3 seconds of self-test, the display screen is automatically turned on, the icon flashes out, and the power and charging... -
Page 9: Pv Charge
7.2 PV Charge POWER2GO has a PV charging function, it advised that the one to use are those that will match MPPT adapter from BMZ. In the state of power ON or OFF, you can charge the POWER2GO PV, directly plug-in the... -
Page 10: Ac Output
7.4 AC Output POWER2GO _LIFE has 1 AC output ports, with a maximum AC output power of 2500W and a peak power of 4400W. When using AC output to power your device, turn on the main power switch first, at this time the display lights up, the icon flashes out. -
Page 11: Troubleshooting
8. TROUBLESHOOTING Icon Content Details Recovery Methods BAT charge and discharge low Move POWER2GO to a warmer place and Icon flicker temperature protection wait for it to recover automatically In this case, stop using the POWER2GO and wait for its temperature to decrease and then BAT charge and discharge high Icon flicker automatically recover, or reduce the output... -
Page 12: Handle Power2Go Safely
BMZ. It is forbidden to use the power cord when it is defective or the insulation is damaged, and protect the power cord from being crushed, knotted, or damaged by other reasons. -
Page 13: Faqs
POWER2GO has a certain efficiency loss during the charging and discharging process, so the actual discharge capacity of the POWER2GO is lower than the nominal capacity of the user manual. CONTACT • Global https://power.bmz-group.com/de +49 6188 9956-9843 • Service center (EU) +49 6188 9956-9830...
