MEMUP MEDIADISK DNX Series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Feel Design
User Manual
User Manual
MEDIADISK
MEDIADISK
DNX Series
DNX Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MEDIADISK DNX Series and is the answer not in the manual?

Questions and answers

Related Manuals for MEMUP MEDIADISK DNX Series

Summary of Contents for MEMUP MEDIADISK DNX Series

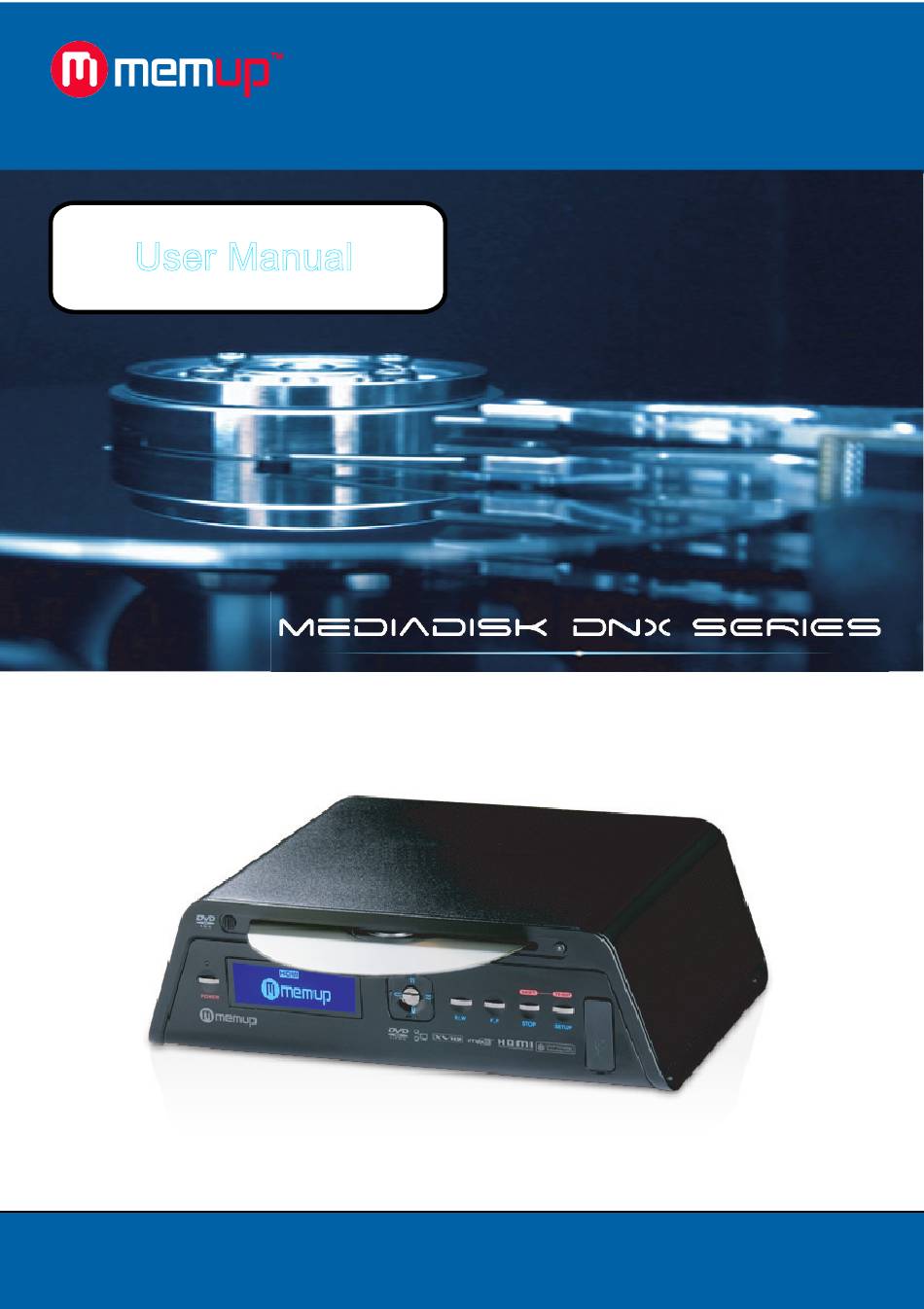

  • Page 1 Feel Design User Manual User Manual MEDIADISK MEDIADISK DNX Series DNX Series...

  • Page 2: Table Of Contents

    USER GUIDE 1. SAFETY AND OTHER INSTRUCTIONS 2. SPECIFICATIONS 3. REMOTE CONTROL 4. TV CONNECTION 5. LAN CONNECTION 6. SETUP MENU 7. MULTIMEDIA PLAY 8. BACKUP FUNCTION AND PLAYLIST 9. NETWORK BASED DATA SHARING WITH PC 10. DNX NETWORK SETTINGS 11.

  • Page 3: Safety And Other Instructions

    Mediadisk DNX Series is a Home Media Center, with a built-in 3.5“ HDD, can record and play media files (movies, audios and photos) through TV and when connected to PC, can also play shared files via network. SAFETY AND OTHER INSTRUCTIONS Please use DNX carefully and read following instructions.

  • Page 4: Specifications

    SPECIFICATIONS Product view: Power (connect to power adapter) Extension IR Receiver (option) ¡ ¢ HDMI Output USB-S (Slave) £ ¤ Composite Output S/PDIF (Coaxial) ¥ ¦ Audio Output (stereo) Component Output (YPbPr) § ¨ S-VIDEO Output S/PDIF (Optical) © USB-M (Host) LAN (wireless LAN is option) Cooling fan - 2 -...

  • Page 5: Remote Control

    REMOTE CONTROL BUTTONS FUNCTIONS [Power] Turn on/off the DNX. [Mute] Mute on/off in media playback. [Setup] Move to setup menu. [TV-out] Change the Video Out mode. [Eject] Eject DVD/CD. [Numeric] English/Number input function in folder creation. [– button] In Photo playback, start/stop photo slideshow. In Audio playback (Play/File Repeat/Folder Repeat/Shuffle).

  • Page 6: Tv Connection

    TV CONNECTION The DNX supports four different types of video output (Component, HDMI, SVHS, CVBS). Composite Cable Connection - Connect DNX and your TV using a composite video cable (Yellow). - Select correct ' AV' as video input on your TV. - Press the ' TV-OUT' button on DNX Remote Control until image appears.

  • Page 7: Lan Connection

    HDMI Cable Connection (Optional) - Connect DNX and your TV using an HDMI Video/Audio cable. - Select ' HDMI' as video input on your TV. Press the ' TV-OUT' button on DNX Remote Control until image appears. You can select display resolution (1080P, 1080i, 720P, 480P) in the AV setting. Digital Audio - Cable Connection 2.6.1 Connection to a 5.1 CH receiver If you use the DNX with a multi-channel decoder/amplifier with optical/coaxial input...

  • Page 8: Setup Menu

    Connection via the Internet IP Router or Hub Connect by using a direct type LAN cable. To use a PC network: 1. Set your PC' s folder sharing and authority 2. The same IP address must be used for both devices. Please refer to Network settings for parameters Connecting to other Terminals An external Infrared receiver for car can make it easier to use DNX outside.
  • Page 9 A/V Menu TV mode PAL/NTSC Screen Change aspect ratio according to the type of TV connected. Analog TV Out Set up composite and S-Video connections with ' VIDEO' . Choose resolution according to your TV features. Digital TV Out Setup the HDMI TV out resolution. Choose Auto/480p/720p/1080i/1080p according to your TV features. Auto is a function which auto-runs the optimum setting of TV.
  • Page 10 IP Setup Users can set up the IP automatically or manually. - Automatic setting: It supports DCHP. When using a router or hub, it is a convenient way to assign IP. - Manual setting: Get assigned IP address, Subnet mask and default gateway from network manager and enter them manually.
  • Page 11 ETC2 Menu More added settings functions. Language Setting Set up the language. Once selected, press ' SETUP" to use the selected language. LCD Color Setting Change front LCD color with letters and background or set it off. Screen Saver Setting Screen saver duration: 5 mn / 10 mn / User Input / Off Current Time Setting Set time and date...

  • Page 12: Multimedia Play

    MULTIMEDIA PLAY Video File Playback The DNX can play back files in HDD, DVD, CD and USB devices. 1. Select and click the device icon on the main menu which includes video files you want to playback. 2. Select folder which includes video files. 3.
  • Page 13 13. Display Location: Move file display location by pressing [Scroll] and arrows [ / / ]. 14. Sleep Mode setting: Turn off at appointed time. Press [Sleep] to enter mode. Select sleep time and press [OK]. 15. Sound Setting. Adjust your preferences DVD play 1.

  • Page 14: Backup Function And Playlist

    BACKUP FUNCTION AND PLAYLIST The DNX supports authentic DVD and DVD backup titles playback. To playback a DVD backup title: 1/ Copy all related DVD files into one folder. 2/ Play VIDEO_TS.IFO file. If there are several DVD Backup titles, each DVD Backup title should be copied into different folders. If there is no VIDEO_TS.IFO file, it may not play back it normally.

  • Page 15: Network Based Data Sharing With Pc

    Playlist You can select and enjoy your own playlist. Select music files and save them in playlist. Making a playlist - In main menu, press [List] and move to playlist menu. - Press [ADD] and move to playlist edit menu. Press [DEL] to delete file in playlist. - Change Playlist Order.
  • Page 16 Data sharing Setup for Windows XP 1. Select folder you want to share and select “Sharing and security” with right mouse button. 2. Check “Sharing this folder on the network” and type “Share Name”. Ex: My Movie WARNING! “Share Name” should be less than 12 characters. 3.
  • Page 17 5. After checking “User cannot change password” and “Password never expires”, keep the other checkboxes unchecked. 6. Go to “Control Panel—Network Connections”. Select “Local Area Connections”. Select “Properties” using right mouse button. WARNING ! • If you cannot see any “Network connections”, click on “Switch to Classic View” on the upper left corner •...
  • Page 18 WARNING! If your PC already has “Obtain IP address automatically” checked and IP automatically assigned from an Internet router or DHCP server, you may not need this setup. If you want a manual IP setup, please obtain an available IP address and subnet mask from the router manufacturer or network administrator.

  • Page 19: Dnx Network Settings

    DNX NETWORK SETTINGS IP through SETUP menu. 1. IP setting means IP to which the DNX gets assigned. - If using IP router/Hub, each device gets automatically assigned. - If a server manager assigns IP, set up IP, subnet mask and gateway by ' manual settings' 2.

  • Page 20: Specifications

    SPECIFICATIONS CONTENT FORMAT SUPPORTED: DVD player DVD ROM (DVD, SVCD, VCD, Audio CD, Data CD) Video format mpg, ifo, vob, tp, ts, mp4, avi, asf, wmv Video codecs MPEG 1/2/4, DivX, XVID, WMV9 Photos JPEG / JPG Audio codecs MP3, OGG, WMA, WAV, AAC and AC3 Compression rate between 32 kbps and 320 kbps VIDEO OUTPUT SPECIFICATION...

  • Page 21: Troubleshooting

    Please refer to Network settings part and follow step by step It could depend on your Operating system, for other OS, please check our FAQ in www.memup.com Make sure your personal firewall is deactivated or correctly set to function with DNX...
